EIP006C0150LSD1L (150mA 6W)


Only 3 left in stock

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Only 3 left in stock

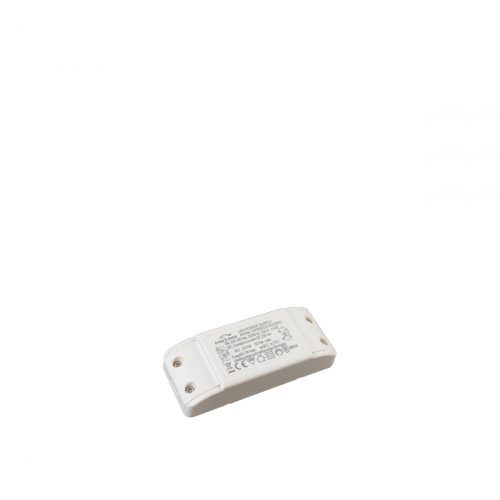

LED power supply for 150 mA constant current
26.5…42 Vdc, 4…6.3 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable

Electrical Data

Input Voltage (nominal) 220…240 Vac
Input Voltage (range) 198…264 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) > 0.9   220…240 Vac
Input Current 0.05 A max.  Full Load, 198 Vac
Inrush Current 10 A max.  Full Load, 240 Vac
Leakage Current < 0.5 mA  240 Vac
Output Voltage 26.5…42 Vdc
Output Current 150 mA
Output Power (nominal) 4…6.3 W
Efficiency ≥ 74 %  Full Load, 240 Vac
Life Time > 30,000 h  50 °C
Dimming Mode Triac (leading & trailing edge)
Dimming Range 10%… 100%


Operating Condition

Operating Ambient Temperature (ta) -10…+50 °C
Max. Surface Temperature (tc) 75 °C
Permitted rel. Humidity 10…90 %
Protection Class II
Type of Protection IP20



Short Circuit Protection Yes *
Overload Protection Yes *  105…120 %
Overvoltage Protection Yes *  >30 Vdc
Overheating Protection Yes *

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.


Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval Marks CE
RoHS Compliant Yes

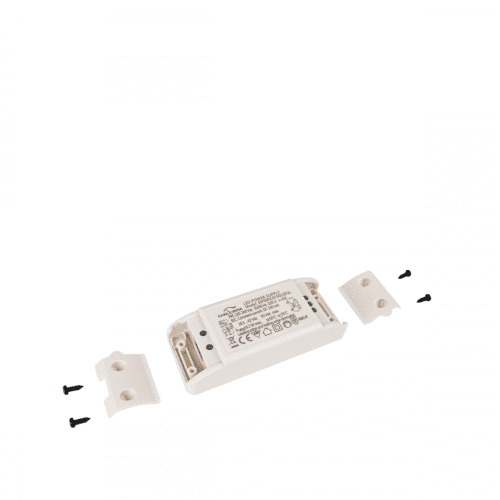

Type of Installation Independent installation
Type of Connection Screw terminal
Cable Cross-Section, input side 0.75…1.5 mm²
Cable Cross-Section, output side 0.75…1.5 mm²
Cable Preparation Length, input side 6…8 mm
Cable Preparation Length, output side 6…8 mm
