| Menge | Preis |
| 1 - 4 | 6,93€ |
| 5 - 9 | 6,69€ |
| 10 - 19 | 6,49€ |
| 20 + | 6,29€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU

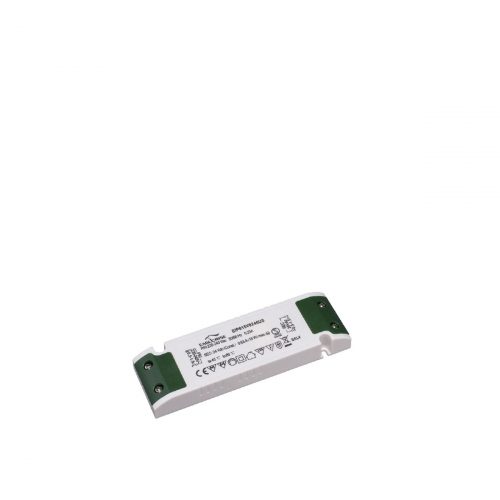

EIP015V0240US (24V 15W)
6,93€
In stock
In stock
Description
LED Trafo 24V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
EIP015V0240US
LED power supply for 24 Vdc constant voltage
0.63 A (15 W) max., IP20, independent installation, non-dimmable
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 176…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | 0.5 220…240 Vac |
| Input Current | 0.23 A max. Full Load, 176 Vac |
| No-load loss | ≤0.3 W |
| Inrush Current | 20 A max. |
| Leakage Current | < 0.5 mA 240 Vac |
| Output Voltage | 24 Vdc |
| Output Current | 0…0.63 A |
| Output Power (nominal) | 15 W max. |
| Efficiency | ≥ 84 % |
| Life Time | > 30,000 h 45 °C |
| Dimmable | No |
Operating Condition
LED Trafo 24V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
| Operating Ambient Temperature (ta) | -10…+45 °C |
| Max. Surface Temperature (tc) | 80 °C |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 105…150 % |
| Overvoltage protection | Yes * >25.2 Vdc |
| Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 EN 55015, EN 61547 |
| Approval Marks | CE, SEMKO (Intertek) |
| RoHS Compliant | Yes |
Installation
LED Trafo 24V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-section, input side | 0.75…1.5 mm² |
| Cable Cross-section, output side | 0.75…1.5 mm² |
| Cable Preparation length, input side | 6…8 mm |
| Cable Preparation length, output side | 6…8 mm |
Dimension

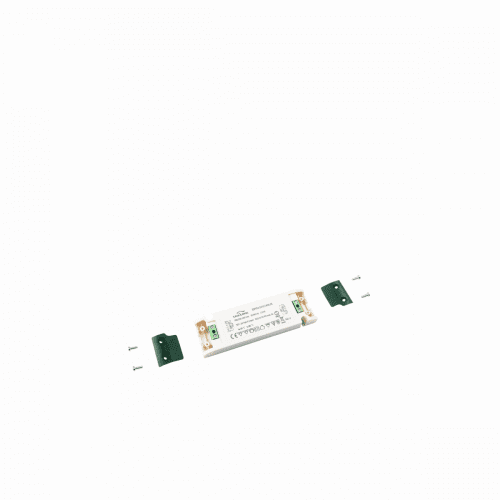

Connection
LED power supply EIP015V0240US: LED transformer constant voltage, input 220 – 240 V (AC), output 24 V (DC), non-dimmable, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 15 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 130 x 40 x 16 mm (L x W x H), ambient temperature (ta) -10 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device equipped with overload protection, short circuit protection, overvoltage protection and overheating protection.
Quality: CE, Intertek, MM approval; Service life > 30.000 hours; Surface temperature (tc) 80°C.
huatec led transformer power supply driver transformator 24v 24 volt dc constant voltage same voltage super slim 15w 15 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 24V 15W constant voltage slim.
For business customer, who wants to order our porducts in large quantities or learn more about our new products, please contact us and download our product catalog.
