EIP009C0300LSD1L (300mA 9W)

Out of stock

(0 customer reviews)
MengePreis
1 - 48,99
5 - 98,29
10 - 197,59
20 +6,99

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Out of stock

Description

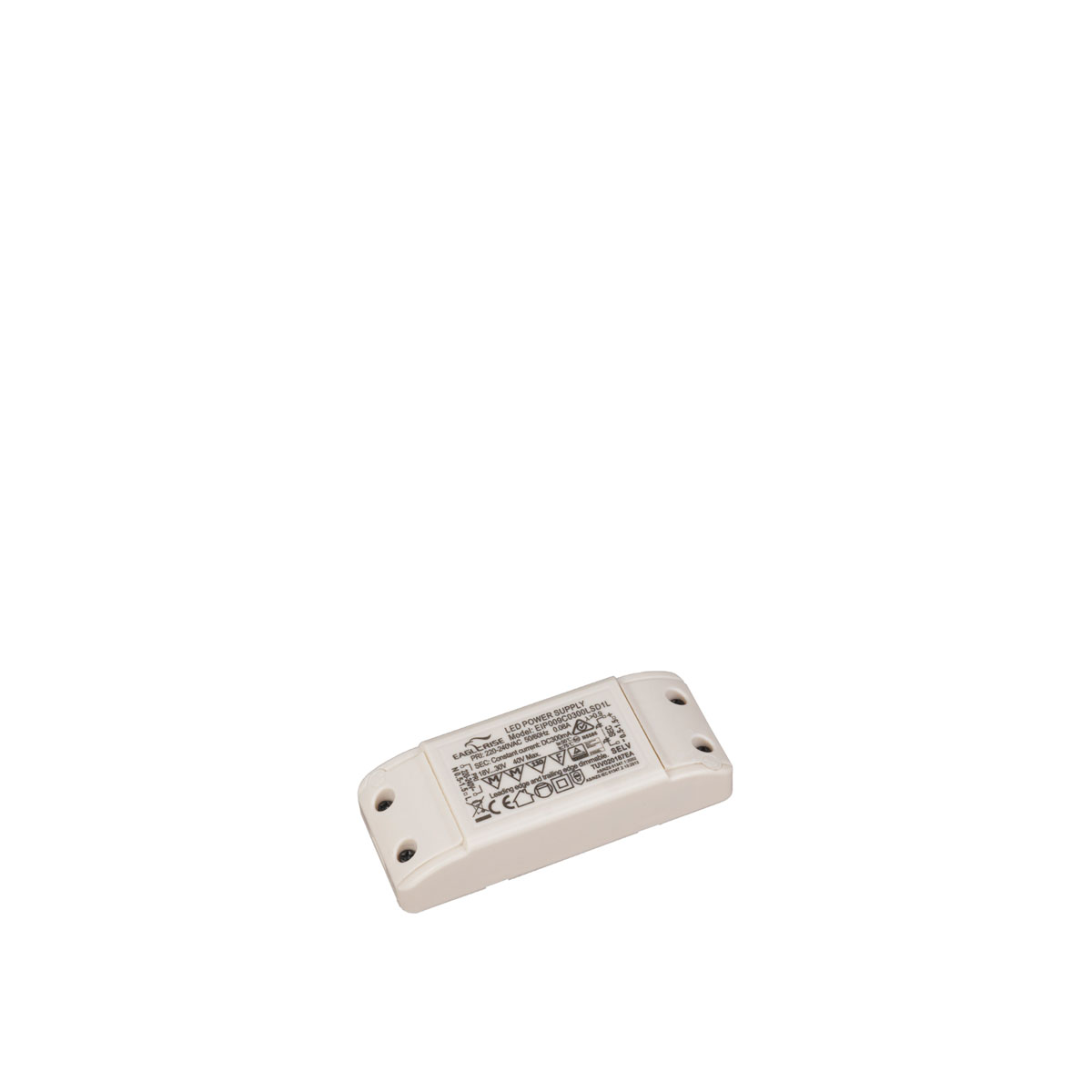

EIP009C0300LSD1L

LED power supply for 300 mA constant current
18…30 Vdc, 5.4…9 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable

Electrical Data

Input Voltage (nominal)220…240 Vac
Input Voltage (range)198…264 Vac
Mains Frequency50/60 Hz
Power Factor (λ)> 0.9   220…240 Vac
Input Current0.08 A max.  Full Load, 198 Vac
Inrush Current10 A max.  Full Load, 240 Vac
Leakage Current< 0.5 mA  240 Vac
Output Voltage18…30 Vdc
Output Current300 mA
Output Power (nominal)5.4…9 W
Efficiency≥ 84 %
Life Time> 30,000 h  50 °C
Dimming ModeTriac (leading & trailing edge)
Dimming Range10%…100%



Operating Condition

Operating Ambient Temperature (ta)-10…+50 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. Humidity10…90 %
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *  105…120 %
Overvoltage ProtectionYes *  >40 Vdc
Overheating ProtectionYes *


(*) The output shut off and will be resumed after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval MarksCE, TÜV Rheinland
RoHS CompliantYes

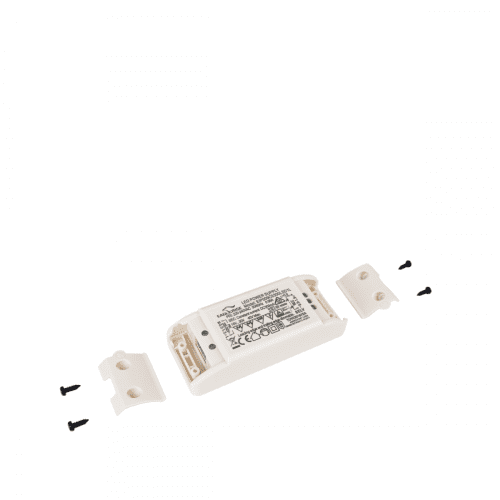

Installation

Type of InstallationIndependent installation
Type of ConnectionScrew terminal
Cable Cross-Section, input side0.75…1.5 mm²
Cable Cross-Section, output side0.75…1.5 mm²
Cable Preparation Length, input side6…8 mm
Cable Preparation Length, output side6…8 mm



Dimension



Connection
