ELP012C0350LSD1 (350mA 12W)

10,89

Out of stock

Price on request for order quantity from 100 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Out of stock

Description

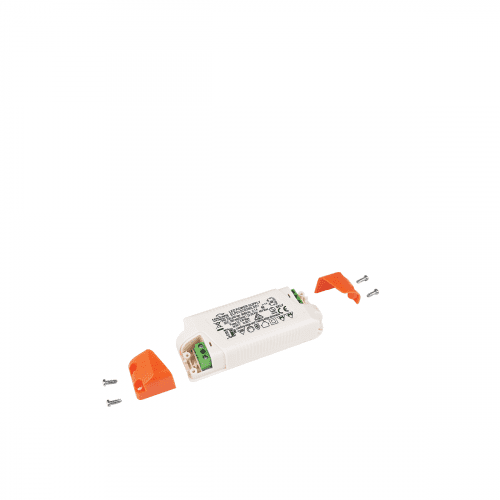

ELP012C0350LSD1

LED power supply for 350 mA constant current
23…35 Vdc, 8…12 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable

Electrical Data

Input Voltage (nominal) 220…240 Vac
Input Voltage (range) 198…264 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) > 0.9   220…240 Vac
Input Current 0.01 A max.
Inrush Current 10 A max.  Full Load, 240 Vac
Leakage Current < 0.5 mA  240 Vac
Output Voltage 23…35 Vdc
Output Current 350 mA
Output Power (nominal) 8…12 W
Efficiency ≥ 80 %
Life Time > 30,000 h  50 °C
Dimming Mode Triac (leading & trailing edge)
Dimming Range 10%…100%



Operating Condition

Operating Ambient Temperature (ta) -10…+50 °C
Max. Surface Temperature (tc) 80 °C
Permitted rel. Humidity 10…90 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overload Protection Yes *  105…120 %
Overvoltage Protection Yes *  >46 Vdc
Overheating Protection Yes *


(*) The output shut off and will be resumed after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval Marks CE, SEMKO (Intertek)
RoHS Compliant Yes



Installation

Type of Installation Independent installation
Type of Connection Screw terminal
Cable Cross-Section, input side 0.75…1.5 mm²
Cable Cross-Section, output side 0.75…1.5 mm²
Cable Preparation Length, input side 6…8 mm
Cable Preparation Length, output side 6…8 mm



Dimension



Connection
