LS-20-500 TRIAC LI (500mA 20W)

Only 3 left in stock

Menge Preis
1 - 4 11,69
5 - 9 10,99
10 - 19 10,49
20 + 9,99

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Only 3 left in stock

Description

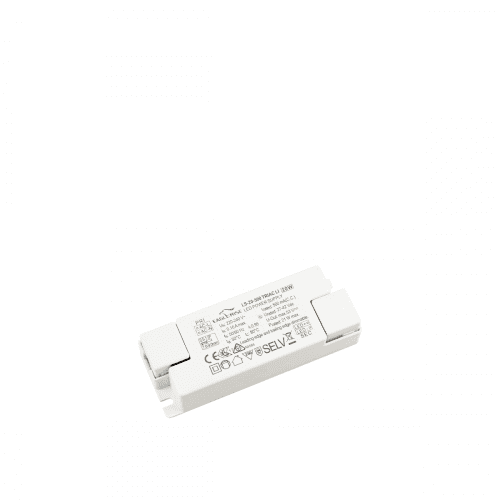

LS-20-500 TRIAC LI

LED power supply for 500 mA constant current
27…42 Vdc, 13.5…21 W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable
Flicker-free according to IEEE 1789

Electrical Data

Input Voltage (nominal) 220…240 Vac
Input Voltage (range) 198…264 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) ≥0.95   Full Load, 230 Vac
Input Current 0.16 A max.  Full Load, 198 Vac
Inrush Current 10 A max.  Full Load, 230 Vac
Leakage Current < 0.7 mA  240 Vac
Output Voltage 27…42 Vdc
Output Current 500 mA
Output Power (nominal) 13.5…21 W
Efficiency ≥ 83 %
Life Time > 30,000 h  50 °C
Dimming Mode Triac (leading & trailing edge)
Dimming Range 10%… 100%



Operating Condition

Operating Ambient Temperature (ta) -20…+50 °C
Max. Surface Temperature (tc) 80 °C
Permitted rel. Humidity 20…90 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overload Protection Yes *  105…120 %
Overvoltage Protection Yes *  >53 Vdc


(*) The output shut off and will be resumed after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
EN 62384
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval Marks CE, ENEC
RoHS Compliant Yes



Installation

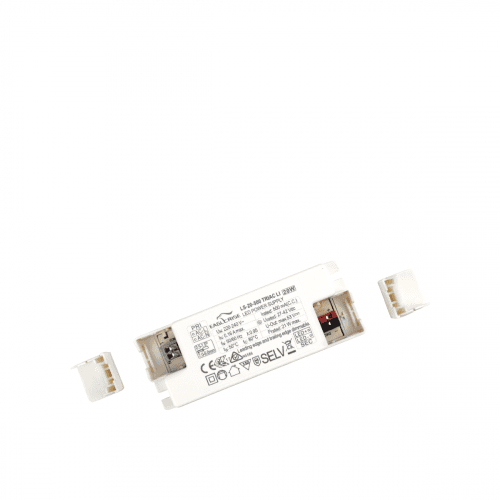

Type of Installation Independent installation
Type of Connection Spring-loaded terminal
Cable Cross-Section, input side 0.5…1.5 mm²
Cable Cross-Section, output side 0.5…1.5 mm²
Cable Preparation Length, input side 7…9 mm
Cable Preparation Length, output side 7…9 mm



Dimension



Connection
