| Menge | Preis |
| 1 - 4 | 13,39€ |
| 5 - 9 | 12,99€ |
| 10 - 19 | 12,49€ |
| 20 + | 11,99€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU

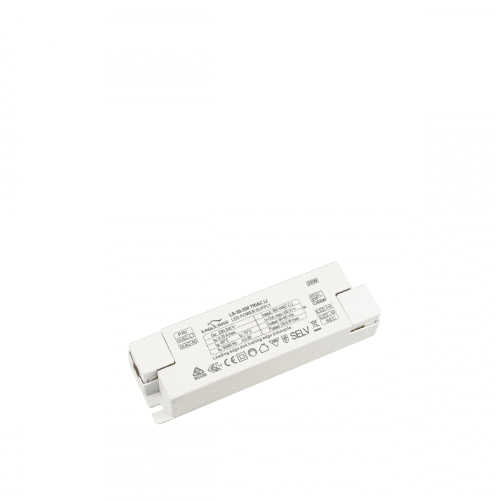

LS-30-350 TRIAC LI (350mA 30W)
13,39€
In stock
In stock
Description
LS-30-350 TRIAC LI
LED power supply for 350 mA constant current
11…17 Vdc, 3.9…6W, IP20, independent installation
TRIAC (leading & trailing edge) dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input Voltage (range) | 198…264 Vac |
| Rated input voltage (AC) | 220…240 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | > 0.95 Full Load, 230 Vac |
| Input Current | 0.25 A max. Full Load, 198 Vac |
| Inrush Current | 30 A max. Full Load, 230 Vac |
| Leakage Current | < 0.7 mA 240 Vac |
| Output Voltage | 60…85 Vdc |
| Output Current | 350 mA |
| Output Power (nominal) | 21…29.8 W |
| Efficiency | ≥ 86 % |
| Life Time | > 30,000 h 45 °C |
| Dimming Mode | Triac (leading & trailing edge) |
| Dimming Range | 10%… 100% |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 70 °C |
| Permitted rel. Humidity | 20…90 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 103…120 % |
| Overvoltage Protection | Yes * >25 Vdc |
(*) The output shut off and will be resumed after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 62384 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 EN 55015, EN 61547 |
| Approval Marks | CE, ENEC |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.5…1.5 mm² |
| Cable Cross-Section, output side | 0.5…1.5 mm² |
| Cable Preparation Length, input side | 7…9 mm |
| Cable Preparation Length, output side | 7…9 mm |

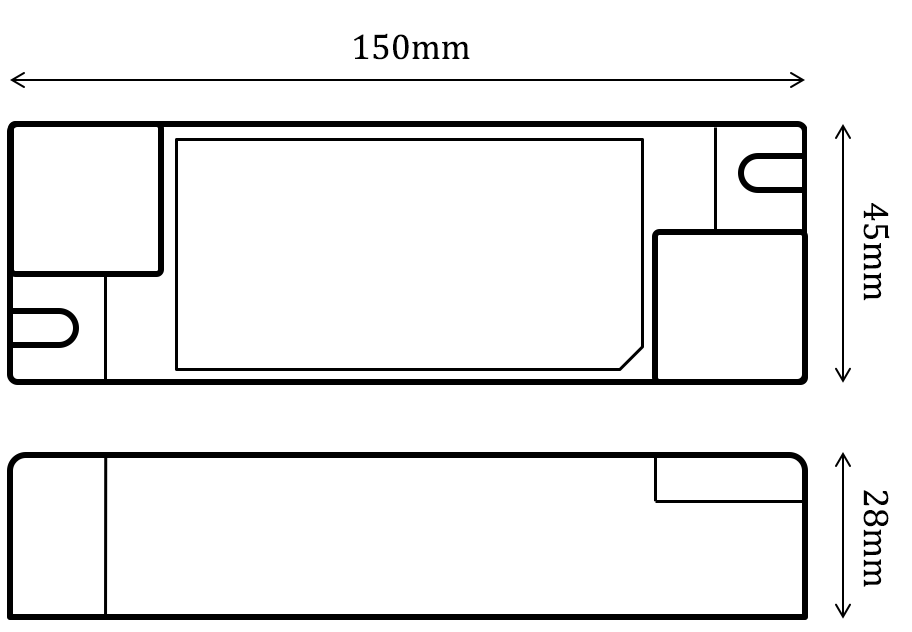

Dimension
Connection
