ELP10X3LSD (700mA 30W)
11,69€
Out of stock
Out of stock
Description

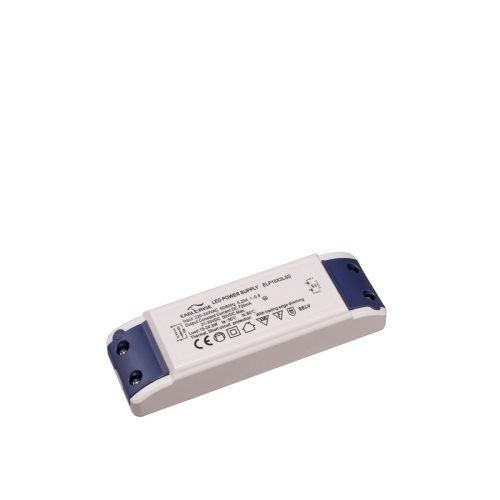

ELP10X3LSD
LED power supply for 700 mA constant current
21…35 Vdc, 15…24.5 W, IP20, independent installation
TRIAC (trailing edge) dimmable
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 176…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | > 0.9 |
| Input Current | 0.2 A max. |
| Inrush Current | 8 A max. |
| Leakage Current | < 0.5 mA |
| Output Voltage | 21…35 Vdc |
| Output Current | 700 mA |
| Output Power (nominal) | 15…24.5 W |
| Efficiency | ≥ 80 % |
| Life Time | > 50,000 h 25 °C |
| Dimming Mode | Triac (trailing edge) |
| Dimming Range | 10%…100% |
Operating Condition
| Operating Ambient Temperature (ta) | +5…+50 °C |
| Max. Surface Temperature (tc) | 80 °C |
| Permitted rel. Humidity | 10…90 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shut off and will be resumed after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 60598-1, EN 60598-2-6 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
| Approval Marks | CE |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |
Dimension
Connection
