Price on request for order quantity from 200 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
ELP3X1LS (350mA 3,6W)
Out of stock
| Menge | Preis |
| 1 - 19 | 5,79€ |
| 20 - 39 | 4,59€ |
| 40 + | 4,29€ |
Out of stock
Description

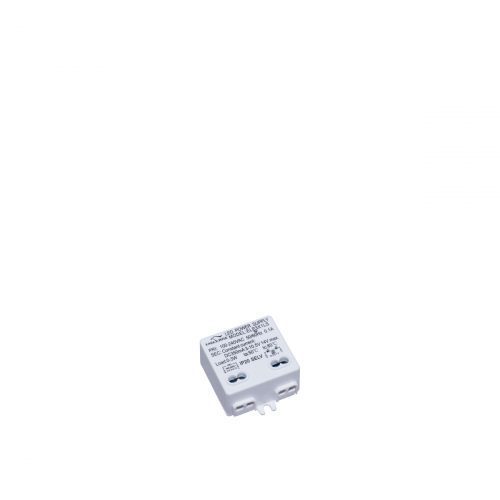

ELP3X1LS
LED power supply for 350 mA constant current
3…10.5 Vdc, 1…3.6 W, IP20, built-in installation, non-dimmable
Electrical Data
| Input Voltage (nominal) | 100…240 Vac |
| Input Voltage (range) | 90…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.5 Full Load, 230 Vac |
| Input Current | 0.1 A max. |
| No-Load Loss | < 0.3 W max. |
| Inrush Current | 15 A max. Full Load, 240 Vac |
| Leakage Current | < 0.5 mA |
| Output Voltage | 3…10.5 Vdc |
| Output Current | 350 mA |
| Output Power (nominal) | 1…3.6 W |
| Efficiency | ≥ 74 % |
| Life Time | > 30,000 h 25 °C |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -5…+45 °C |
| Max. Surface Temperature (tc) | 80 °C |
| Permitted rel. Humidity | 10…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 60598-1, EN 60598-2-6 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
| Approval Marks | CE |
| RoHS Compliant | Yes |
Installation
| Type of installation | Built-in installation |
| Type of connection | Screw terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |
Dimension
Connection
