LS-10M-DALI2 (100…440mA 10W)

Only 3 left in stock

(0 customer reviews)
MengePreis
1 - 415,99
5 - 915,59
10 - 1915,29
20 +14,99

Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Only 3 left in stock

Description

LS-10M-DALI2

LED power supply with adjustable output current
14 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789

Electrical Data

Input Voltage (range)198…264 Vac
Input Voltage (AC)220…240 Vac
Input Voltage (DC)200…240 Vac
Mains Frequency50/60 Hz
Power Factor (λ)0.80(230Vac, 100mA/40V)  Full Load
0.90 (230Vac, 180mA/40V)  Full Load
0.95 (230Vac, 270mA/40V,350mA/36V, 440mA/27V)  Full Load
Input Current0.07 A max.  230Vac
Inrush Current8 A max.
Output Voltage55 Vdc max.
Output Current100 mA, 9-40 Vdc, 1.0-4.0 W
180 mA, 9-40 Vdc, 1.6-7.2 W
270 mA, 9-40 Vdc, 2.4-10.8 W
350 mA, 9-36 Vdc, 3.2-12.6 W
440 mA, 9-27 Vdc, 4.0-11.9 W
Output Power (nominal)12.6 W max.
Efficiency≥ 79 %  Full Load, 230 Vac
Life Time5 years  Ta Full Load
DimmingDALI-2 (0-100%)
Primary PUSH (2-100%)



Operating Condition

Operating temperature range (ta)-25…+50 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. Humidity10…95 %
Protection ClassI
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *
Overvoltage protectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
EN 62493, EN60598-1
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 55015, EN 61547
Standards (DALI)IEC62386-102, IEC62386-207 DT6
Approval MarksCE
RoHS CompliantYes



Installation

Type of InstallationIndependent installation
Type of ConnectionSpring-loaded terminal
Cable Cross-Section, input side0.75…1.5 mm²
Cable Cross-Section, output side0.75…1.5 mm²
Cable Preparation Length, input side6…8 mm
Cable Preparation Length, output side6…8 mm



Dimension

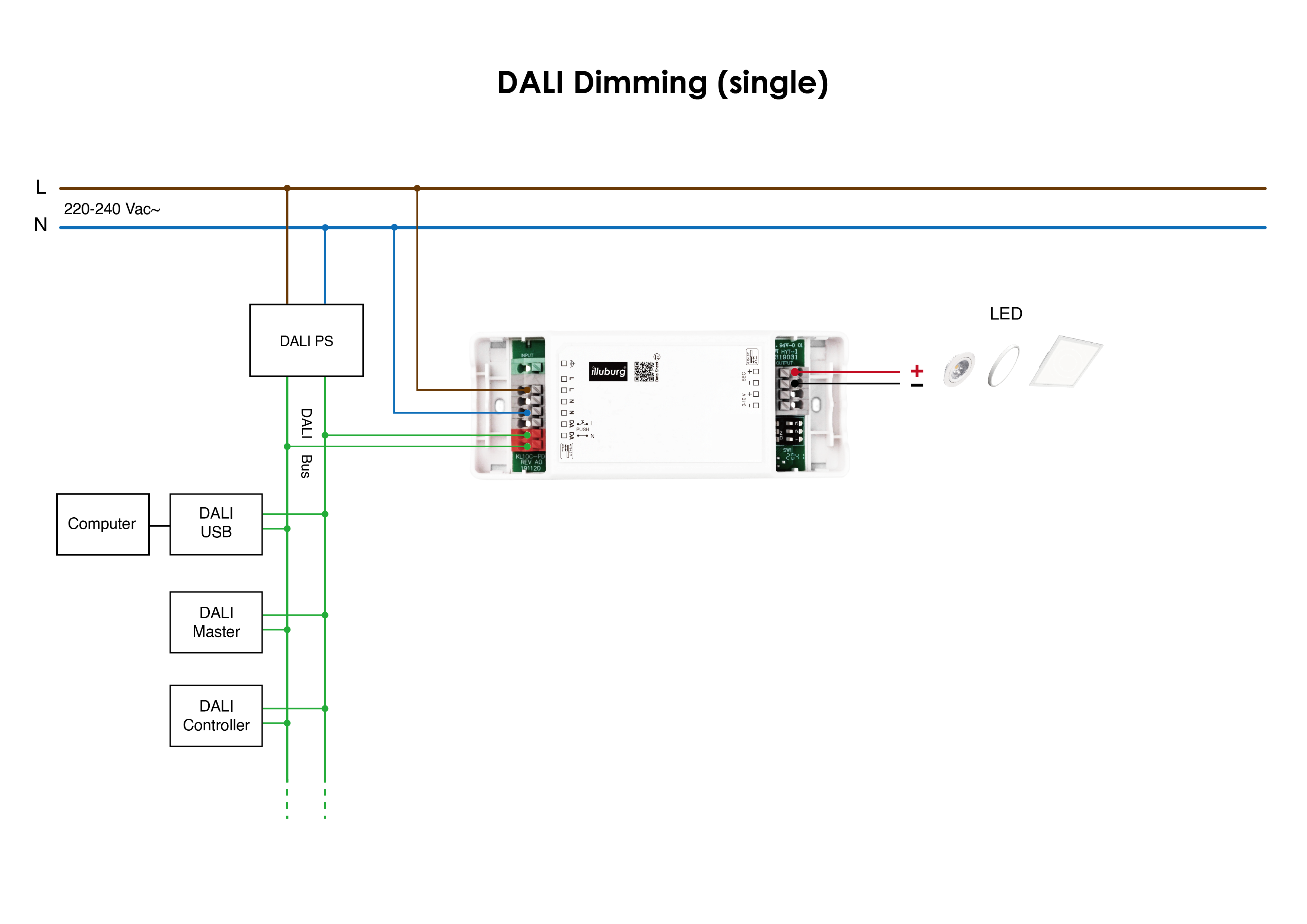

Connection
