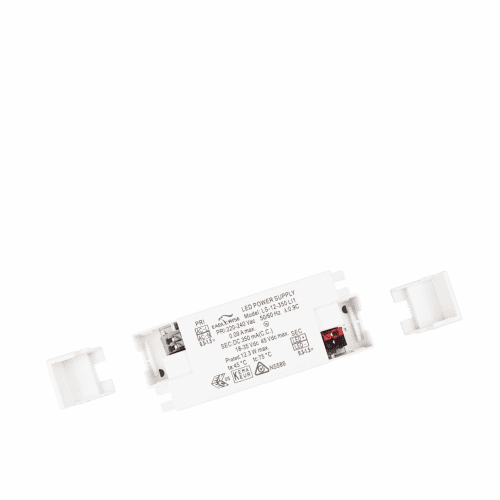

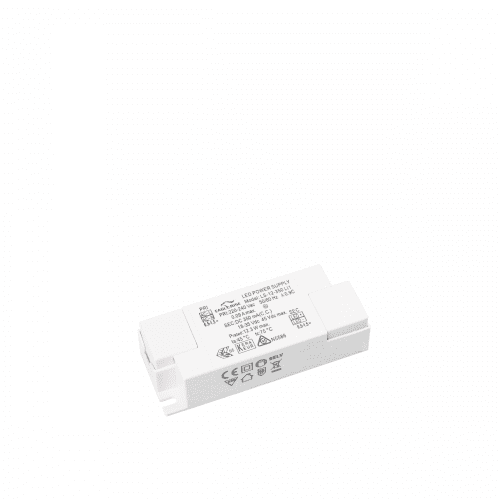

LS-12C350 (350mA 12W)

6,93

In stock

(0 customer reviews)
MengePreis
1 - 46,93
5 - 96,79
10 - 196,59
20 +6,29



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LED Trafo 12W 350mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator

LS-12C350

LED power supply for 350 mA constant current
22…40 Vdc, 7.7…14 W max., IP20, independent installation, non-dimmable
Flicker-free according to IEEE 1789



Electrical data

Rated input voltage220…240 Vac
Range of input voltage (AC)198…264 Vac
Range of input voltage (DC)176…280 Vac
Mains Frequency50/60 Hz
Power factor (λ)0.85C   Ful lload, 220…240 Vac
Input current0.12 A max.   Full load, 198 Vac
Inrush current10 A max.    300μs, 230V, Full load
Leakage current< 0.7 mA   240 Vac
Output voltage22…40 Vdc
Output current350 mA
Output power (nominal)7.7…14 W max.
Efficiency≥ 83 %
Life time> 30,000 h    45°C
DimmableNo

LED Trafo 12W 350mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator

Operating condition

Operating temperature range (ta)-20…+45 °C
Max. Surface temperature (tc)75 °C
Permitted rel. humidity20…90 %
Protection classII
Type of protectionIP20



Protection

Short circuit protectionYes *
Overload protectionYes *   103…140 %
Overvoltage protectionYes *   >41.4 Vdc


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.

LED Trafo 12W 350mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator

Standards & Certificates

NormenEN 61347-1, EN 61347-2-13, EN 62384
EN 62493, EN 55015, EN 61547
EN 61000-3-2, EN 61000-3-3
Approval marksCE, UKCA
RoHS compliantYes



Installation

Type of installationIndependent installation
Type of connectionSpring-loaded terminal
Cable cross-section, input side0.5…1.5 mm²
Cable cross-section, output side0.5…1.5 mm²
Cable preparation length, input side6…8 mm
Cable preparation length, output side6…8 mm



Dimension



Connection
