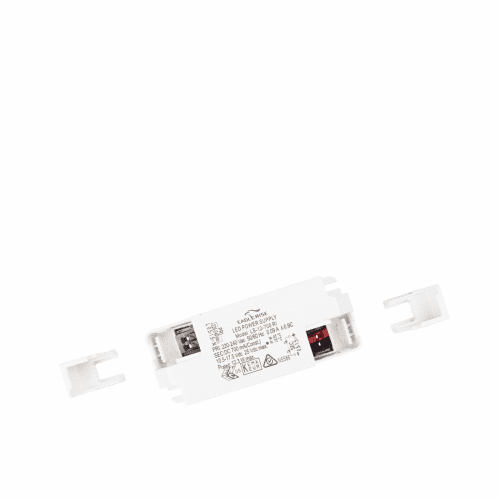

LS-12-700 RI
LED power supply for 700 mA constant current
10.5…17.5 Vdc, 7.4…12.3 W, IP20, independent installation, non-dimmable
Electrical Data
Input voltage (range) | 176…264 Vac |
Rated input voltage (AC) | 220…240 Vac |
Rated input voltage (DC) | 176…280 Vdc |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.9 220…240 Vac |
Input Current | 0,09 A max. Full Load, 176 Vac |
Inrush Current | 15 A max. Full Load, 240 Vac |
Leakage Current | < 0.5 mA 240 Vac |
Output Voltage | 10.5…17.5 Vdc |
Output Current | 700 mA |
Output Power (nominal) | 7.4…12.3 W |
Efficiency | ≥ 82 % |
Life Time | > 50,000 h 45 °C |
Dimmable | No |
Operating Condition
Operating Ambient Temperature (ta) | -20…+45 °C |
Max. Surface Temperature (tc) | 75 °C |
Permitted rel. Humidity | 10…90 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overvoltage protection | Yes *c |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards (LVD) | EN 61347-1, EN 61347-2-13 |
Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 EN 55015, EN 61547 |
Approval Marks | CE, KEMA,ENEC |
RoHS Compliant | Yes |
Installation
Type of installation | Independent installation |
Type of connection | Spring-loaded terminal |
Cable Cross-Section, input side | 0.75…1.5 mm² |
Cable Cross-Section, output side | 0.75…1.5 mm² |
Cable Preparation Length, input side | 6…8 mm |
Cable Preparation Length, output side | 6…8 mm |
Dimension
Connection
