LS-60M-DALI (900…1750mA 60W)
Out of stock
| Menge | Preis |
| 1 - 4 | 24,99€ |
| 5 - 9 | 23,69€ |
| 10 - 19 | 22,99€ |
| 20 + | 21,29€ |
Out of stock
Description

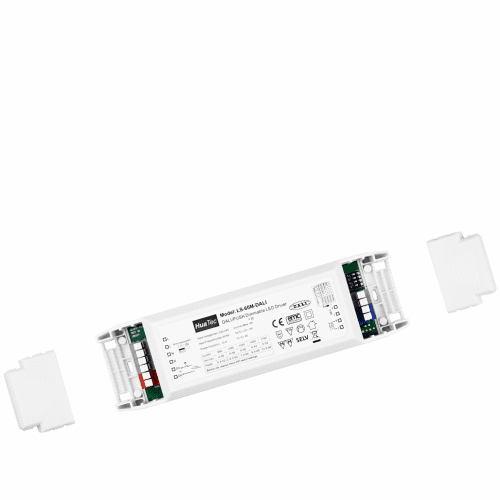

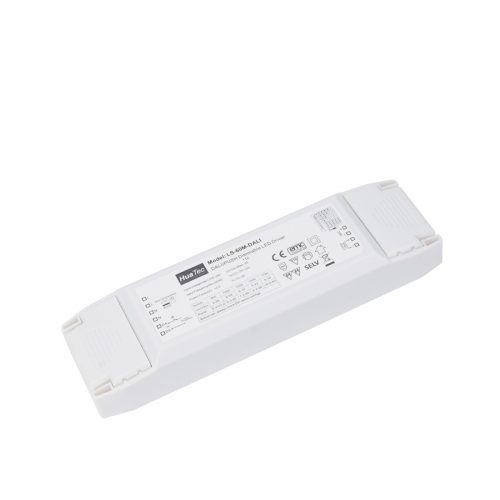

LS-60M-DALI
LED power supply with adjustable output current
60 W max., IP20, independent installation
Dimmable with DALI, 1-10V, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (range) | 198…264 Vac |
| Input Voltage (AC) | 220…240 Vac |
| Input Voltage (DC) | 200…240 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.9 Full Load, 230 Vac |
| Input Current | 0.45 A max. |
| Inrush Current | 20 A max. |
| Output Voltage | 9…58 Vdc |
| Output Current | 900 mA, 6-58 Vdc, 5.4-52.2 W 1050 mA, 6-58 Vdc, 6.3-60 W 1200 mA, 6-50 Vdc, 7.2-60 W 1400 mA, 6-43 Vdc, 8.4-60 W 1750 mA, 6-34 Vdc, 10.5-60 W |
| Output Power (nominal) | 60 W max. |
| Efficiency | ≥ 87 % Full Load, 230 Vac |
| Life Time | > 50,000 h 50 °C |
| Dimming mode | DALI, 1-10V, PUSH (pri.) |
| Dimming range | 2…100 % |
Operating Condition
| Operating temperature range (ta) | -25…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 10…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
| Standards (DALI) | IEC 62386-102 (1.0) IEC 62386-207 (1.0) |
| Approval Marks | CE |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |

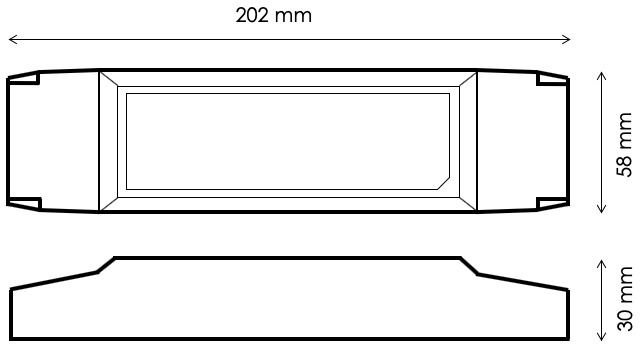

Dimension
Connection
