LS-75V12-DALI (12V 75W)

In stock

Menge Preis
1 - 4 35,99
5 - 9 34,79
10 - 19 33,69
20 + 32,79

Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

SKU: 72-WooCommerce Category:

Description

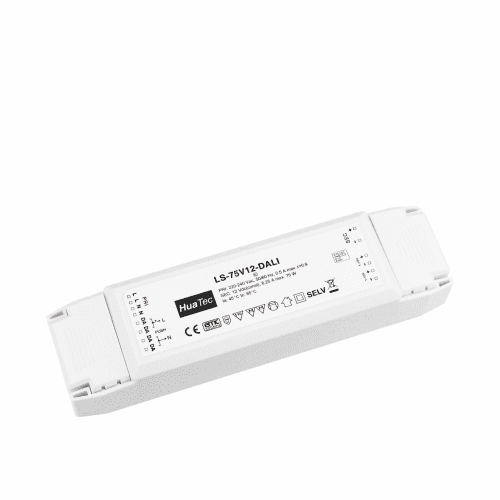

LS-75V12-DALI

LED power supply for 12 Vdc constant voltage
6.25 A (75W) max., IP20, independent installation
Dimmable with DALI, 1-10V, PUSH (pri.)
Flickerfree according to IEEE 1789

Electrical Data

Input Voltage (nominal) 220…240 Vac
Input Voltage (range) 198…264 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) ≥0.9  Full Load, 230 Vac
Input Current 0.5 A max.
Inrush Current 15 A max.  230 Vac
Output Voltage 12 Vdc
Output Current 6.25 A max.
Output Power (nominal) 75 W max.
Efficiency ≥ 84 %  Full Load, 230 Vac
Life Time > 50,000 h
Dimming mode DALI, 1-10V, PUSH (pri.)
Dimming range 1…100 %



Operating Condition

Operating temperature range (ta) -25…+45 °C
Max. Surface Temperature (tc) 85 °C
Permitted rel. Humidity 10…95 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overload Protection Yes *
Overheating Protection Yes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 55015, EN 61547
Standards (DALI) IEC 62386-102 (1.0), IEC 62386-207 (1.0)
Approval Marks CE
RoHS Compliant Yes



Installation

Type of Installation Independent installation

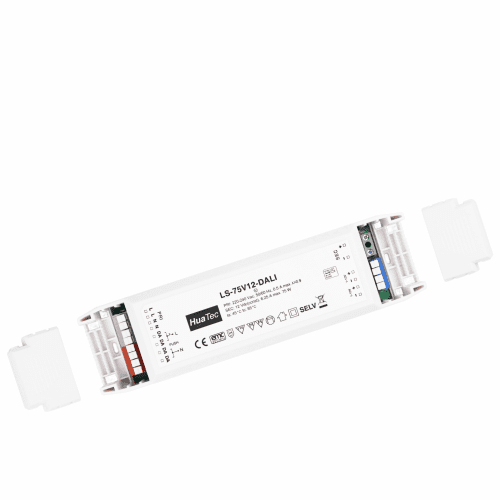

Type of Connection Screw terminal, Spring-loaded terminal
Cable Cross-Section, input side 0.75…1.5 mm²
Cable Cross-Section, output side 0.75…1.5 mm²
Cable Preparation Length, input side 6…8 mm
Cable Preparation Length, output side 6…8 mm



Dimension



Connection
