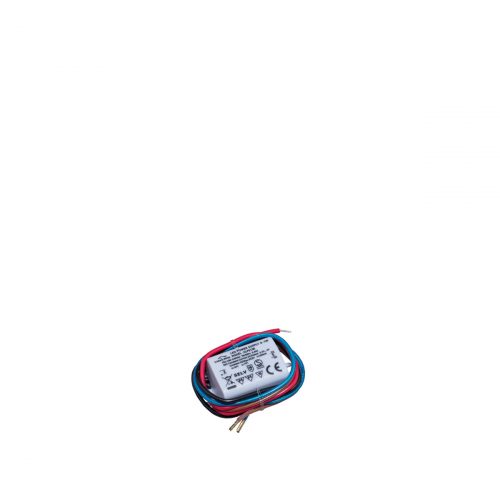

SLP01SS (350mA 1,4W)


Out of stock

Price on request for order quantity from 200 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Out of stock



LED power supply for 350 mA constant current
0.5…4 Vdc, 0.175….1.4 W, IP65, built-in installation, non-dimmable

Electrical Data

Input Voltage (nominal) 100…240 Vac
Input Voltage (range) 90…264 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) ≥ 0.45   100…240 Vac
Input Current 0.04 A max.    Full Load, 90 Vac
No-Load Loss ≤ 0.3 W max.
Inrush Current 10 A    Full Load, 240 Vac
Leakage Current < 0.5 mA    240 Vac
Output Voltage 0.5…4 Vdc
Output Current 350 mA
Output Power (nominal) 0.175…1.4 W
Efficiency ≥ 60 %    Full Load, 230 Vac
Life Time > 30,000 h    50 °C
Dimmable No


Operating Condition

Operating Ambient Temperature (ta) -10…+50 °C
Max. Surface Temperature (tc) 75 °C
Permitted rel. Humidity 10…90 %
Protection Class II
Type of Protection IP65



Short Circuit Protection Yes *
Overload Protection Yes *   105…120 %
Overvoltage Protection Yes *    > 6 Vdc
Overheating Protection Yes *

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.


Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval Marks CE, SEMKO (Intertek)
RoHS Compliant Yes



Cable Length, input side 260 mm
Cable Length, output side 260 mm
Cable Cross-Section, input side 2x 22AWG (OD: 0.644 mm)
Cable Cross-Section, output side 2x 22AWG (OD: 0.644 mm)
Cable Preparation Length, input side 5 mm tinned
Cable Preparation Length, output side 5 mm tinned
