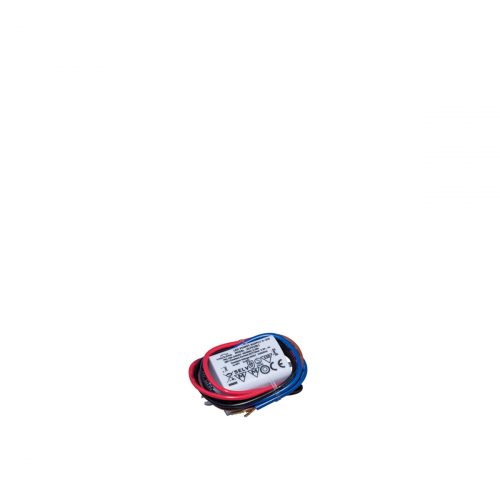

SLP03SS1 (700mA 2,8W)

In stock

MengePreis
1 - 44,99
5 - 94,79
10 - 194,59
20 +4,39

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

SLP03SS

LED power supply for 700 mA constant current
0.5…4 Vdc, 0.35…2.8 W, IP65, built-in installation, non-dimmable

Electrical Data

Input Voltage (nominal)100…240 Vac
Input Voltage (range)90…264 Vac
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.45   100…240 Vac
Input Current0.08 A max.    Full Load, 90 Vac
No-Load Loss≤ 0.3 W max.
Inrush Current10 A    Full Load, 240 Vac
Leakage Current< 0.5 mA    240 Vac
Output Voltage0.5…4 Vdc
Output Current700 mA
Output Power (nominal)0.35…2.8 W
Efficiency≥ 46 %    Full Load, 230 Vac
Life Time> 30,000 h    50 °C
DimmableNo



Operating Condition

Operating Ambient Temperature (ta)-10…+50 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. Humidity10…90 %
Protection ClassII
Type of ProtectionIP65



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *   105…120 %
Overvoltage ProtectionYes *    > 6 Vdc
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval MarksCE, SEMKO (Intertek)
RoHS CompliantYes



Installation

Cable Length, input side260 mm
Cable Length, output side260 mm
Cable Cross-Section, input side2x 22AWG (OD: 0.644 mm)
Cable Cross-Section, output side2x 22AWG (OD: 0.644 mm)
Cable Preparation Length, input side5 mm tinned
Cable Preparation Length, output side5 mm tinned



Dimension



Connection
