Menge | Preis |
1 - 4 | 6,93€ |
5 - 9 | 6,79€ |
10 - 19 | 6,59€ |
20 + | 6,29€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
6,93€
In stock
Menge | Preis |
1 - 4 | 6,93€ |
5 - 9 | 6,79€ |
10 - 19 | 6,59€ |
20 + | 6,29€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock
LED Trafo 700mA 6W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
SS5-6C700
LED power supply for 700 mA constant current
4…9 Vdc, 2.8…6.3 W, IP65, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
Input Voltage (nominal) | 220…240 Vac |
Input Voltage (AC) | 198…264 Vac |
Input Voltage (DC) | 176…370 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | 0.60 C Full load |
Input Current | 0.08 A |
No-load loss | ≤ 0.5 W |
Inrush Current | 10 A max. th = 100 μs, Cold start |
Leakage Current | < 0.7 mA |
Output Voltage | 4…9 Vdc |
Output Current | 700 mA |
Output Power (nominal) | 2.8…6.3 W |
Efficiency | 74 % |
Life Time | > 50,000 h |
Dimmable | No |
Operating Condition
Operating Ambient Temperature (ta) | -20…+60 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. Humidity | 5…85 % |
Protection Class | II |
Type of Protection | IP65 |
LED Trafo 500mA 6W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overvoltage Protection | Yes * Input: 264Vac max. Output: ≤44V |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards (LVD) | EN 61347-1, EN 61347-2-13, EN62493 |
Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 60598-1, EN 57710 EN 55015, EN 61547 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Cable Length, input side | 180(±5) mm |
Cable Length, output side | 180(±5) mm |
Cable Cross-Section, input side | 2x 20AWG |
Cable Cross-Section, output side | 2x 22AWG |
Cable Preparation Length, input side | 10 mm tinned |
Cable Preparation Length, output side | 10 mm tinned |
LED Trafo 500mA 6W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

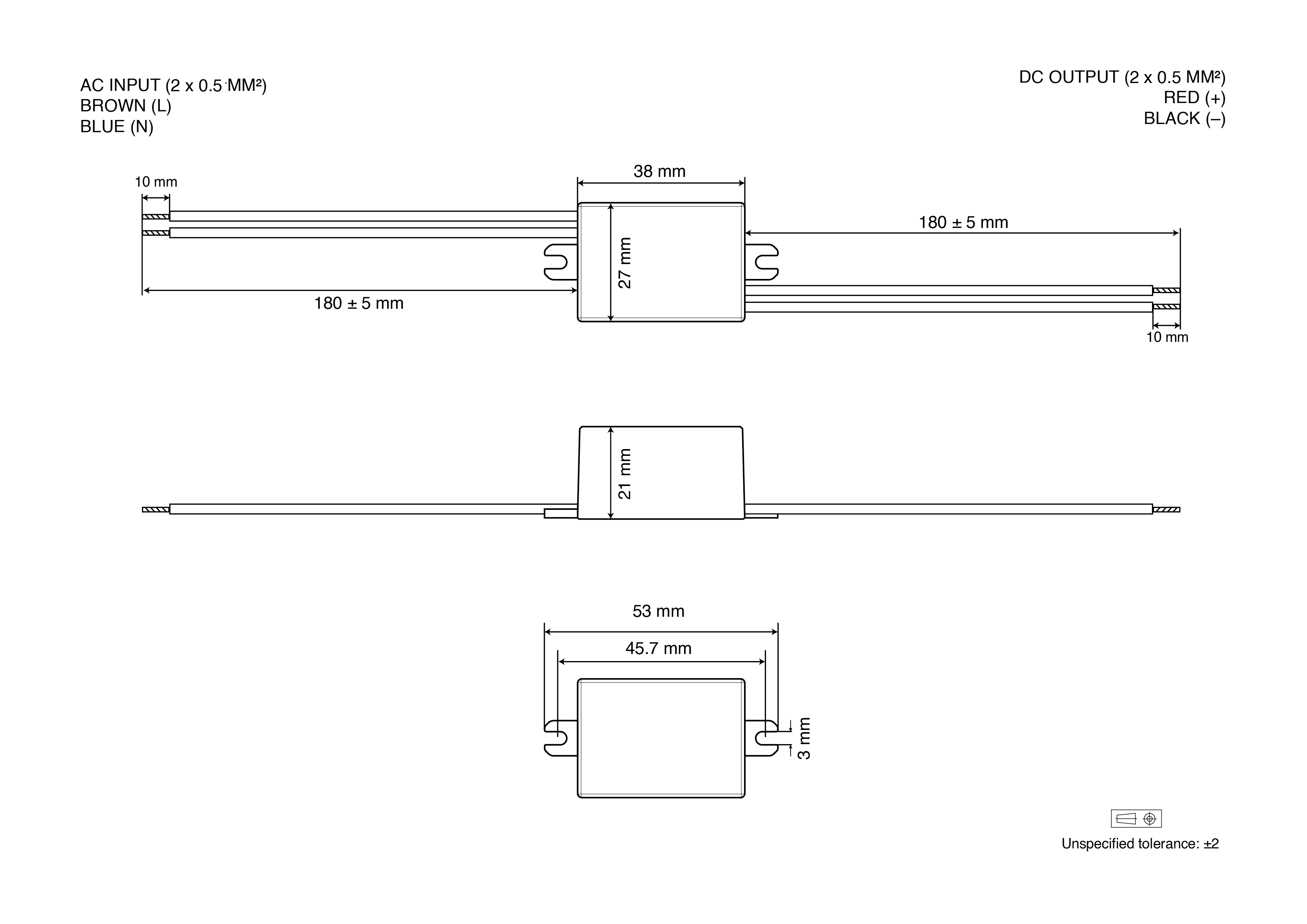

Dimension
Connection
