ST-50M-PV2 (500…1200mA 50W)

20,99

Out of stock

MengePreis
1 - 420,99
5 - 920,29
10 - 1919,69
20 +18,99



Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Out of stock

Description

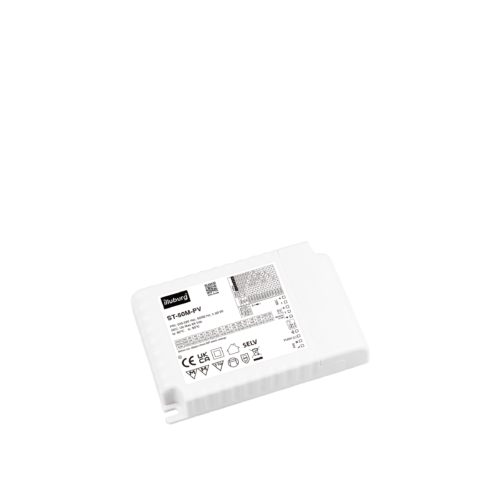

ST-50M-PV2

LED power supply with adjustable output current & voltage
50 W max., IP20, independent installation
Dimmable with 0-10V, PUSH (primary & secondary)

Electrical Data

Input Voltage220…240 Vac
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.95  Full Load, 230 Vac
Input Current0.28 A max.
Output Voltage68 Vdc max.
Output Current500 mA constant, 6-60 Vdc, 3-30 W
600 mA constant, 6-60 Vdc, 3,6-36 W
650 mA constant, 6-60 Vdc, 3,9-39 W
700 mA constant, 6-60 Vdc, 4,2-42 W
750 mA constant, 6-60 Vdc, 4,5-45 W
800 mA constant, 6-60 Vdc, 4,8-48 W
850 mA constant, 6-58 Vdc, 5,1-49,3 W
900 mA constant, 6-55 Vdc, 5,4-49,5 W
950 mA constant, 6-52 Vdc, 5,7-49,4 W
1000 mA constant, 6-50 Vdc, 6-50 W
1050 mA constant, 6-47 Vdc, 6,3-49,3 W
1100 mA constant, 6-45 Vdc, 6,6-49,5 W
1200 mA constant, 6-41 Vdc, 7,2-49,2 W
Output Power (nominal)50 W max.
Effizienz89% max.  Full Load, 230 Vac
Lebensdauer50.000h   Ta Full Load
Dimming mode0-10V, Primary PUSH, Secondary PUSH
Dimming range1…100 %



Operating Condition

Operating temperature range (ta)-25…+50 °C
Max. Surface Temperature (tc)85 °C
Protection ClassI
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload protectionYes *
Overvoltage protectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 55015, EN 61547
EN61000-3-2, EN61000-3-3
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

Type of InstallationIndependent installation
Type of ConnectionSpring-loaded terminal
Cable Cross-Section, input side0.5…1.5 mm²
Cable Cross-Section, output side0.5…1.5 mm²
Cable Preparation Length, input side8 mm
Cable Preparation Length, output side8 mm



Dimension

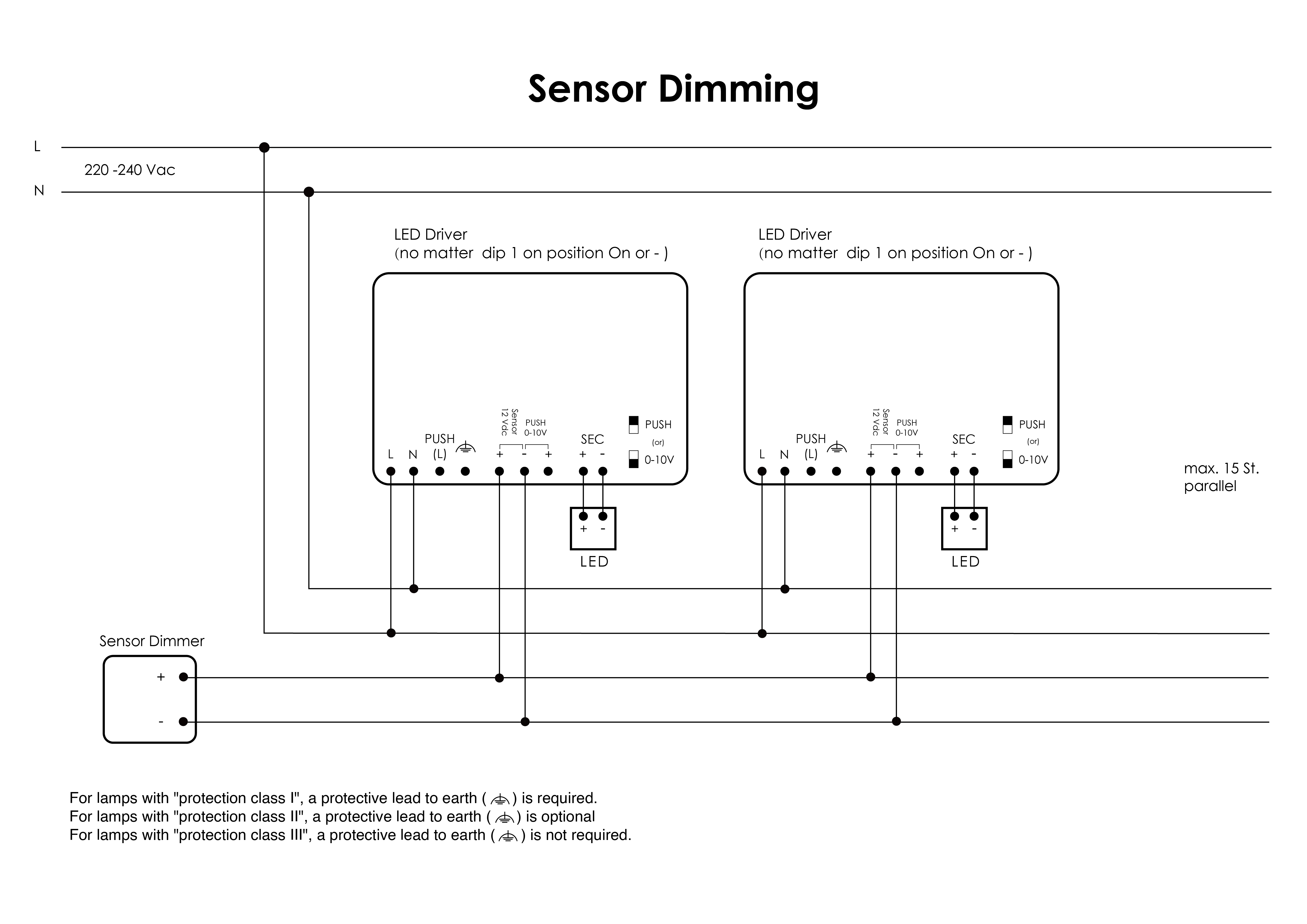

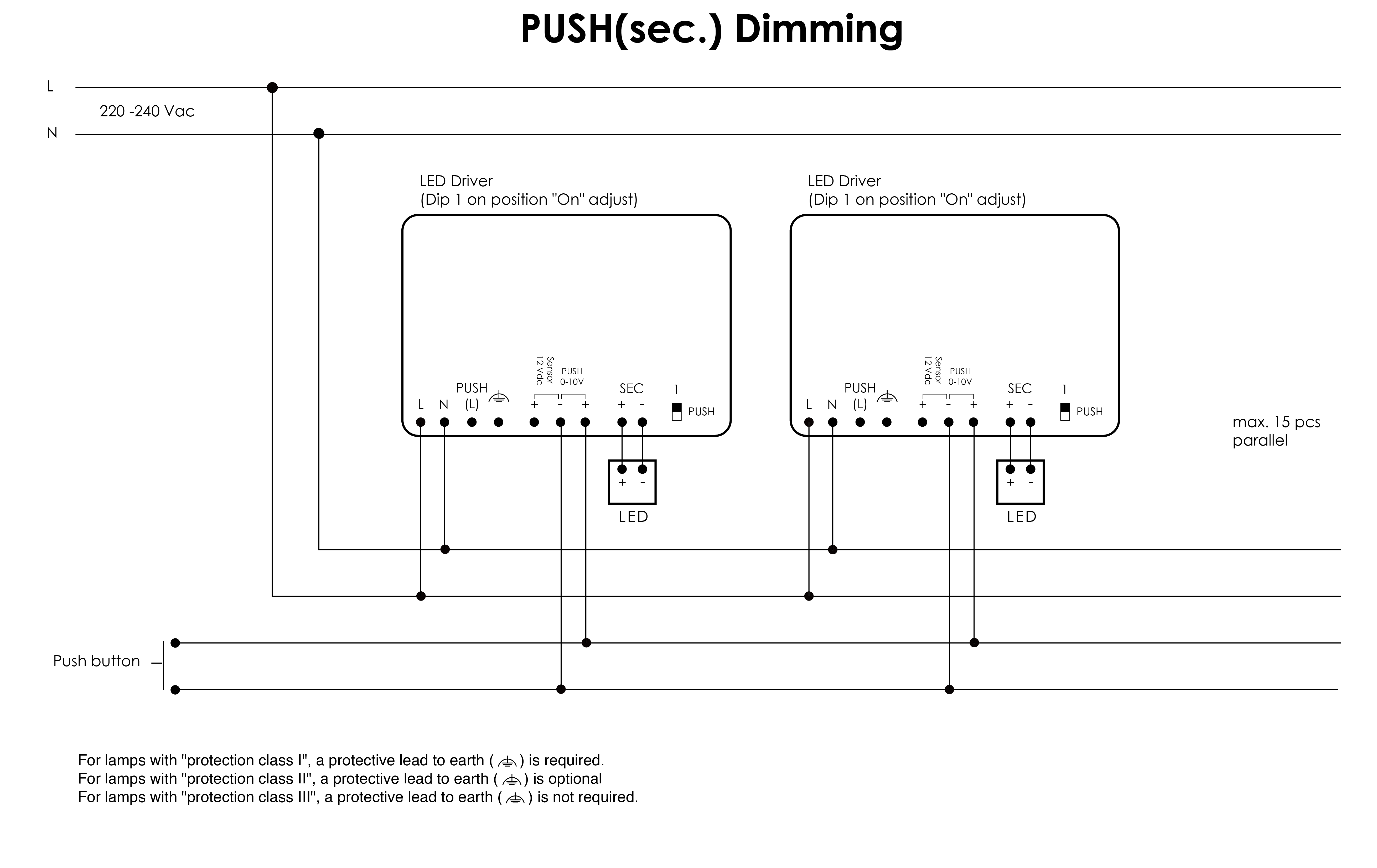

Connection
