Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU

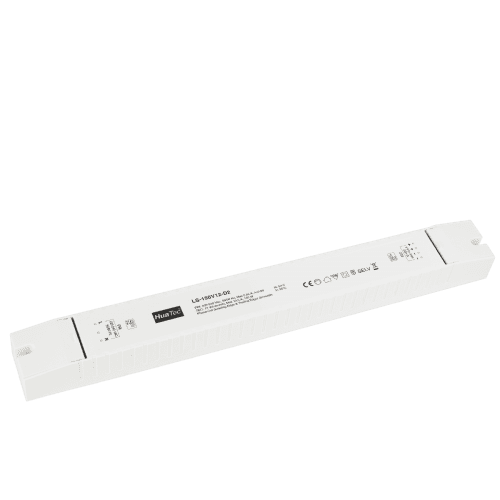

LS-150V12-D2 (12V 150W)
| Menge | Preis |
| 1 - 9 | 34,99€ |
| 10 - 19 | 33,49€ |
| 20 + | 32,79€ |
Description
LS-150V12-D2
LED power supply for 12 Vdc constant voltage
12,5 A (150 W) max., IP20, independent installation
Leading / trailing edge (TRIAC) dimmable
suitable for GU5.3(MR16) / G4(M11) and LED strips
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | > 0.98 Full Load, 230 Vac |
| Input Current | 0.85 A max. Full Load, 230 Vac |
| Inrush Current | 49.4 A max. 220 Vac |
| Output Voltage | 12 Vdc |
| Output Current | 12.5 A max. |
| Output Power (nominal) | 150 W |
| Efficiency | ≥ 88 % Full Load, 220 Vac |
| Life Time | > 50,000 h 90 °C |
| Dimming Mode | TRIAC (leading & trailing edge) |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 90 °C |
| Permitted rel. Humidity | 20…90 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 105…150 % |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, GB 19510 |
| Standards (EMC) | EN 61000-3-2 EN 55015, EN 61547 EN 61000-4-2, 3, 4, 5, 6, 8, 11 |
| Approval Marks | CE |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 8 mm |
| Cable Preparation Length, output side | 8 mm |
Dimension
Connection
