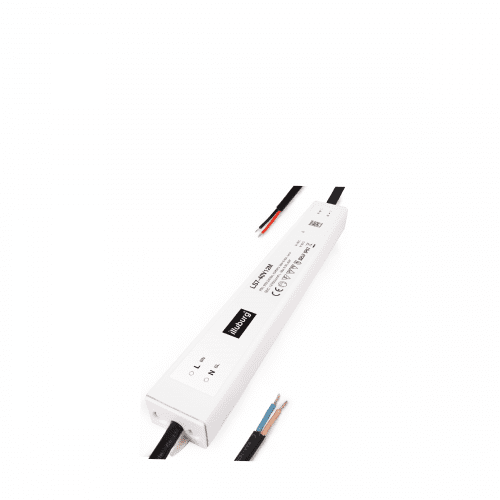

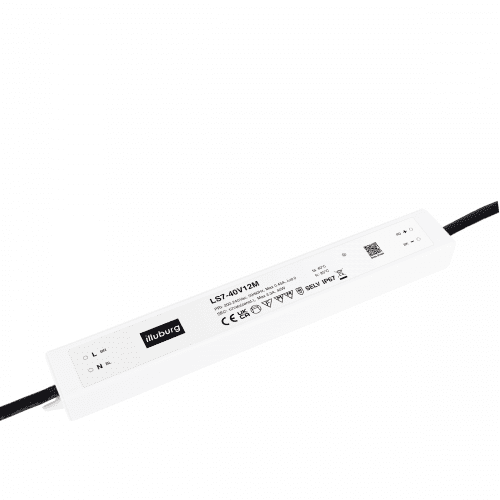

LS7-40V12M (12V 40W)

In stock

Menge Preis
1 - 4 11,79
5 - 9 11,49
10 - 19 11,09
20 + 10,79

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LS7-40V12M

LED power supply for 12 Vdc constant voltage
3.33 A (40 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789

Electrical Data

Input Voltage (range) 180…264 Vac
Rated input voltage (AC) 220…240 Vdc
Mains Frequency 50/60 Hz
Power Factor (λ) ≥ 0.9    230 Vac
Input Current ≤ 0.45 A    180 Vac
No-Load Loss < 0.5 W
Inrush Current < 20 A
Output Voltage 12 Vdc
Output Current 0…3.33 A
Output Power (nominal) 40 W max.
Efficiency ≥ 83%
Life Time ≥ 50,000 h   25 °C
Dimmable No



Operating Condition

Operating Ambient Temperature (ta) -20…+75 °C
Max. Surface Temperature (tc) 85 °C
Permitted rel. humidity during operation 5…95
Protection Class Class II
Type of Protection IP67



Protection

Short Circuit Protection Yes(2)
Overload Protection Yes(1)   150%
Overvoltage Protection Yes(1)
Overheating Protection Yes(1)   95 °C


(1) The output turns off and can be restored after correcting the problem and restarting the power supply.
(2) The output switches to “Hiccups” mode and can be restored after the problem has been resolved and the power supply restar
ted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
EN 605981, EN 62493, EN 57710
Standards (EMC) EN 61547, EN55015
EN 610003-2, EN 61000 3-3
Approval Marks CE
RoHS Compliant Yes



Installation

Type of installation Built in installation
Typ e of connection Connected double instulated cable   2* 0.75 mm²
CCable length , output side 150 ± 10 mm
Cable Cross-Section, output side 150 ± 10 mm
Cable Preparation Length, input side 6…10 mm
Cable Preparation Length, output side 6…10 mm

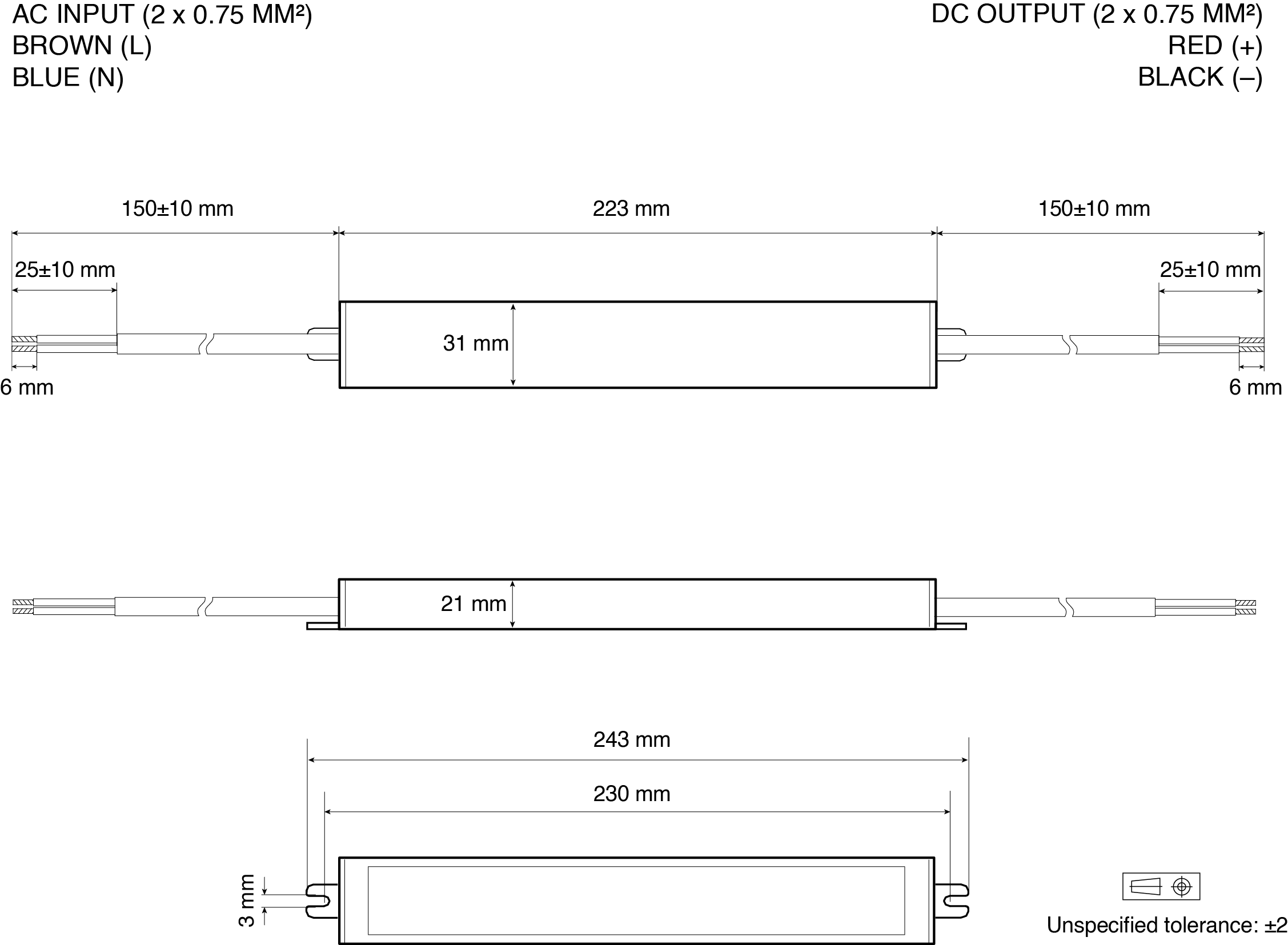

Dimension
