LS-8-150 LI (150mA 8W)

Only 10 left in stock

(0 customer reviews)
MengePreis
1 - 45,99
5 - 95,69
10 - 195,39
20 +5,19

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

Only 10 left in stock

Description

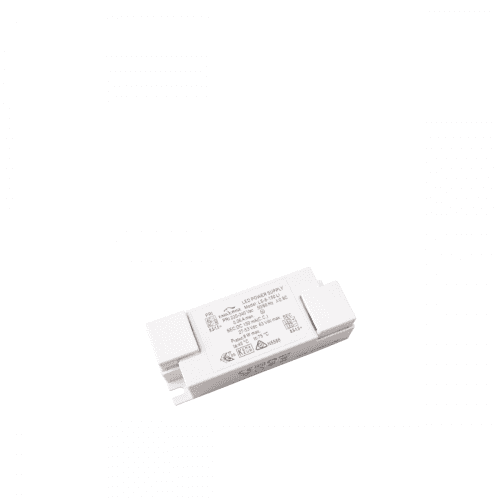

LS-8-150 LI

LED power supply for 150 mA constant current
27…53 Vdc, 4…8 W, IP20, independent installation, non-dimmable
Flicker-free according to IEEE 1789

Electrical Data

Input voltage (range)176…264 Vac
Rated input voltage (AC)220…240 Vac
Rated input voltage (DC)176…280 Vdc
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.9   Full Load, 240 Vac
Input Current0,06 A max.   Full Load, 176 Vac
Inrush Current20 A max.
Leakage Current< 0.5 mA   240 Vac
Output Voltage27…53 Vdc
Output Current150 mA
Output Power (nominal)4…8 W
Efficiency≥ 78 %
Life Time> 30,000 h    45 °C
DimmableNo



Operating Condition

Operating Ambient Temperature (ta)-20…+45 °C
Max. Surface Temperature (tc)75 °C
Permitted rel. Humidity20…90 %
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *   103..120%
Overvoltage protectionYes *  >63 Vdc


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
EN 62384
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval MarksCE, KEMA,ENEC
RoHS CompliantYes

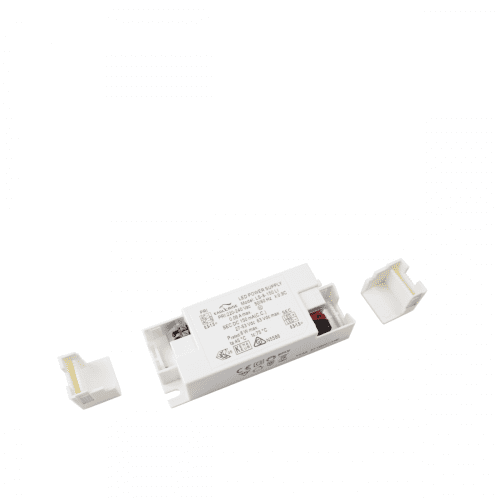

Installation

Type of installationIndependent installation
Type of connectionSpring-loaded terminal
Cable Cross-Section, input side0.5…1.5 mm²
Cable Cross-Section, output side0.5…1.5 mm²
Cable Preparation Length, input side6…8 mm
Cable Preparation Length, output side6…8 mm



Dimension



Connection
