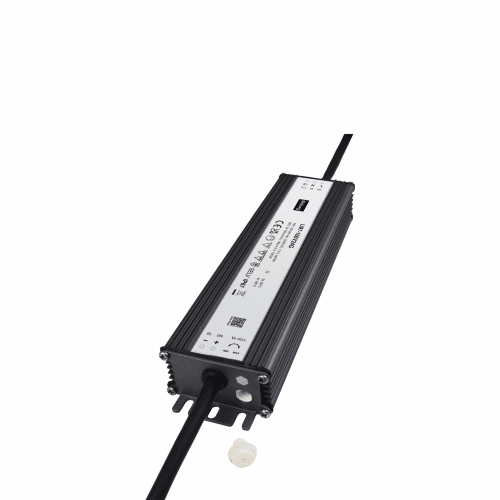

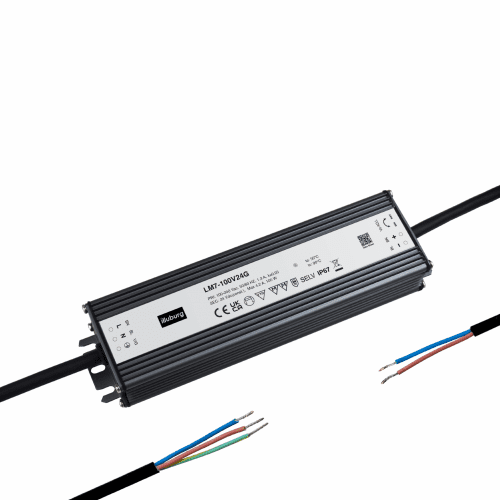

LM7-100V24 (24V 100W)

In stock

1 - 419,99
5 - 919,59
10 - 1919,19
20 +18,79

Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock



LED power supply for 24 Vdc constant voltage
4.2 A (100 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789

Electrical Data

Input Voltage (nominal)100…277 Vac / 125…420 Vdc
Input Voltage (range)90…305 Vac / 125…420 Vdc
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.95   Full Load
≥ 0.9   70…100% Load
Input Current≤ 1.3 A    Rated Load, 120 Vac
≤ 0.6 A    Rated Load, 230 Vac
≤ 0.5 A    Rated Load, 277 Vac
No-Load Loss< 0.5 W
Inrush Current≤ 60 A    240 Vac 50 Hz, Full Load
Leakage Current≤ 0.7 mA    240 Vac 50 Hz, IEC61347-1
Output Voltage24 Vdc const.
Output Current0…4.2 A
Output Power (nominal)100 W max.
Efficiency89%   120 Vac, Full Load
91%   230 Vac, Full Load
Life Time≥ 75,000 h   ≤ 75 °C case temperature


Operating Condition

Operating Ambient Temperature (ta)-40…+50 °C    10%RH…100%RH Rated Load
50…+70 °C    10%RH…100%RH ref. Derating Curve
Max. Surface Temperature (tc)90 °C
Protection ClassClass I
Type of ProtectionIP67



Short Circuit ProtectionYes *
Overload ProtectionYes *   120…160%
Overvoltage ProtectionYes *   110…150%
Overheating ProtectionYes *  90 °C < Tc < 110 °C

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.


Standards & Certificates

Standards (LVD)EN 61347-1:2015,
EN 61347-2-13:2014/A1:2017
EN 62493:2015
Standards (EMC)EN 61000-3-2:2014,
EN 61000-3-3:2013
EN 55015:2013/A1:2015,
EN 61547:2009
PerformanceEN 62384
Approval MarksCE
RoHS CompliantYes



Cable Length, input side300 mm
Cable Length, output side300 mm
Cable Cross-Section, input side3x 1.0 mm²
Cable Cross-Section, output side2x 1.0 mm²
Cable Preparation Length, input side10 mm tinned
Cable Preparation Length, output side10 mm tinned
