Price on request for order quantity from 20 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
LS-45V24-DALI2 (24V 45W)
Out of stock
| Menge | Preis |
| 1 - 4 | 25,99€ |
| 5 - 9 | 24,39€ |
| 10 - 19 | 23,69€ |
| 20 + | 22,99€ |
Out of stock
Description

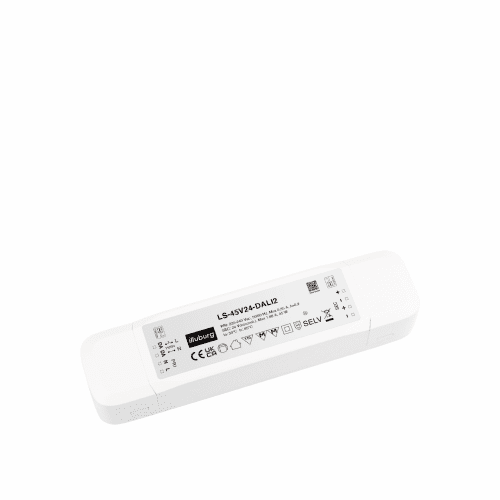

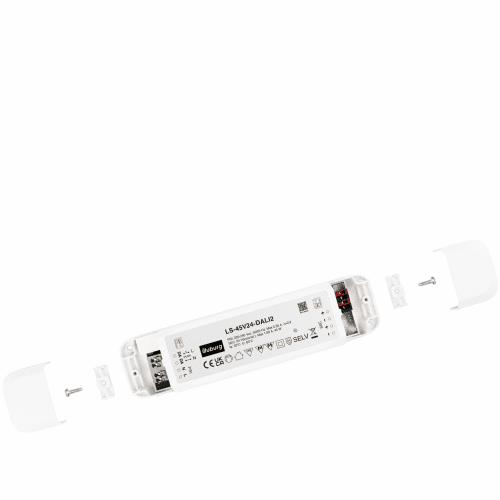

LS-45V24-DALI2
LED power supply for 24 Vdc constant voltage
1.88 A (45W) max., IP20, independent installation
Dimmable with DALI, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 220…240 Vac |
| Input Voltage (range) | 176…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | > 0.9 220…240 Vac |
| Input Current | 0.35 A max. Full Load, 176 Vac |
| Inrush Current | 40 A max. |
| Output Voltage | < 0.5 mA 240 Vac |
| Output Voltage | 24 Vdc |
| Output Current | 1.88 A max. |
| Output Power (nominal) | 45 W max. |
| Efficiency | ≥ 86 % |
| Life Time | > 44,000 h 50 °C |
| Dimming mode | DALI, PUSH (pri.) |
Operating Condition
| Operating temperature range (ta) | -20…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 20…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 105…150 % |
| Overvoltage protection | Yes * > 25,2 Vdc |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 62384 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 EN 55015, EN 61547 |
| Approval Marks | CE |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Screw terminal |
| Cable Cross-Section, input side | 0.5…1.5 mm² |
| Cable Cross-Section, output side | 0.5…1.5 mm² |
| Cable Preparation Length, input side | 7…9 mm |
| Cable Preparation Length, output side | 7…9 mm |
Dimension
Connection
For business customer, who wants to order our porducts in large quantities or learn more about our new products, please contact us and download our product catalog.
