ST-50M2-PV
Double-output LED power supply with adjustable output current
50 W max., IP20, independent installation
Dimmable with 0-10V, PUSH (primary & secondary)
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage | 220…240 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | > 0.95 Full Load, 230 Vac |
Input Current | 0.28 A max. |
Output Voltage | 68 Vdc max. |
Output Current | SEC1* 350 mA constant, 9-50 Vdc, 3-18 W 500 mA constant, 9-50 Vdc, 5-25 W 550 mA constant, 9-45 Vdc, 5-25 W 700 mA constant, 9-36 Vdc, 6-25 W 750 mA constant, 9-33 Vdc, 7-25 W 900 mA constant, 9-28 Vdc, 8-25 W SEC2* * If SEC1 and SEC2 are used at the same time, The total power of the two outputs stays under 50W. |
Output Power (nominal) | 50 W max. |
Dimming mode | 0-10V, Primary PUSH, Secondary PUSH |
Dimming range | 1…100 % |
Operating Condition
Operating temperature range (ta) | -25…+50 °C |
Max. Surface Temperature (tc) | 85 °C |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overvoltage protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards | EN 55015, EN 61547 EN 61347-1, EN 61347-2-13 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Spring-loaded terminal |
Cable Cross-Section, input side | 0.5…1.5 mm² |
Cable Cross-Section, output side | 0.5…1.5 mm² |
Cable Preparation Length, input side | 8 mm |
Cable Preparation Length, output side | 8 mm |
Dimension

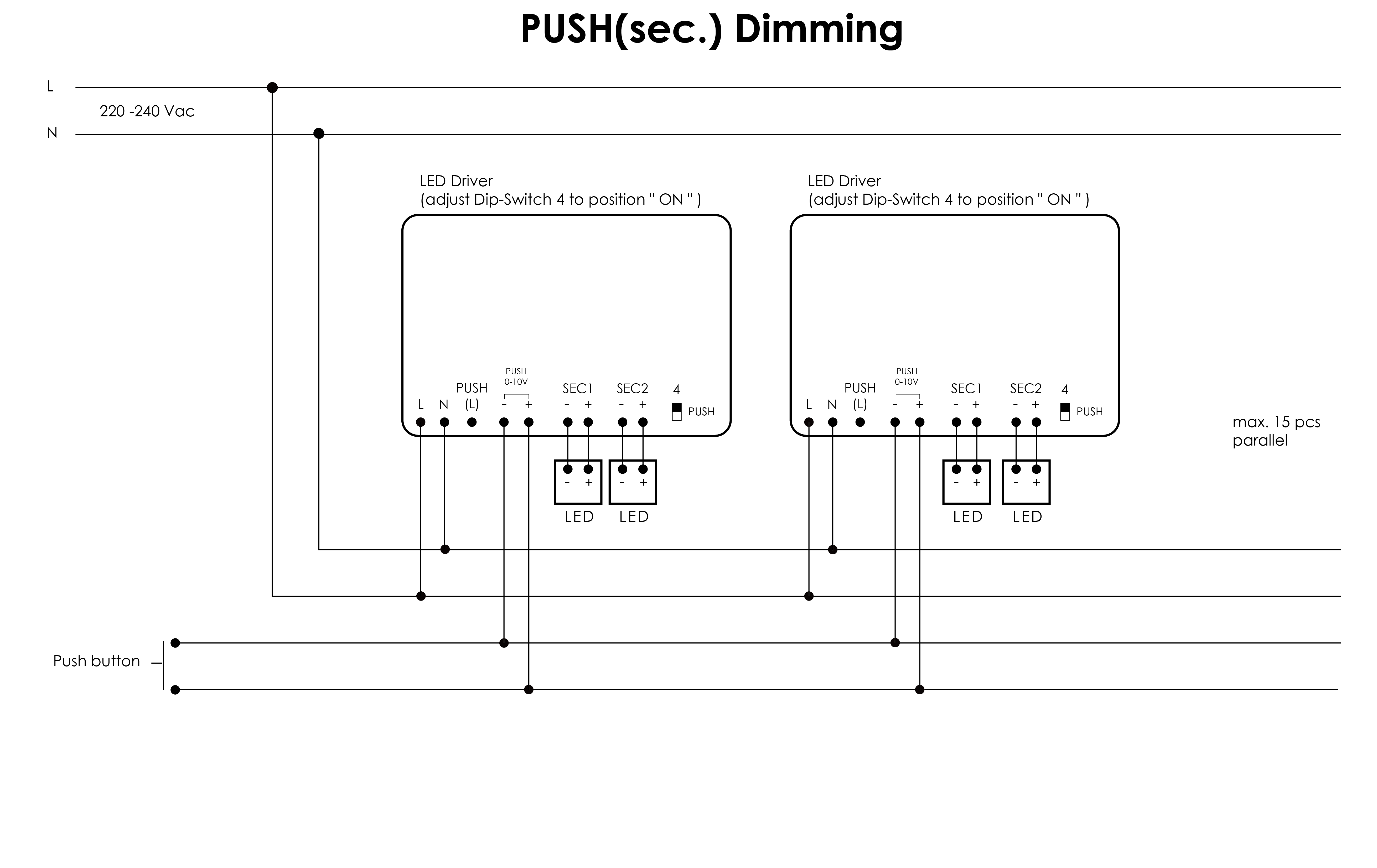

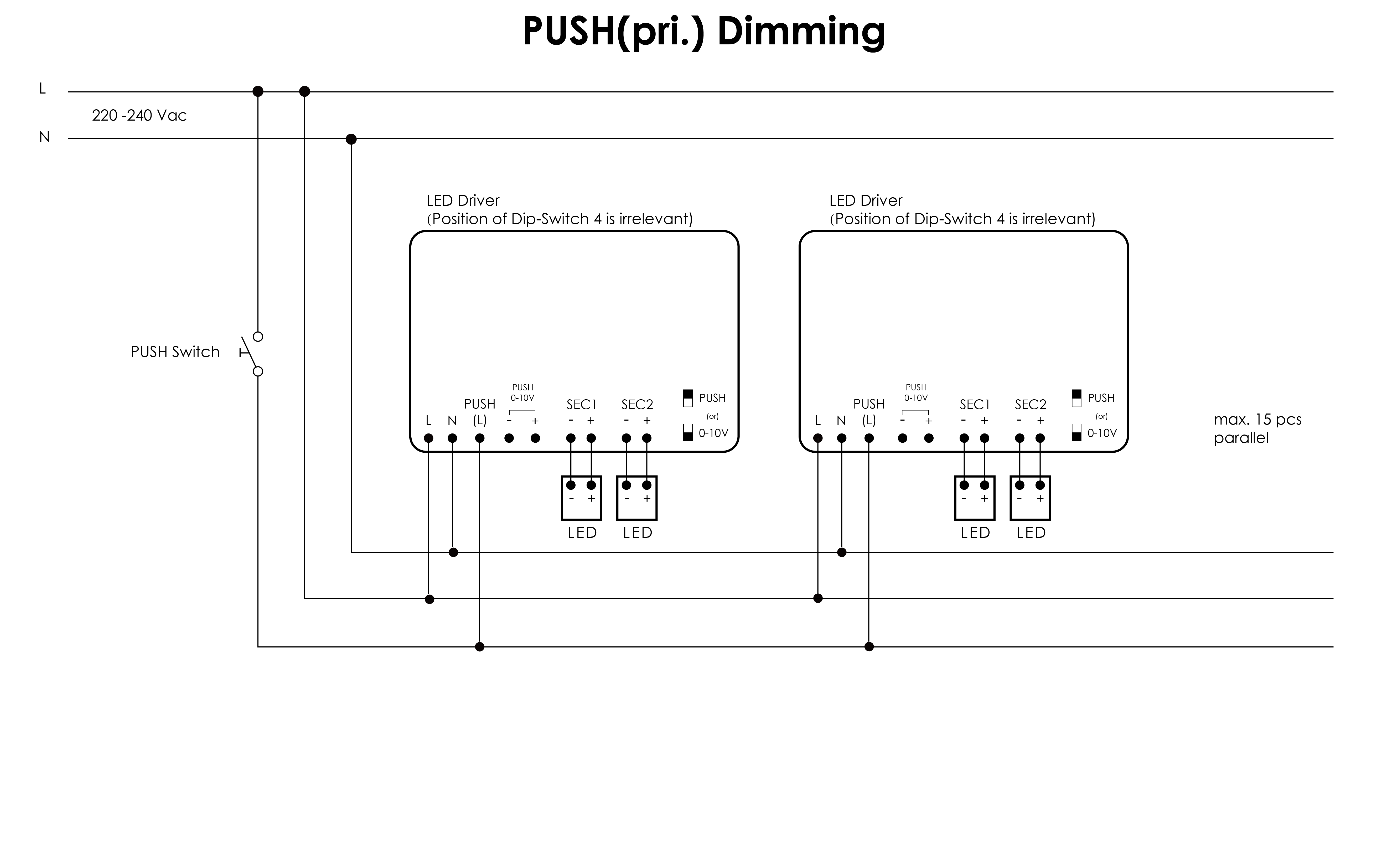

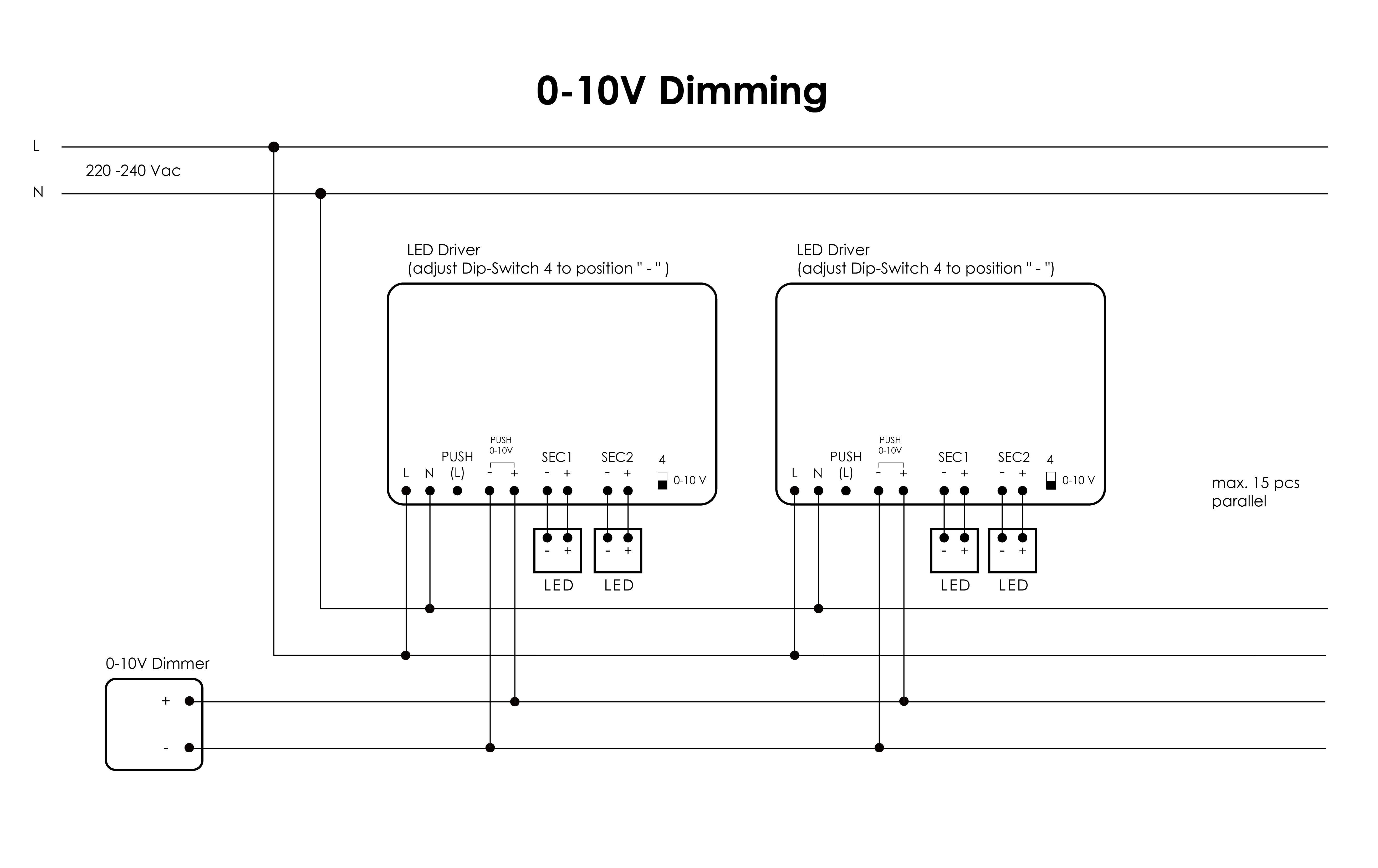

Connection
