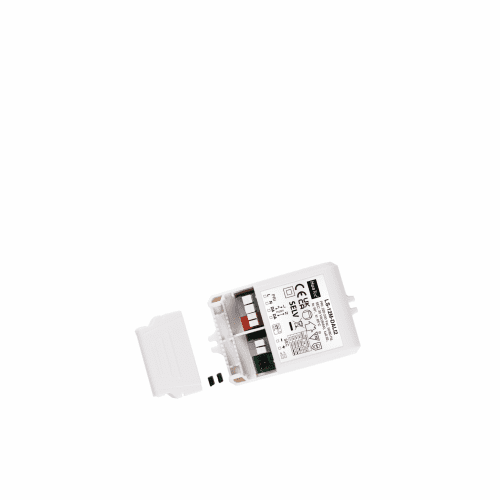

LED Trafo 12W dali constant current for LED Strip Lamp LED Driver Treiber Transformator
LS-12M-DALI2
LED power supply with adjustable output current
12 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage (range) | 198…264 Vac |
Input Voltage (AC) | 220…240 Vac |
Input Voltage (DC) | 200…240 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | 0.93 Full Load, 230Vac |
Input Current | 0.08 A max. 230Vac |
Inrush Current | < 15 A |
Output Voltage | 30 Vdc max. |
Output Current | 350 mA, 3-24 Vdc, 1.05-8.4 W 500 mA, 3-24 Vdc, 1.5-12 W 550 mA, 3-22 Vdc, 1.65-12.1 W 700 mA, 3-17 Vdc, 2.1-11.9 W |
Output Power (nominal) | 12 W max. |
Efficiency | ≥ 83 % Full Load, 230 Vac |
Life Time | 5 years Ta, Full Load |
Dimming | DALI-2 (0-100%) Primary PUSH (2-100%) |
Operating Condition
LED Trafo 12W dali constant current for LED Strip Lamp LED Driver Treiber Transformator
Operating temperature range (ta) | -25…+50 °C |
Max. Surface Temperature (tc) | 85 °C |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overvoltage protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards (LVD) | EN 61347-1, EN 61347-2-13 |
Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
Standards (DALI) | IEC62386-102, IEC62386-207 DT6 |
Approval Marks | CE |
Installation
LED Trafo 12W dali constant current for LED Strip Lamp LED Driver Treiber Transformator
Type of Installation | Independent installation |
Type of Connection | Spring-loaded terminal |
Cable Cross-Section, input side | 0.75…1.5 mm² |
Cable Cross-Section, output side | 0.75…1.5 mm² |
Cable Preparation Length, input side | 6…8 mm |
Cable Preparation Length, output side | 6…8 mm |

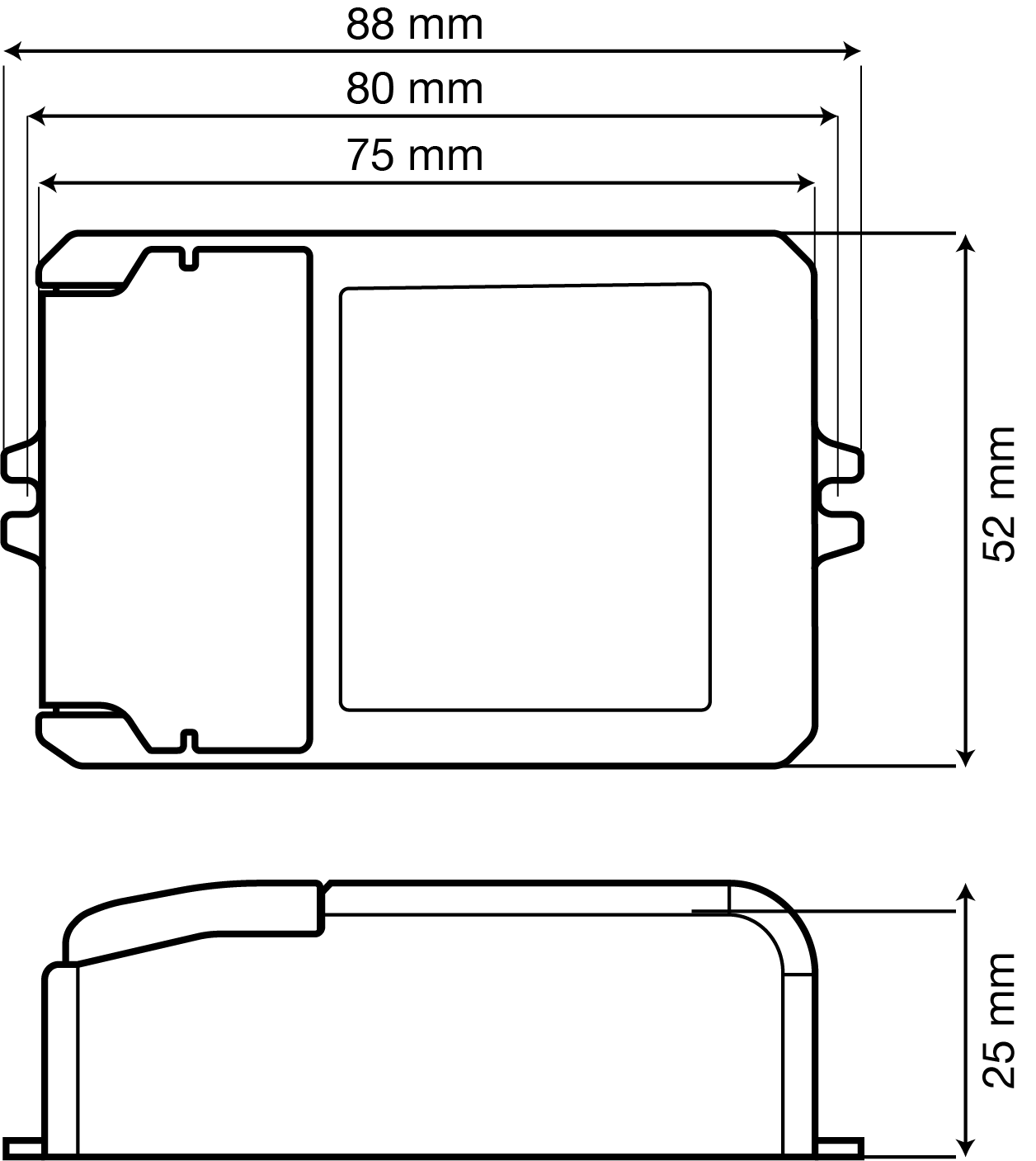

Dimension

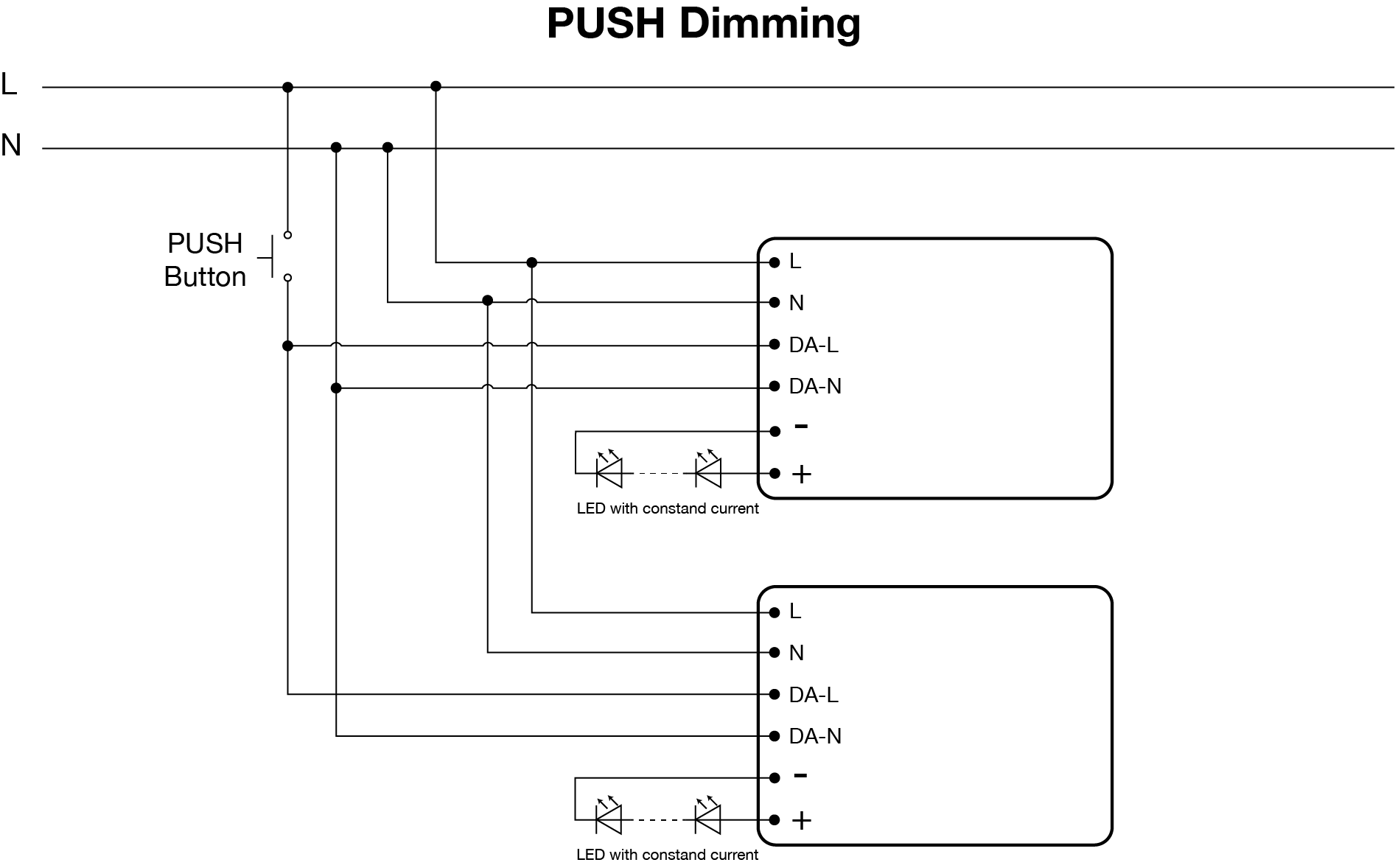

Connection
