LS-6-350 SI (350mA 6W)

In stock

MengePreis
1 - 44,99
5 - 94,79
10 - 194,59
20 +4,39

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

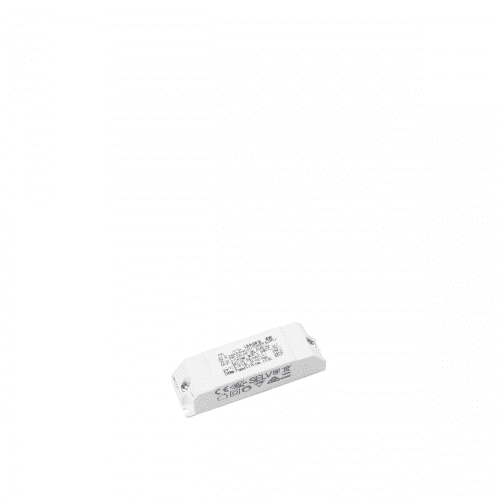

LS-6-350 SI

LED power supply for 350 mA constant current
5…18 Vdc, 2…6.3 W, IP20, independent installation, non-dimmable

Electrical Data

Input voltage (range)176…264 Vac
Rated input voltage (AC)220…240 Vac
Rated input voltage (DC)176…280 Vdc
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.5   Full Load, 240 Vac
Input Current0,11 A max.   Full Load, 176 Vac
Inrush Current30 A max.
Leakage Current< 0.7 mA   240 Vac
Output Voltage5…18 Vdc
Output Current350 mA
Output Power (nominal)2…6.3 W
Efficiency≥ 76 %
Life Time> 30,000 h    50 °C
DimmableNo



Operating Condition

Operating Ambient Temperature (ta)-20…+50 °C
Max. Surface Temperature (tc)80 °C
Permitted rel. Humidity20…90 %
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *   103..150%
Overvoltage protectionYes *  >25 Vdc


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
EN 62384
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval MarksCE, ENEC
RoHS CompliantYes



Installation

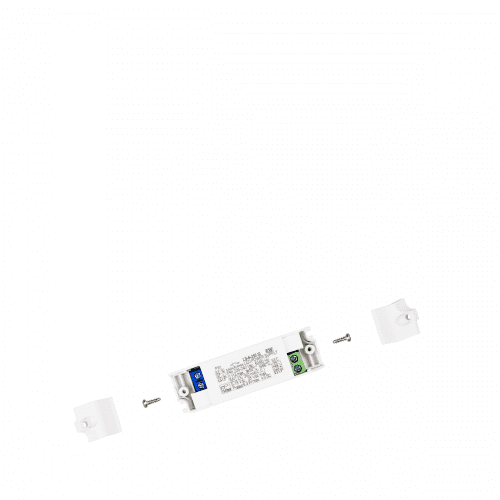

Type of installationIndependent installation
Type of connectionScrew terminal
Cable Cross-Section, input side0.5…1.5 mm²
Cable Cross-Section, output side0.5…1.5 mm²
Cable Preparation Length, input side7…9 mm
Cable Preparation Length, output side7…9 mm



Dimension



Connection
