Menge | Preis |
1 - 4 | 13,99€ |
5 - 9 | 13,49€ |
10 - 19 | 12,99€ |
20 + | 12,69€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
13,99€
In stock
Menge | Preis |
1 - 4 | 13,99€ |
5 - 9 | 13,49€ |
10 - 19 | 12,99€ |
20 + | 12,69€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock

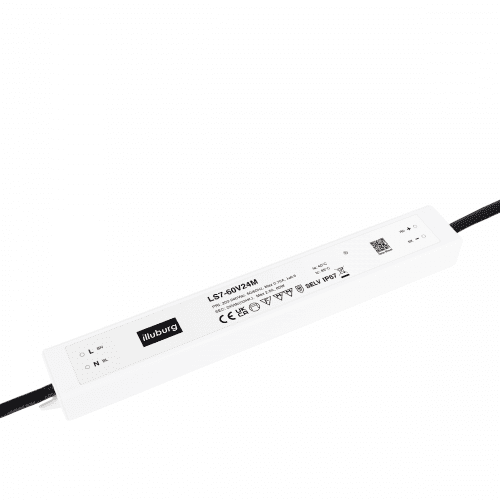

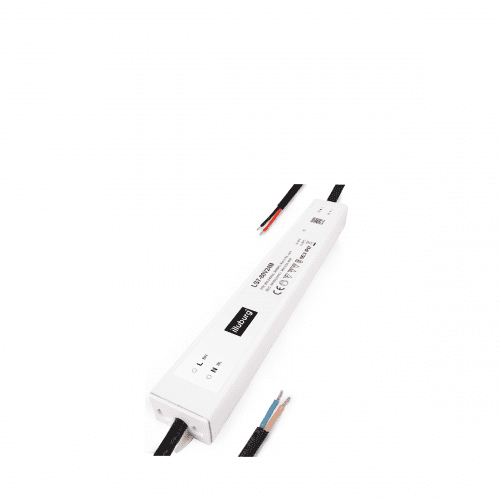

LS7-60V24M
LED power supply for 24 Vdc constant voltage
2,5 A (60 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
Input Voltage (range) | 180…264 Vac |
Rated input voltage (AC) | 220…240 Vdc |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | ≥ 0.9 230 Vac |
Input Current | ≤ 0.7 A 180 Vac |
No-Load Loss | < 0.5 W 230 Vac |
Inrush Current | < 20 A cold start |
Output Voltage | 24 Vdc |
Output Current | 0…2,5 A |
Output Power (nominal) | 60 W max. |
Efficiency | > 84% |
Life Time | > 50,000 h 25 °C |
Dimmable | No |
Operating Condition
Operating Ambient Temperature (ta) | -20…+75 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. humidity during operation | 5…95% |
Protection Class | Class II |
Type of Protection | IP67 |
Protection
Short Circuit Protection | Yes(2) |
Overload Protection | Yes(1) 150% |
Overvoltage Protection | Yes(1) |
Overheating Protection | Yes(1) 95 °C |
(1) The output turns off and can be restored after correcting the problem and restarting the power supply.
(2) The output switches to “Hiccups” mode and can be restored after the problem has been resolved and the power supply restar
ted.
Standards & Certificates
Normen | EN 61347-1, EN 61347-2-13 EN 60598-1, EN 62493, EN 57710 EN 61547, EN 55015 EN 61000-3-2, EN 61000-3-3 |
Approval Marks | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of installation | Built in installation |
Typ e of connection | Connected double instulated cable 2 x 0.75 mm² |
CCable length , output side | 150 ± 10 mm |
Cable Cross-Section, output side | 150 ± 10 mm |
Cable Preparation Length, input side | 6…10 mm |
Cable Preparation Length, output side | 6…10 mm |

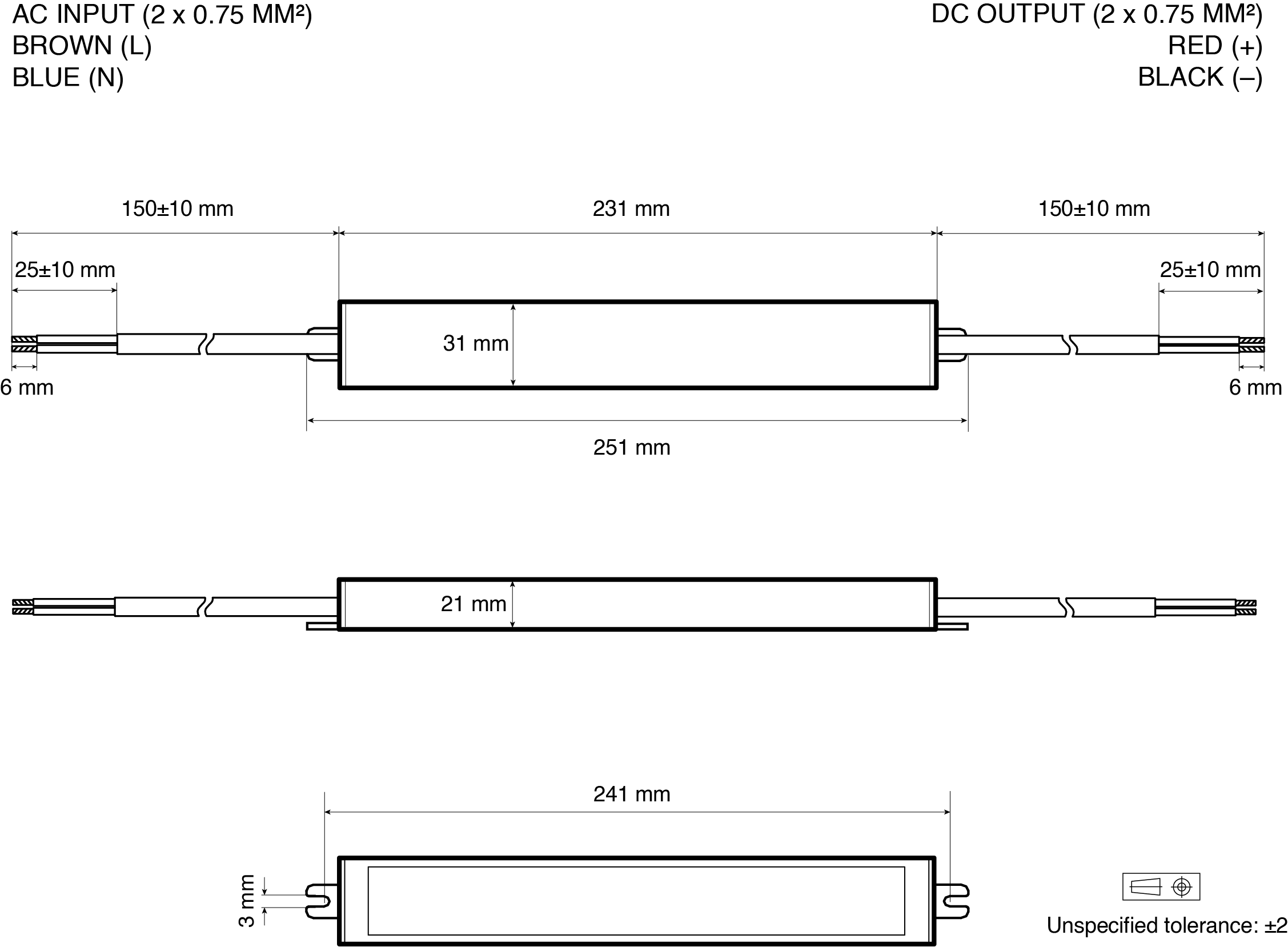

Dimension
Connection
