Price on request for order quantity from 20 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
LM7-200V24G (24V 200W)
In stock
| Menge | Preis |
| 1 - 4 | 25,41€ |
| 5 - 9 | 24,69€ |
| 10 - 19 | 23,99€ |
| 20 + | 23,49€ |
In stock
Description
LM7-200V24G
LED power supply for 24 Vdc constant voltage
8.34 A (200 W) max., IP67, built-in installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input Voltage (nominal) | 100…277 Vac / 125…420 Vdc |
| Input Voltage (range) | 90…305 Vac / 125…420 Vdc |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load ≥ 0.9 70…100% Load |
| Input Current | ≤ 2 A 80% Rated Load, 120 Vac ≤ 1.0 A Rated Load, 230 Vac ≤ 0.9 A Rated Load, 277 Vac |
| No-Load Loss | < 0.5 W |
| Inrush Current | ≤ 75 A 240 Vac 50 Hz, Full Load |
| Leakage Current | ≤ 0.7 mA 240 Vac 50 Hz, IEC61347-1 |
| Output Voltage | 24 Vdc const. |
| Output Current | 0…8.34 A |
| Output Power (nominal) | 200 W max. |
| Efficiency | 94% 230 Vac, Full Load 92% 120 Vac, Full Load |
| Life Time | ≥ 85,000 h ≤ 75 °C case temperature |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -40…+50 °C 10%RH…100%RH Rated Load 50…+70 °C 10%RH…100%RH ref. Derating Curve |
| Max. Surface Temperature (tc) | 90 °C |
| Protection Class | Class I |
| Type of Protection | IP67 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 120…160% |
| Overvoltage Protection | Yes * 110…150% |
| Overheating Protection | Yes * 90 °C < Tc < 110 °C |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1:2015, EN 61347-2-13:2014/A1:2017 EN 62493:2015 |
| Standards (EMC) | EN 61000-3-2:2014, EN 61000-3-3:2013 EN 55015:2013/A1:2015, EN 61547:2009 |
| Performance | EN 62384 |
| Approval Marks | CE |
| RoHS Compliant | Yes |
Installation
| Cable Length, input side | 300 mm |
| Cable Length, output side | 300 mm |
| Cable Cross-Section, input side | 3x 1.0 mm² |
| Cable Cross-Section, output side | 2x 1.0 mm² |
| Cable Preparation Length, input side | 10 mm tinned |
| Cable Preparation Length, output side | 10 mm tinned |

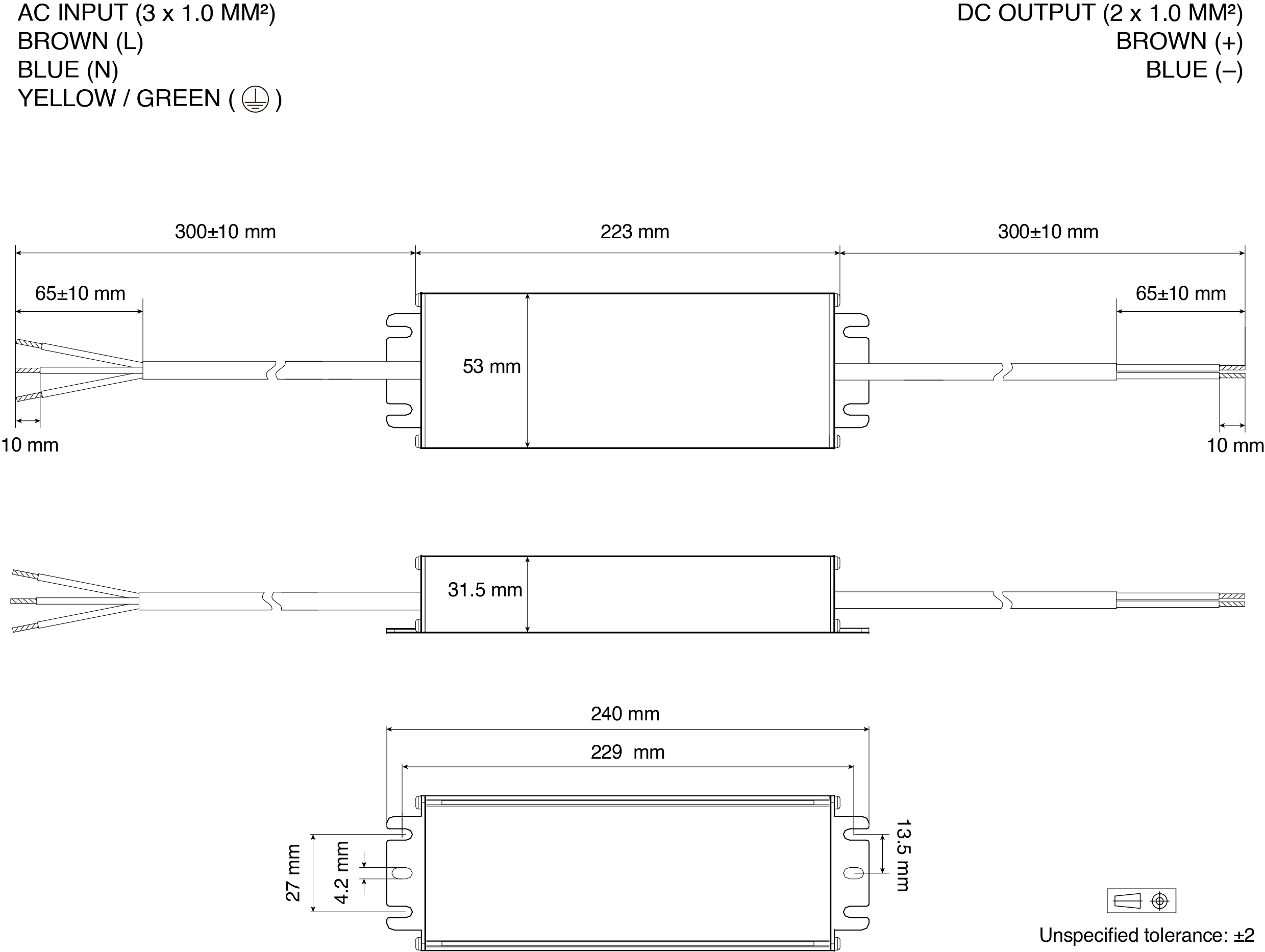

Dimension
For business customer, who wants to order our porducts in large quantities or learn more about our new products, please contact us and download our product catalog.
