SS-6V24 (24V 6W)

In stock

Menge Preis
1 - 4 4,99
5 - 9 4,79
10 - 19 4,59
20 + 4,39

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LED Trafo 24V 6W constant voltage for LED Strip Lamp Furniture installation LED Driver Treiber Transformator

SS-6V24

LED power supply for 24 Vdc constant voltage
0.25 A (6 W) max., IP20, Built-in installation, non-dimmable

Electrical Data

Input voltage (nominal) 220…240 Vac
Input voltage (range) 176…284 Vac
Mains Frequency 50/60 Hz
Power Factor (λ) ≥ 0.8   220…240 Vac
Input Current 0.08 A max.   Full Load, 176 Vac
No-load loss ≤0.5 W
Inrush Current 10 A max.
Leakage Current < 0.7 mA   240 Vac
Output Voltage 24 Vdc
Output Current 0…0.25A
Output Power (nominal) 6 W max.
Efficiency ≥ 75 %
Life Time > 44,000 h    45 °C
Dimmable No



Operating Condition

LED Trafo 24V 6W constant voltage for LED Strip Lamp Furniture installation LED Driver Treiber Transformator

Operating Ambient Temperature (ta) -20…+45 °C
Max. Surface Temperature (tc) 80 °C
Permitted rel. Humidity 20…90 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overload Protection Yes *   105..150%
Overvoltage protection Yes *  >25.2 Vdc


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval Marks CE
RoHS Compliant Yes



Installation

LED Trafo 24V 6W constant voltage for LED Strip Lamp Furniture installation LED Driver Treiber Transformator

Cable Length, input side 150 mm
Cable Length, output side 95 mm
Cable Cross-section, input side 2 x 0.5 mm² (20 AWG)
Cable Cross-section, output side 2 x 0.34 mm² (22 AWG)
Cable Preparation length, input side 6 mm tinned
Cable Preparation Length, output side 6 mm tinned

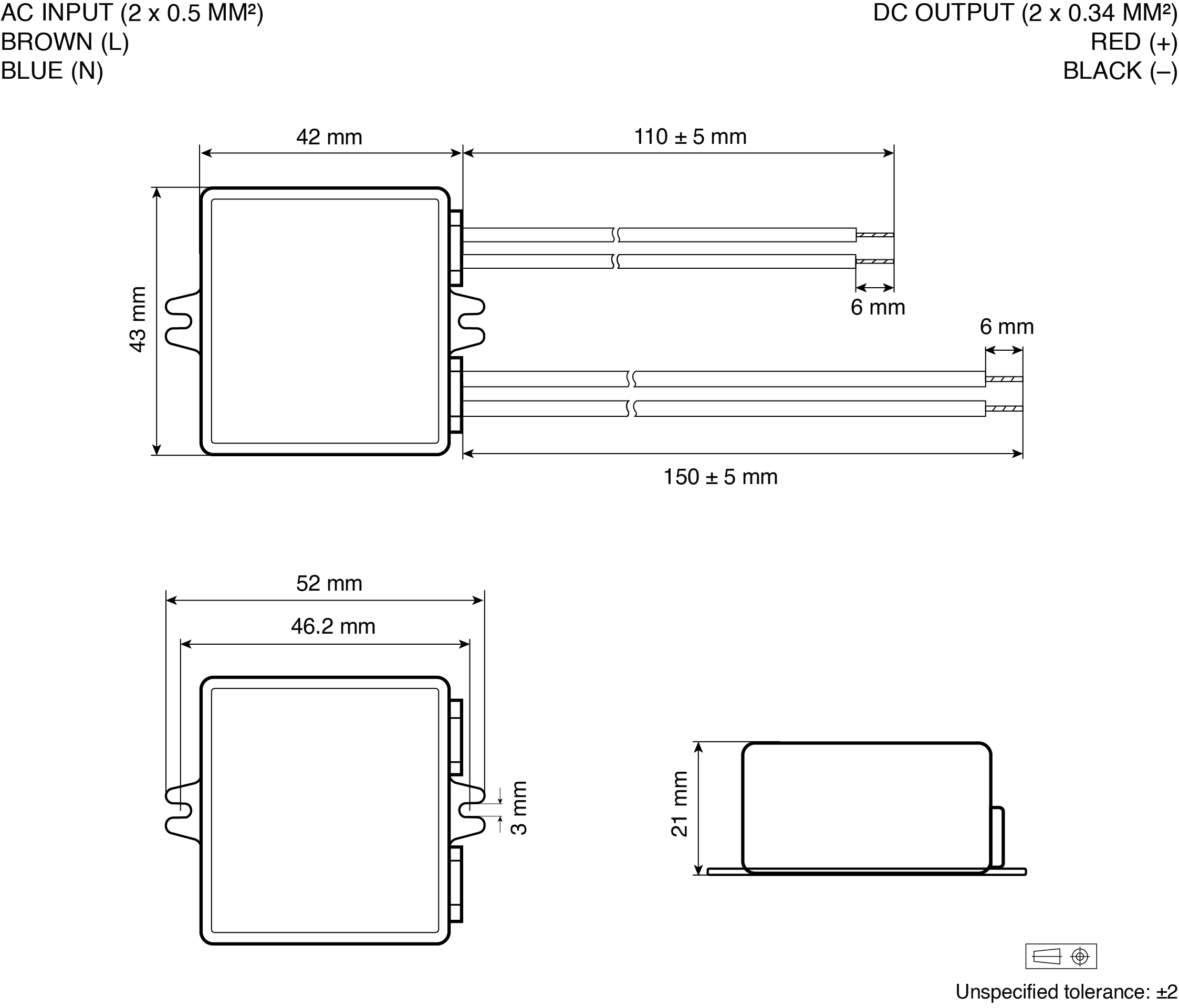

Dimension



Connection



LED power supply SS-6V12: LED Trafo transformer, input 220 – 240 V (AC), output 12 V (DC), not dimmable, installation installation.
Power: Ideal for LEDs (strips, GU5,3 / MR16, G4 / MR11) up to 6 W, parallel connection possible.Our products can be used with full load.
Assembly: dimensions 52 x 44 x 22 mm (L x W x H), ambient temperature (ta) -10 – +45 °C.
Safety: Protection class IP20, protection device overload protection, surge protection and short circuit protection.
Quality: CE mark; Service life > 30.000 hours; Surface temperature (tc) 80°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage 6w 6 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 6W compact size.

For business customer, who wants to order our porducts in large quantities or learn more about our new products, please contact us and download our product catalog.
