Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock
Menge | Preis |
1 - 4 | 26,25€ |
5 - 9 | 25,39€ |
10 - 19 | 24,59€ |
20 + | 23,99€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock

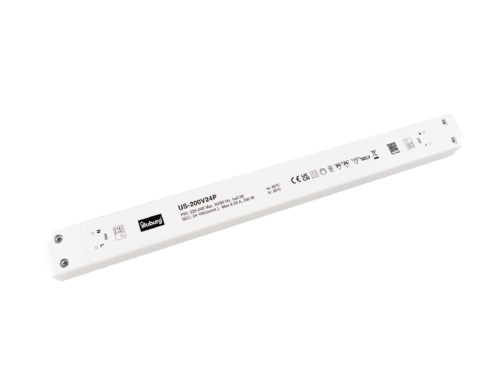

LED Trafo 24V 200W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
US-200V24T
LED power supply for 12 Vdc constant voltage
8.33 A (200 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | 0.95 Full Load |
Input Current | 1.3 A max. Full Load |
No-load loss | ≤0.5 W |
Inrush Current | 100 A max. |
Output Voltage | 24 Vdc |
Output Current | 0…8.33 A |
Output Power (nominal) | 200 W max. |
Efficiency | ≥ 93 % |
Life Time | 30,000 h Full Load |
Dimmable | No |
Operating Condition
LED Trafo 24V 200W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
Operating Ambient Temperature (ta) | -25…+45 °C |
Max. Surface Temperature (tc) | 90 °C |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * |
Overvoltage protection | Yes * |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 62493, EN57710 |
Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
Approval Marks | CE, UKCA |
Installation
LED Trafo 24V 200W constant voltage for LED Strip Lamp flicker-free super slim Furniture installation LED Driver Treiber Transformator
Type of Installation | Independent installation |
Type of Connection | Screw terminal |
Cable Cross-section, input side | 0.75…1.5 mm² |
Cable Cross-section, output side | 0.75…1.0 mm² |
Cable Preparation length, input side | 6.0 mm |
Cable Preparation length, output side | 6.0 mm |
Dimension
Connection
