LS-40C700 (700mA 40W)

In stock

Menge Preis
1 - 4 9,89
5 - 9 9,59
10 - 19 9,19
20 + 8,79

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LS-40C700

LED power supply for 700 mA constant current
34.5…57.5 Vdc, 24.2…40.3 W, IP20, independent installation, non-dimmable
Flicker-free according to IEEE 1789

Electrical Data

Input voltage (range) 176…264 Vac
Rated input voltage (AC) 220…240 Vac
Rated input voltage (DC) 176…280 Vdc
Mains Frequency 50/60 Hz
Power Factor (λ) ≥ 0.95   Full Load, 240 Vac
Input Current 0.32 A max.   Full Load, 176 Vac
Inrush Current 40 A max.
Leakage Current < 0.7 mA   240 Vac
Output Voltage 34.5…57.5 Vdc
Output Current 700 mA
Output Power (nominal) 24.2…39.2 W
Efficiency ≥ 88 %
Life Time > 50,000 h    45 °C
Dimmable No



Operating Condition

Operating Ambient Temperature (ta) -20…+45 °C
Max. Surface Temperature (tc) 85 °C
Permitted rel. Humidity 20…90 %
Protection Class II
Type of Protection IP20



Protection

Short Circuit Protection Yes *
Overload Protection Yes *   103..120%
Overvoltage protection Yes *  >67 Vdc


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD) EN 61347-1, EN 61347-2-13
EN 62384
Standards (EMC) EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval Marks CE, ENEC
RoHS Compliant Yes



Installation

Type of installation Independent installation
Type of connection Spring-loaded terminal
Cable Cross-Section, input side 0.5…1.5 mm²
Cable Cross-Section, output side 0.5…1.5 mm²
Cable Preparation Length, input side 6…8 mm
Cable Preparation Length, output side 6…8 mm

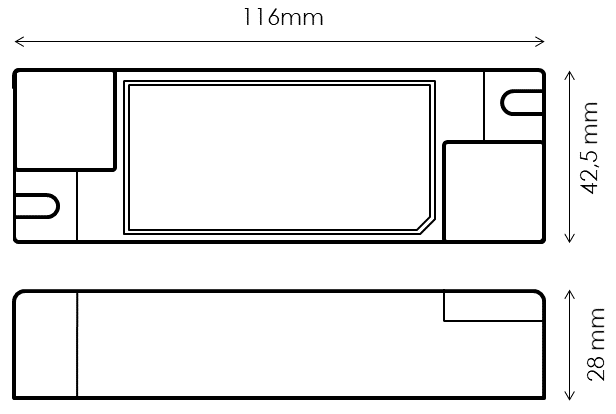

Dimension



Connection
