LS-20C300 (300mA 21W)
7,77€
Only 1 left in stock
Only 1 left in stock
Description
LED Trafo 20W 300mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
LS-20C300
LED power supply for 300 mA constant current
42…70 Vdc, 12.6…21 W max., IP20, independent installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical data
| Rated input voltage | 220…240 Vac |
| Range of input voltage (AC) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Power factor (λ) | 0.85C Ful lload, 240 Vac |
| Input current | 0.18 A max. Full load, 176 Vac |
| Inrush current | 10 A max. |
| Leakage current | < 0.7 mA 240 Vac |
| Output voltage | 42…70 Vdc |
| Output current | 300 mA |
| Output power (nominal) | 12.6…21 W max. |
| Efficiency | ≥ 85 % |
| Life time | > 30,000 h 45°C |
| Dimmable | No |
LED Trafo 20W 300mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Operating condition
| Operating temperature range (ta) | -20…+45 °C |
| Max. Surface temperature (tc) | 75 °C |
| Permitted rel. humidity | 20…90 % |
| Protection class | II |
| Type of protection | IP20 |
Protection
| Short circuit protection | Yes * |
| Overload protection | Yes * 103…120 % |
| Overvoltage protection | Yes * >80 Vdc |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
LED Trafo 20W 300mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13, EN 62384 EN 62493, EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval marks | CE, UKCA |
| RoHS compliant | Yes |
Installation
| Type of installation | Independent installation |
| Type of connection | Spring-loaded terminal |
| Cable cross-section, input side | 0.75…1.5 mm² |
| Cable cross-section, output side | 0.75…1.5 mm² |
| Cable preparation length, input side | 6…8 mm |
| Cable preparation length, output side | 6…8 mm |
Dimension

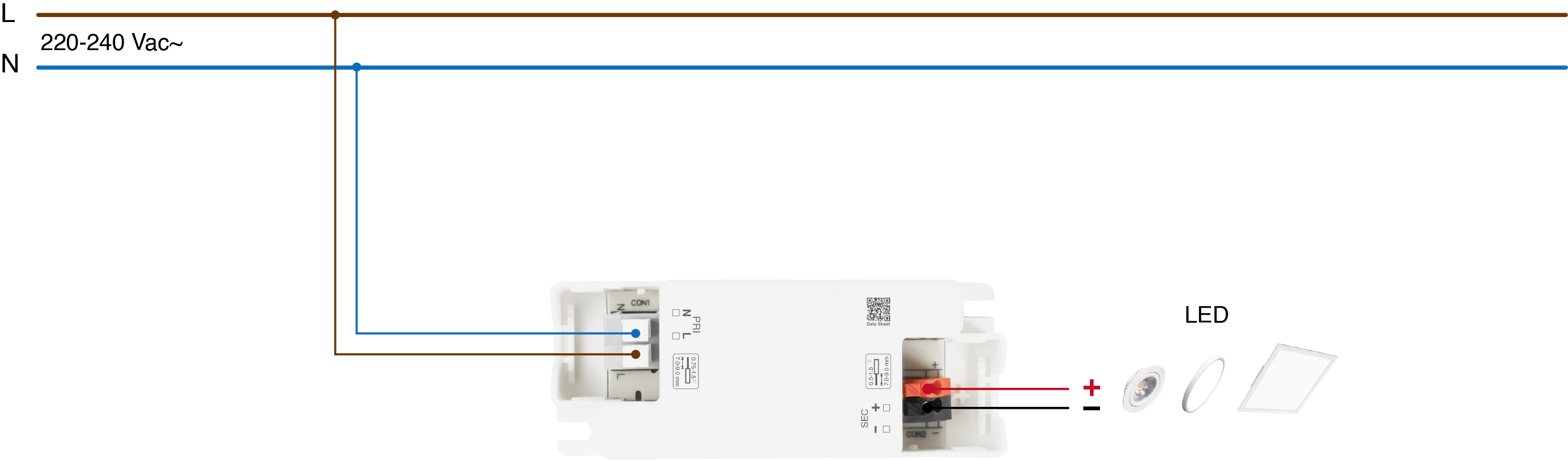

Connection
