LS7-100V12E (12V 100W)

In stock

MengePreis
1 - 418,99
5 - 918,69
10 - 1918,39
20 +17,99

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

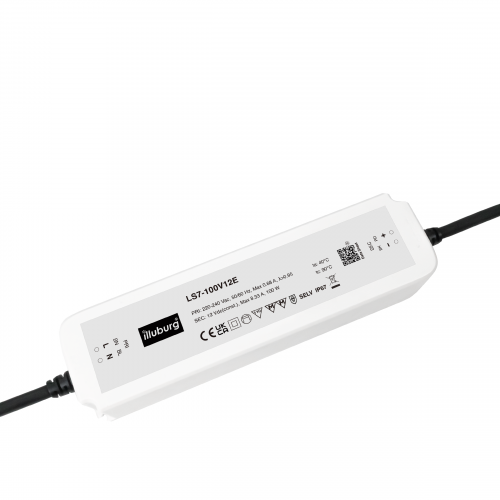

LS7-100V12E

LED power supply for 12 Vdc constant voltage
8.33 A (100 W) max., IP67, built-in installation, non-dimmable

Electrical Data

Input Voltage (range)176…264 Vac
Rated input voltage (AC)220…240 Vdc
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.95    230 Vac
Input Current≤ 0.68 A    176 Vac
No-Load Loss< 1 W
Inrush Current< 60 A
Output Voltage12 Vdc
Output Current0…8.33 A
Output Power (nominal)100 W max.
Efficiency≥ 87%
Life Time≥ 30,000 h
DimmableNo



Operating Condition

Operating Ambient Temperature (ta)-40…+40 °C
Max. Surface Temperature (tc)90 °C
Permitted rel. humidity during operation5…100%
Protection ClassClass II
Type of ProtectionIP67



Protection

Short Circuit ProtectionYes(2)
Overload ProtectionYes(2)
Overvoltage ProtectionYes(1)
Overheating ProtectionYes(1)


(1) The output turns off and can be restored after correcting the problem and restarting the power supply.
(2) The output switches to “Hiccups” mode and can be restored after the problem has been resolved and the power supply restarted.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN62493, EN 62384, EN 55015
EN 61000-3-2, EN 61000-3-3
EN 61547, EN 57710
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

Type of installationBuilt in installation
Type of connectionConnected double instulated cable   2 x 1.0 mm²
Cable length, input side300 ± 10 mm
Cable length, output side300 ± 10 mm
Cable preparation length, input side10 mm
Cable preparation length, output side10 mm

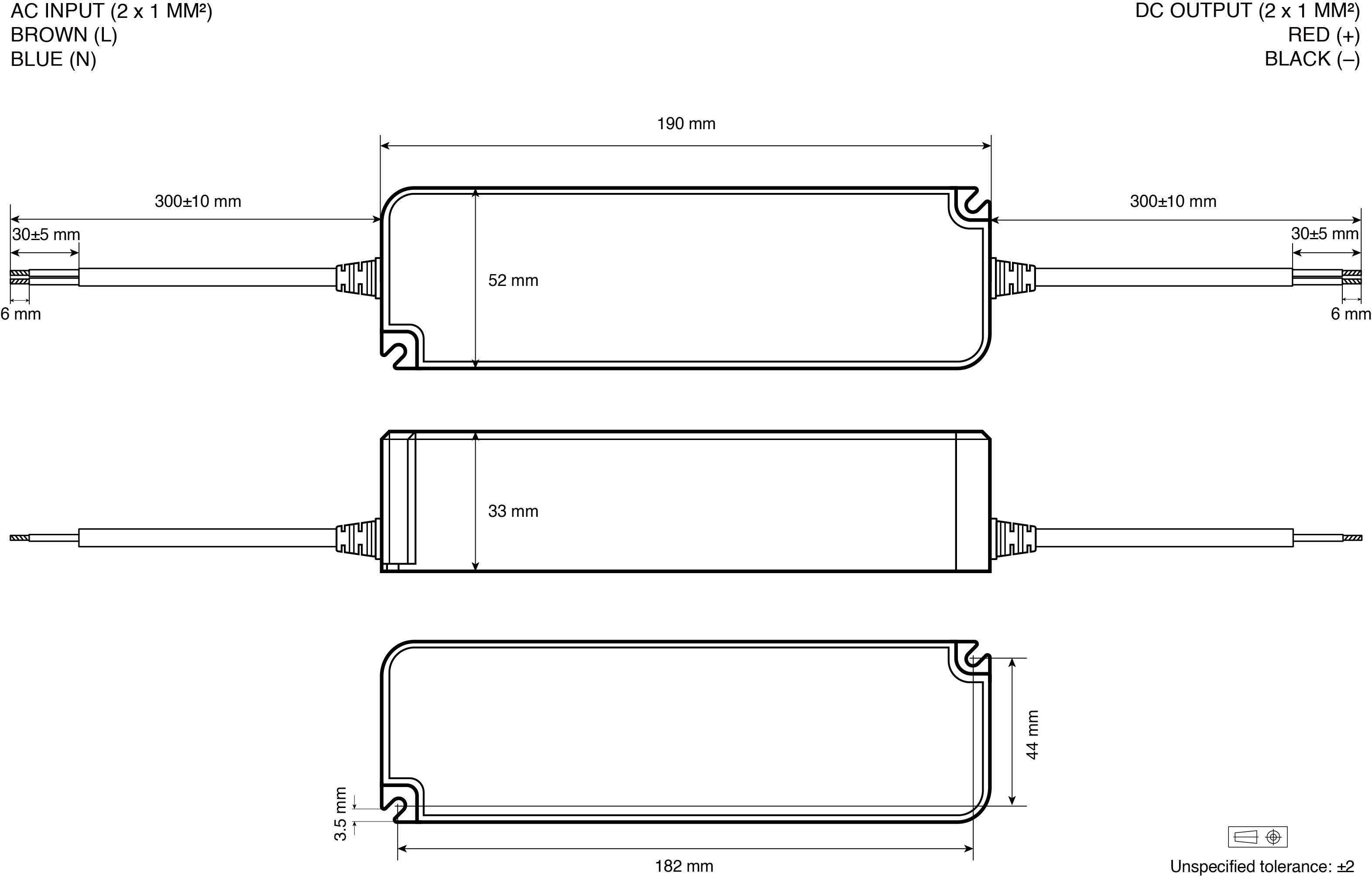

Dimension
