LED Driver DALI/PUSH Dimmable 150-500mA 9W, IP20

LED Driver DALI/PUSH Dimmable 150-500mA 9W, IP20

Modell: LS-8CS-DALI2

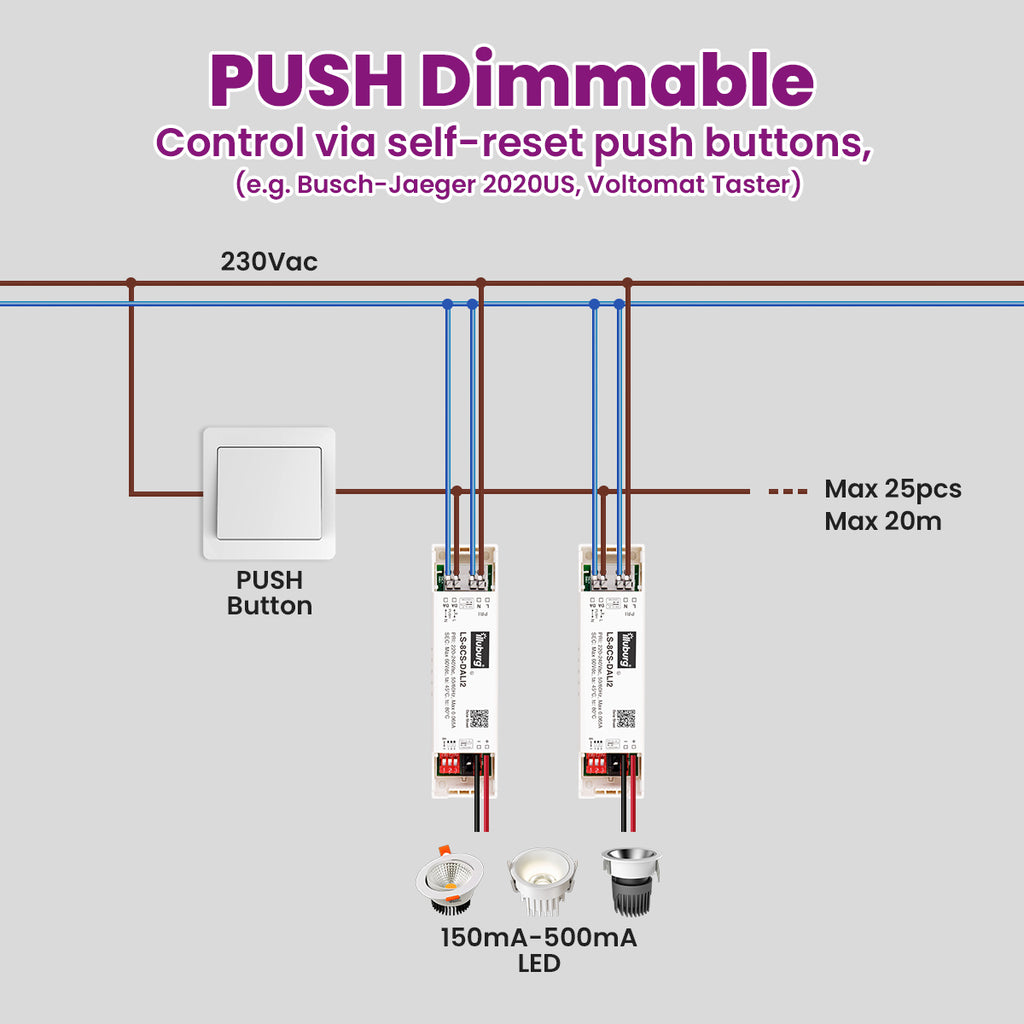

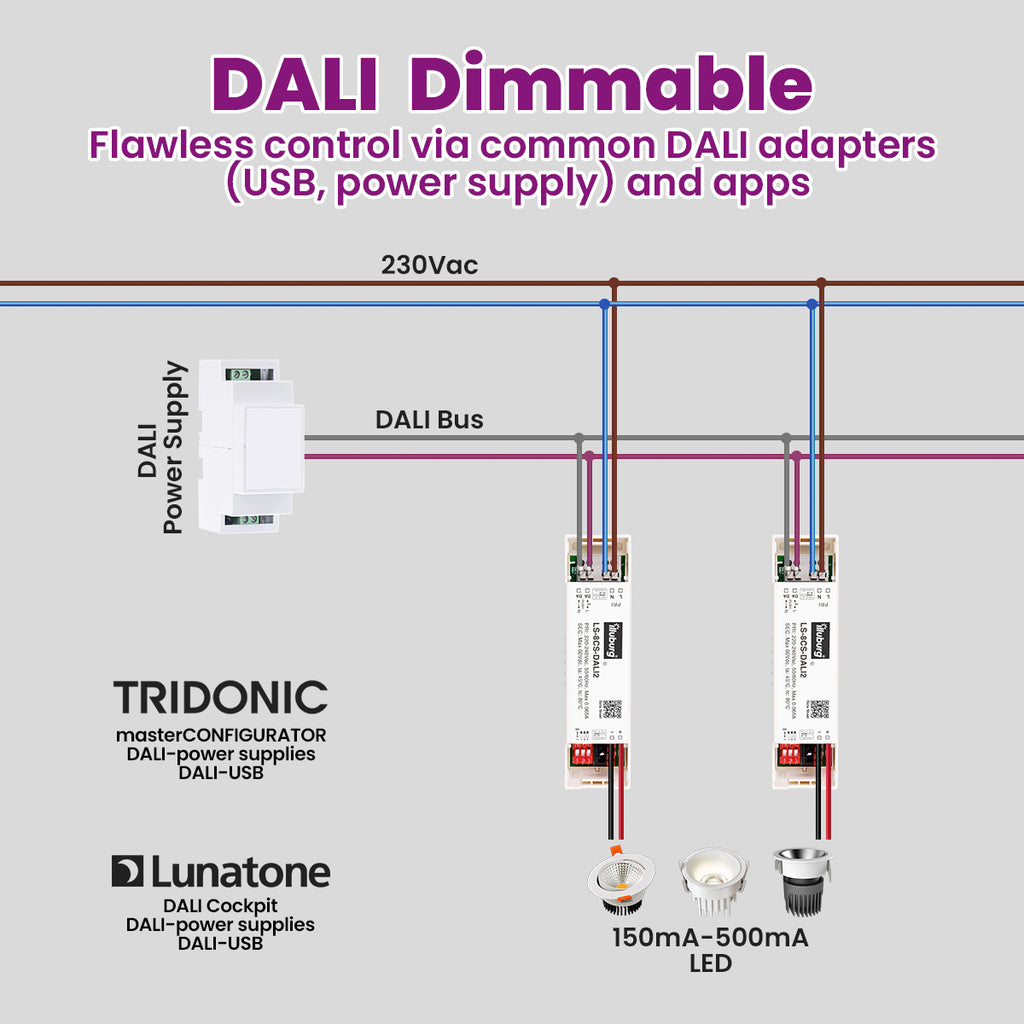

  • Dimmable: Supports both DALI and Push-Dim control for convenient lighting management

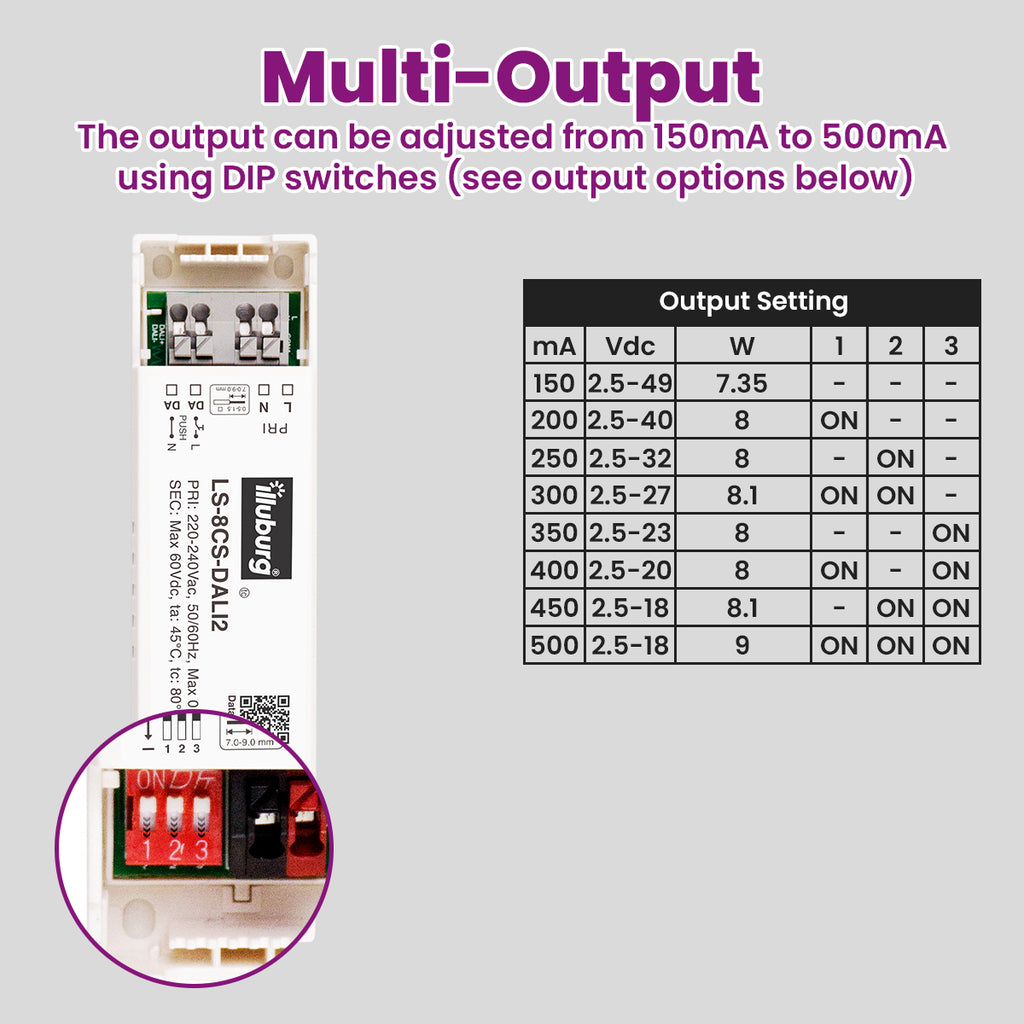

  • Flexible: Output current adjustable from 150 to 500 mA via DIP switches

  • Simple: Screwless terminals for fast and easy installation

  • Compact: Ultra-compact dimensions of just 115×30×21 mm, ideal for installations in confined spaces

  • Safety: Short-circuit, overload, overheating and overvoltage protection

  • Comfort: Flicker-free according to IEEE 1789, helping reduce eye strain and improving video recording quality

€12,89 / pc excl. VAT
€15,34 / pc incl. 19% VAT
plus Shipping
From Net/pc Gross/pc
1 €12,89 €15,34
5 €12,59 €14,98
10 €12,39 €14,74
20 €12,09 €14,39
◉ In stock
Specifications
Input Voltage
220...240 Vac
Input Current
0,065 A max.
Output Voltage
150 mA 2,5-49 Vdc
200 mA 2,5-40 Vdc
250 mA 2,5-32 Vdc
300 mA 2,5-27 Vdc
350 mA 2,5-23 Vdc
400 mA 2,5-20 Vdc
450 mA 2,5-18 Vdc
500 mA 2,5-18 Vdc
Output Current
150...500 mA
Output Power
150 mA 0,38-7,35 W
200 mA 0,5-8 W
250 mA 0,63-8 W
300 mA 0,75-8,1 W
350 mA 0,875-8 W
400 mA 1-8 W
450 mA 1,13-8,1 W
500 mA 1,25-9 W
Dimming method
DALI, PUSH
IP Rating
IP20
Dimensions
Dimension Graph for LED Driver DALI/PUSH Dimmable 150-500mA 9W, IP20
Downloads
PDF Icon Operating Manual
