LED Driver Slim TRIAC Dimmable 24V 75W 3.125A, IP20

LED Driver Slim TRIAC Dimmable 24V 75W 3.125A, IP20

Modell: US-75V24-D4

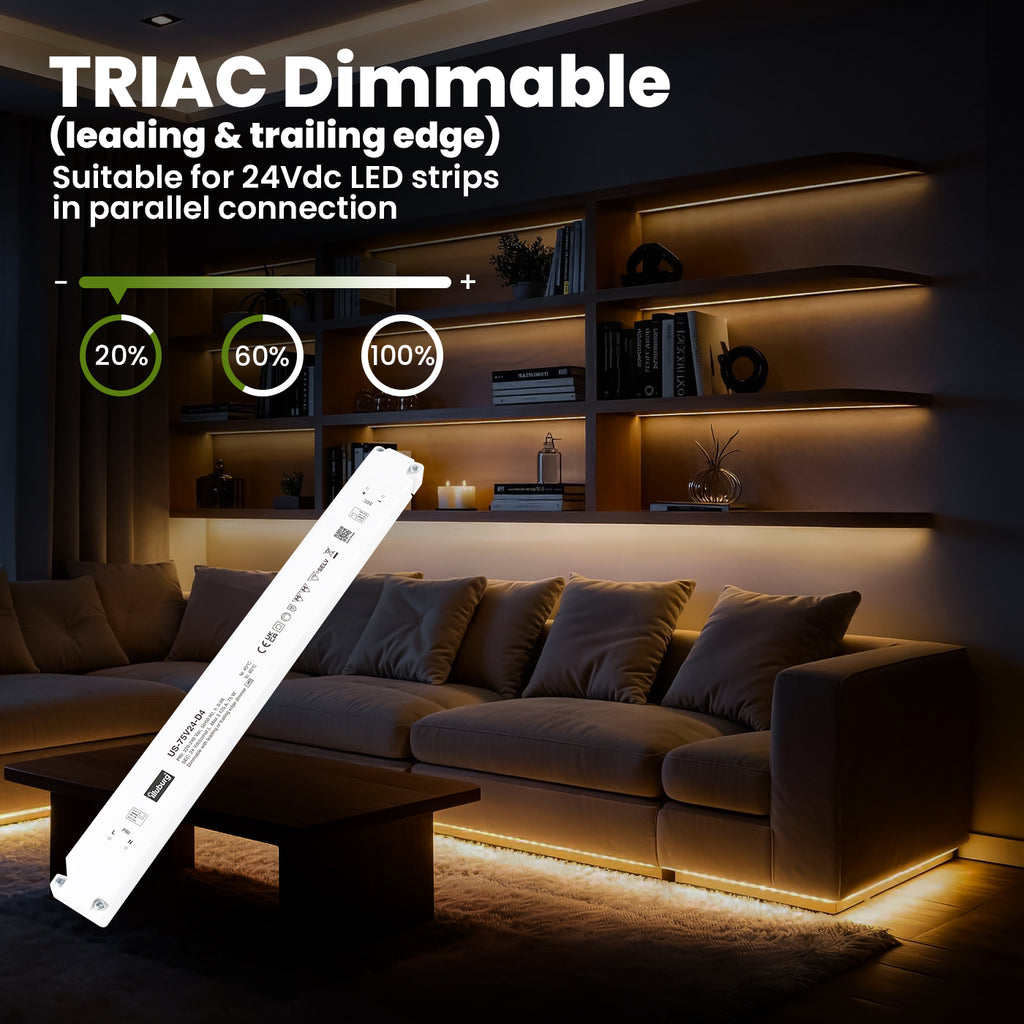

  • Dimmable: Smooth, flicker-free dimming via leading-edge and trailing-edge phase-cut

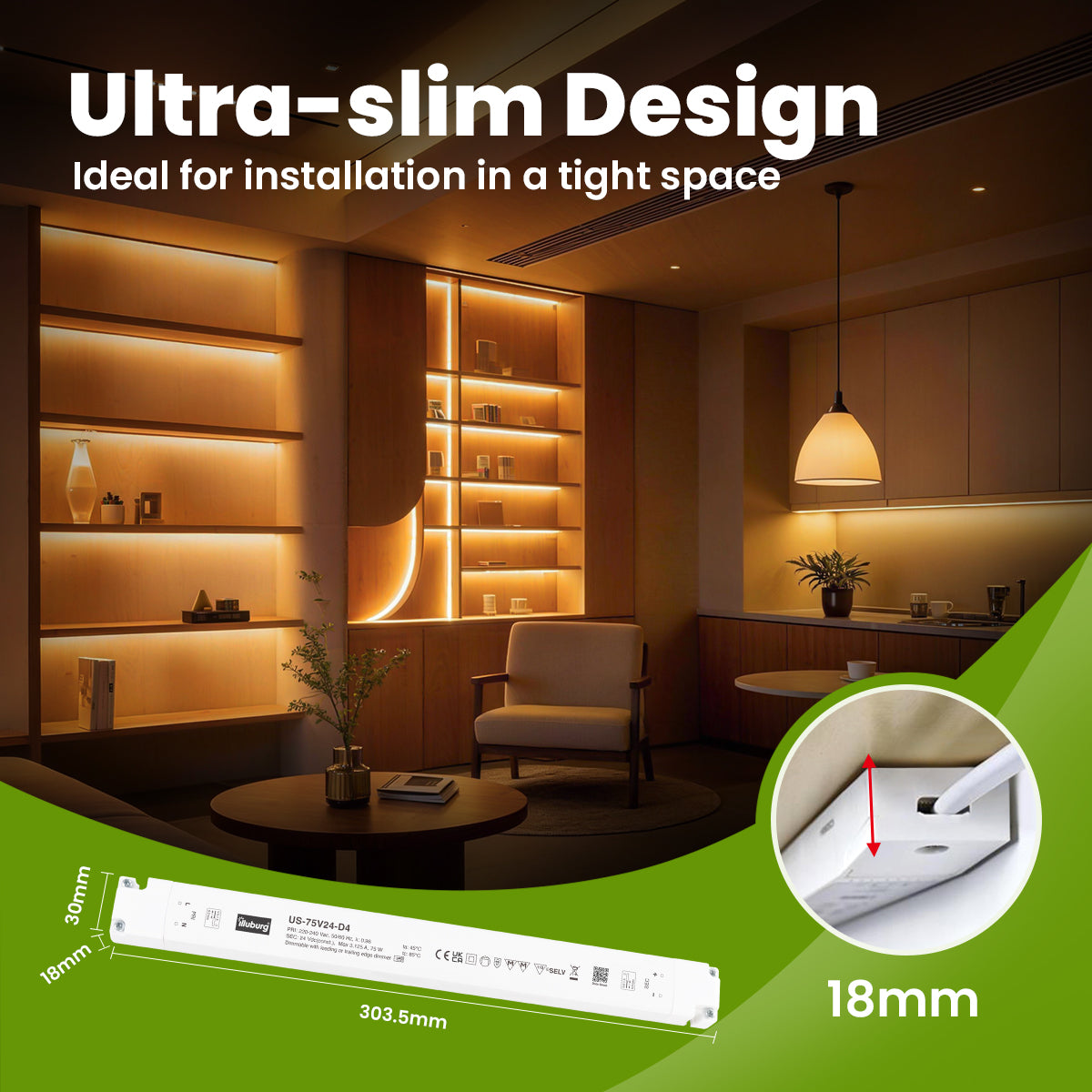

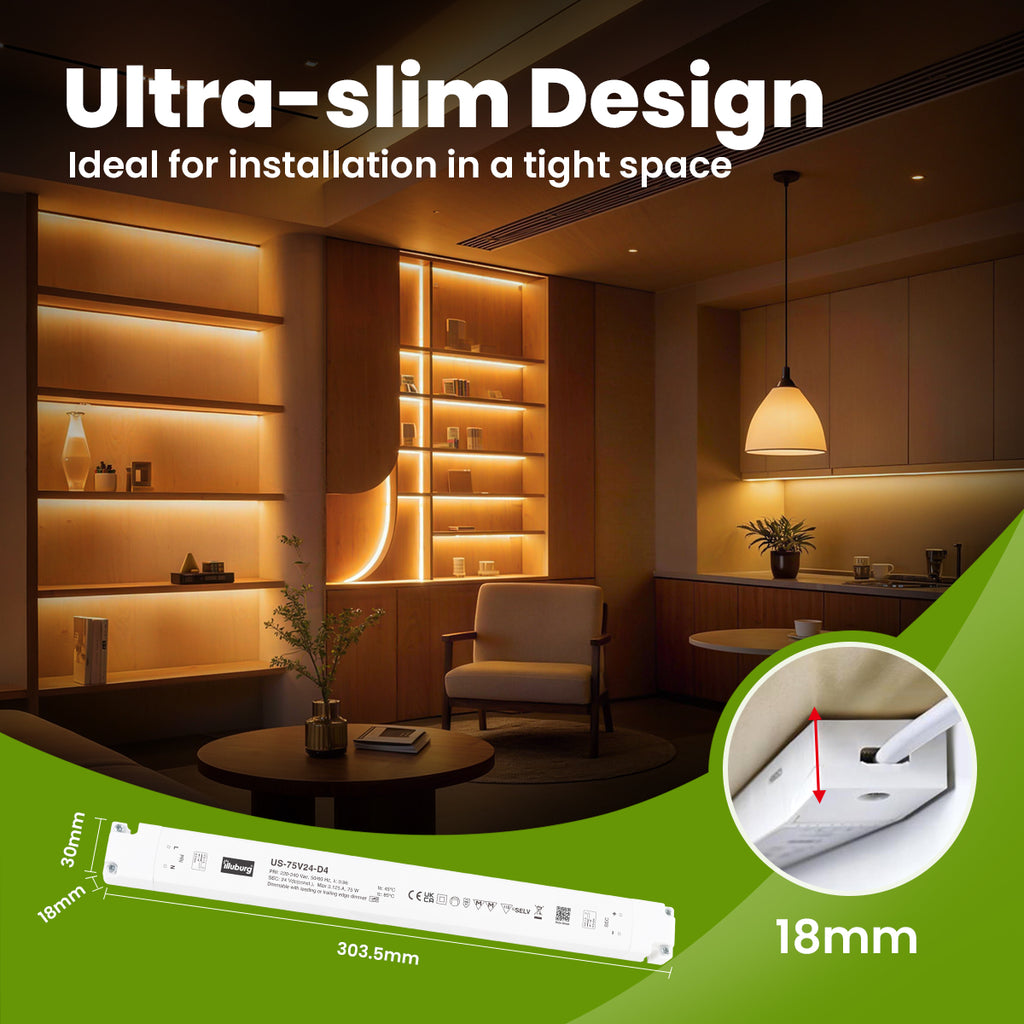

  • Ultra-slim: Compact dimensions of just 304x30x19 mm, ideal for hidden installations

  • Safety: Short-circuit, overload, overvoltage and overheating protection. Suitable for furniture installation

  • Comfort: Flicker-free according to IEEE 1789, helping reduce eye strain and improving video recording quality

€24,99 / pc excl. VAT
€29,74 / pc incl. 19% VAT
From Net/pc Gross/pc
1 €24,99 €29,74
5 €24,59 €29,26
10 €24,19 €28,79
20 €23,79 €28,31
◉ In stock
Specifications
Input Voltage
220...240 Vac
Input Current
0,4 A max.
Output Voltage
24 Vdc
Output Current
0,625...3,125 A
Output Power
15...75 W
Dimming method
TRIAC
IP Rating
IP20
Dimensions
Dimension Graph for LED Driver Slim TRIAC Dimmable 24V 75W 3.125A, IP20
