Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock
Menge | Preis |
1 - 4 | 6,93€ |
5 - 9 | 6,69€ |
10 - 19 | 6,49€ |
20 + | 6,29€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
In stock

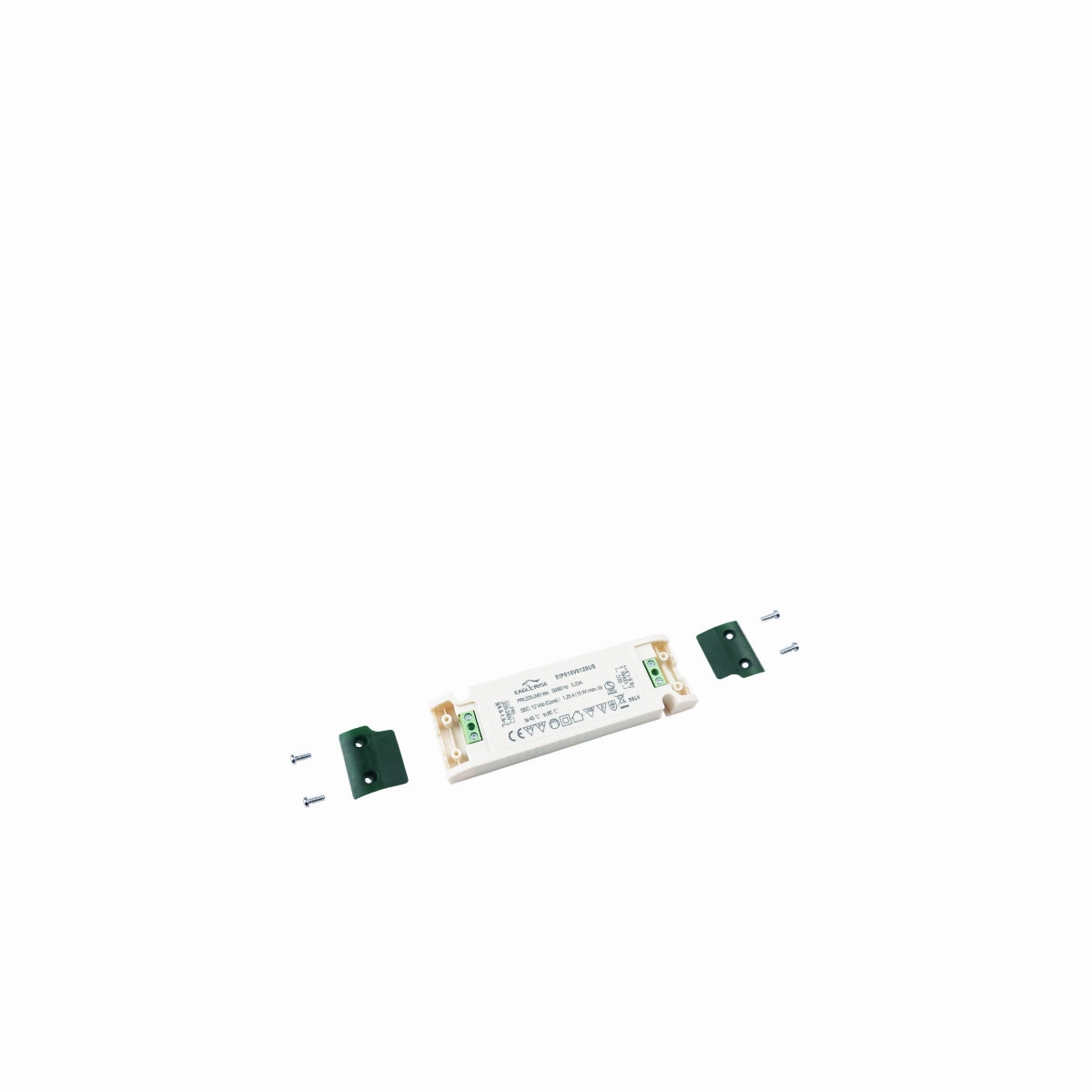

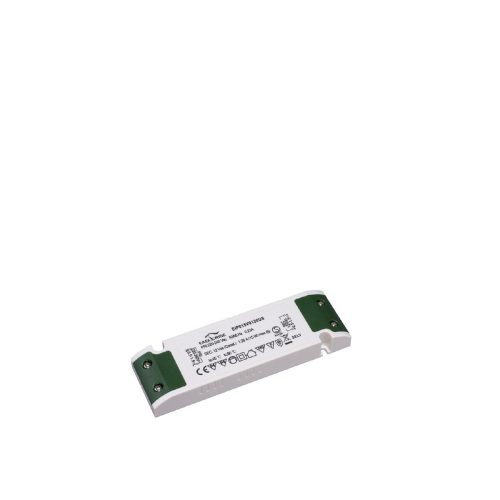

LED Trafo 12V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
EIP015V0120US
LED power supply for 12 Vdc constant voltage
1.25 A (15 W) max., IP20, independent installation, non-dimmable
Electrical Data
Input voltage (nominal) | 220…240 Vac |
Input voltage (range) | 176…264 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | 0.5 220…240 Vac |
Input Current | 0.23 A max. Full Load, 176 Vac |
No-load loss | ≤0.3 W |
Inrush Current | 20 A max. |
Leakage Current | < 0.5 mA 240 Vac |
Output Voltage | 12 Vdc |
Output Current | 0…1.25 A |
Output Power (nominal) | 15 W max. |
Efficiency | ≥ 84 % |
Life Time | > 30,000 h 45 °C |
Dimmable | No |
Operating Condition
LED Trafo 12V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
Operating Ambient Temperature (ta) | -10…+45 °C |
Max. Surface Temperature (tc) | 80 °C |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overload Protection | Yes * 105…150 % |
Overvoltage protection | Yes * >12.6 Vdc |
Overheating protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Standards (LVD) | EN 61347-1, EN 61347-2-13 |
Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 EN 55015, EN 61547 |
Approval Marks | CE, SEMKO (Intertek) |
RoHS Compliant | Yes |
Installation
LED Trafo 12V 15W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator
Type of Installation | Independent installation |
Type of Connection | Screw terminal |
Cable Cross-section, input side | 0.75…1.5 mm² |
Cable Cross-section, output side | 0.75…1.5 mm² |
Cable Preparation length, input side | 6…8 mm |
Cable Preparation length, output side | 6…8 mm |
Dimension
Connection
LED power supply EIP015V0120US: LED transformer constant voltage, input 220 – 240 V (AC), output 12 V (DC), non-dimmable, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 15 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 130 x 40 x 16 mm (L x W x H), ambient temperature (ta) -10 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device overload protection, surge protection, short circuit protection and overtemperature protection.
Quality: CE, Intertek, MM approval; Service life > 30.000 hours; Surface temperature (tc) 80°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage super slim 15w 15 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 15W constant voltage slim.
