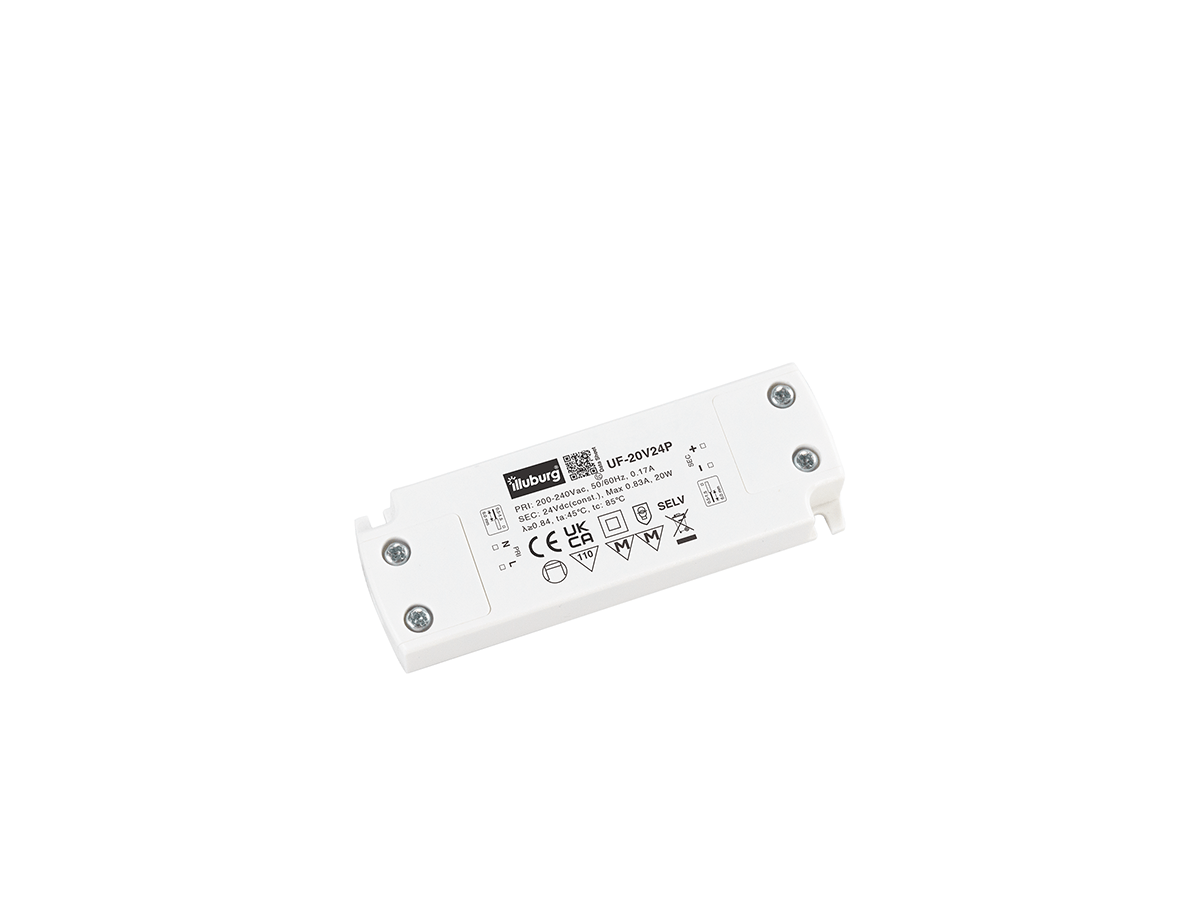

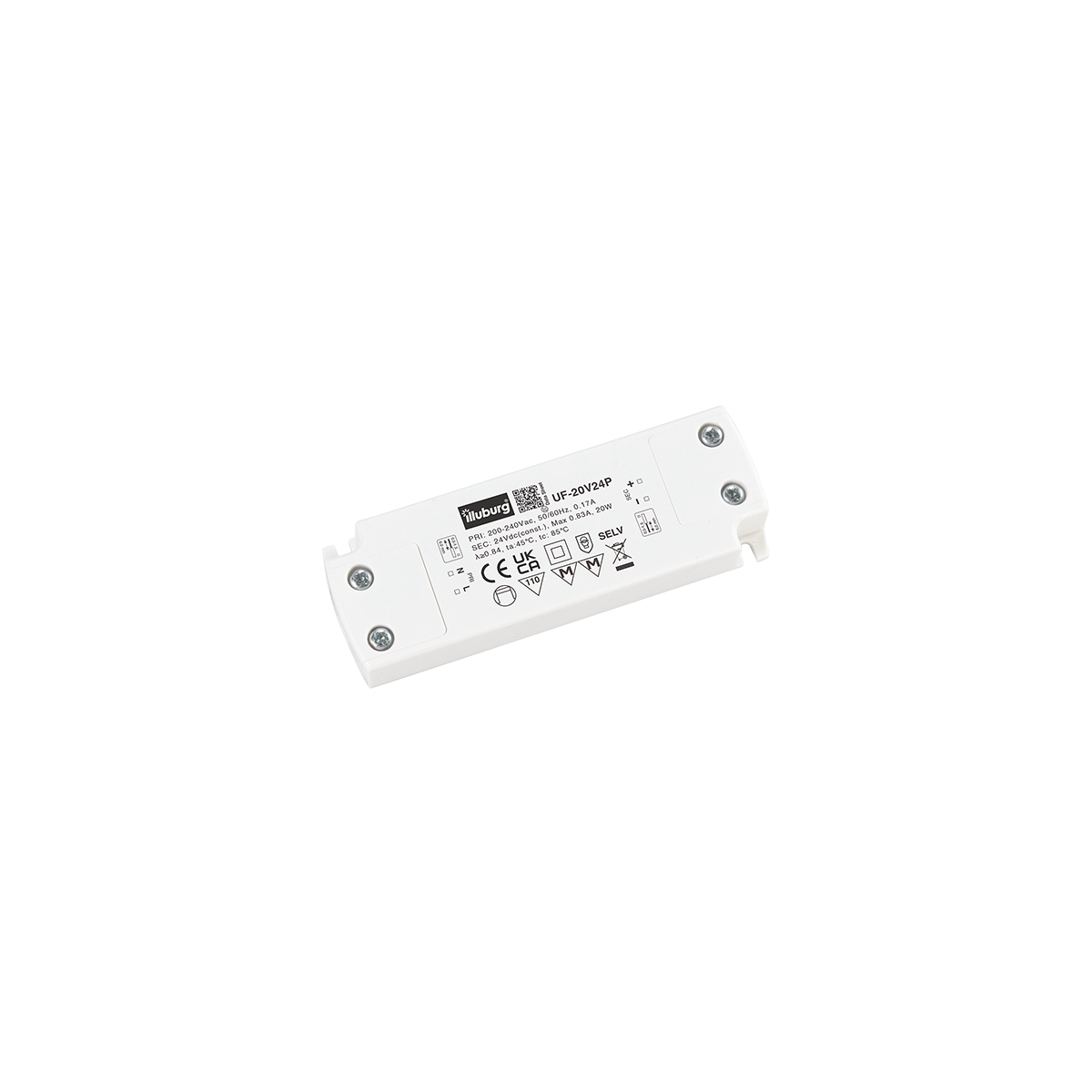

UF-20V24 (24V 20W)

7,77

In stock

MengePreis
1 - 47,77
5 - 97,69
10 - 197,59
20 +7,49



Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LED Trafo 24V 20W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator

UF-20V24

LED power supply for 24 Vdc constant voltage
0.83 A (20 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789

Electrical Data

Input voltage (nominal)220…240 Vac
Input voltage (range)198…264 Vac
Mains Frequency50/60 Hz
Power Factor (λ)≥ 0.9   Full Load, 220…240 Vac
Input Current0.4 A max.   Full Load, 220…240 Vac
No-load loss≤ 0.5 W
Output Voltage12 Vdc
Output Current0…0.83 A
Output Power (nominal)20 W max.
Efficiency≥ 79 %
Life Time> 30,000 h
DimmableNo



Operating Condition

LED Trafo 12V 20W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator

Operating Ambient Temperature (ta)-20…+45 °C
Max. Surface Temperature (tc)85 °C
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

StandardsEN 61347-1, EN 61347-2-13
EN 62493, EN 55015, EN61547
EN 61000-3-2, EN 61000-3-3
Approval MarksCE, UKCA
RoHS CompliantYes



Installation

LED Trafo 12V 20W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator

Type of InstallationIndependent installation

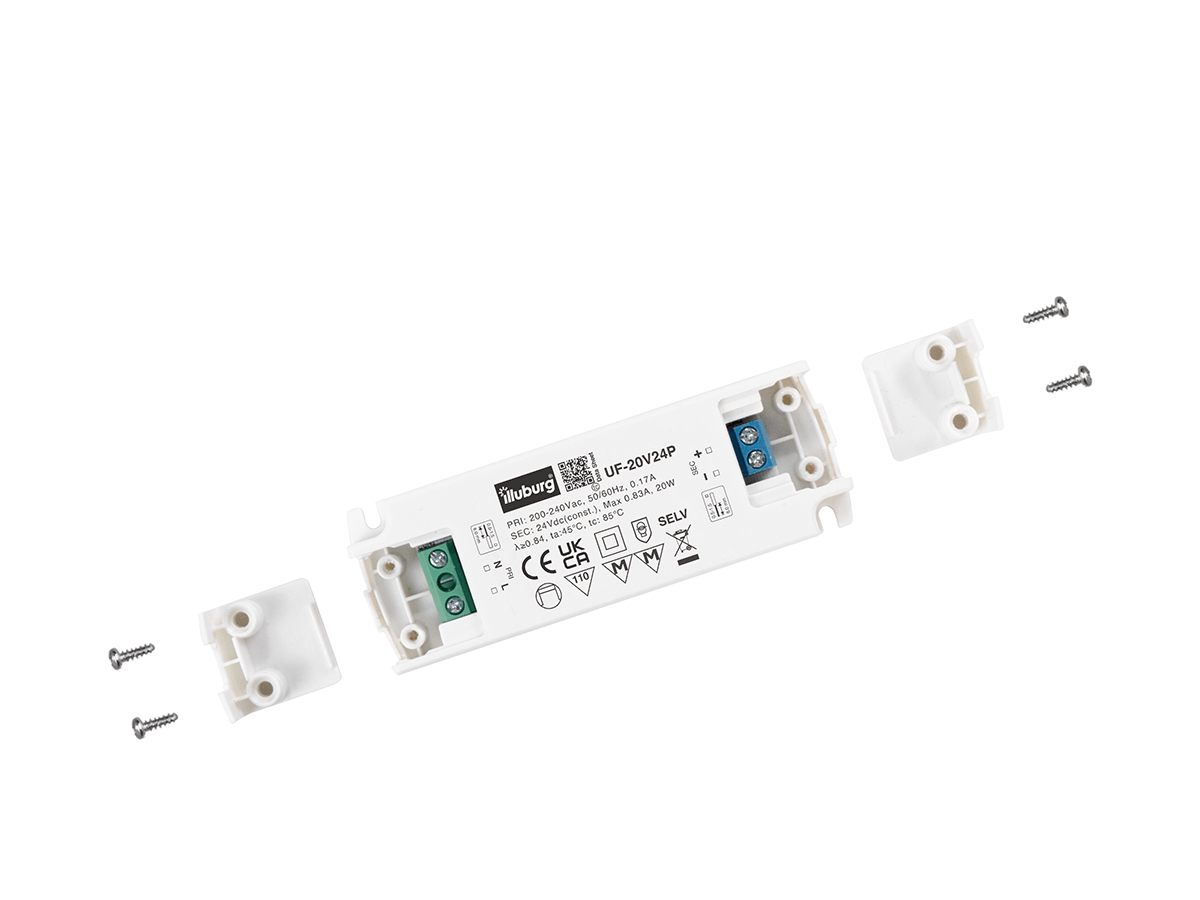

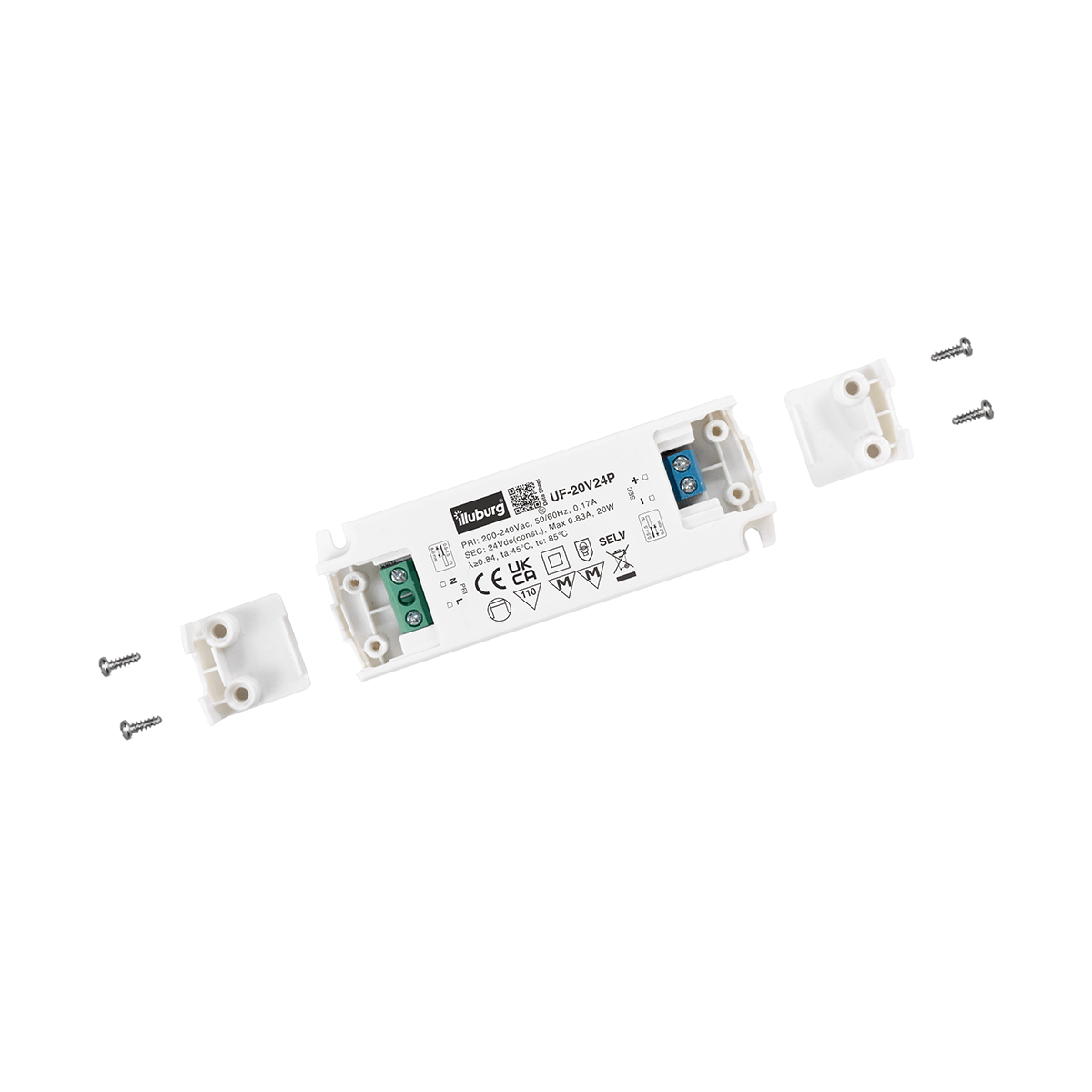

Type of ConnectionScrew terminal
Cable Cross-section, input side0.5…1.5 mm²
Cable Cross-section, output side0.5…1.5 mm²
Cable Preparation length, input side7.0…9.0 mm
Cable Preparation length, output side7.0…9.0 mm



Dimension



Connection



LED power supply UF-20V12: LED transformer constant voltage, input 220 – 240 V (AC), output 12 V (DC), non-dimmable, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 20 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 103 x 36 x 16 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device equipped with overload protection, short circuit protection and overheating protection.
Quality: CE, UKCA, MM approval; Service life > 30.000 hours; Surface temperature (tc) 85°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage super slim 15w 20w 15 20 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 20W constant voltage slim.
