LS-20C700 (700mA 20W)
7,77€
In stock
In stock
Description

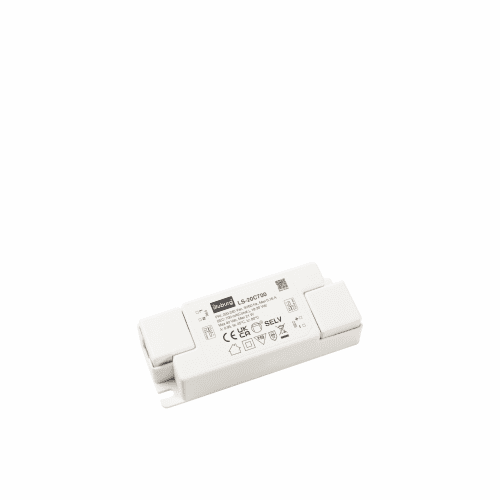

LS-20C700
LED power supply for 700 mA constant current
18…30 Vdc, 12.6…21 W, IP20, independent installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical Data
| Input voltage (range) | 176…264 Vac |
| Rated input voltage (AC) | 220…240 Vac |
| Rated input voltage (DC) | 176…280 Vdc |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.9 Full Load, 240 Vac |
| Input Current | 0,16 A max. Full Load, 176 Vac |
| Inrush Current | 20 A max. |
| Leakage Current | < 0.7 mA 240 Vac |
| Output Voltage | 18…30 Vdc |
| Output Current | 700 mA |
| Output Power (nominal) | 12.6…21 W |
| Efficiency | ≥ 85 % |
| Life Time | > 50,000 h 45 °C |
| Dimmable | No |
Operating Condition
| Operating Ambient Temperature (ta) | -20…+45 °C |
| Max. Surface Temperature (tc) | 80 °C |
| Permitted rel. Humidity | 20…90 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overload Protection | Yes * 103..120% |
| Overvoltage protection | Yes * >40 Vdc |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Standards (LVD) | EN 61347-1, EN 61347-2-13 EN 62384 |
| Standards (EMC) | EN 61000-3-2, EN 61000-3-3 EN 61000-4-2, EN 61000-4-5 EN 55015, EN 61547 |
| Approval Marks | CE, KEMA，ENEC |
| RoHS Compliant | Yes |

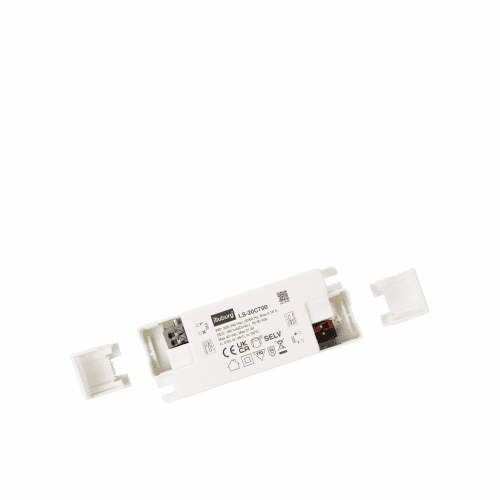

Installation
| Type of installation | Independent installation |
| Type of connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 6…8 mm |
| Cable Preparation Length, output side | 6…8 mm |
Dimension
Connection
