| Menge | Preis |
| 1 - 4 | 7,77€ |
| 5 - 9 | 7,69€ |
| 10 - 19 | 7,59€ |
| 20 + | 7,49€ |
Price on request for order quantity from 50 pieces
Price plus VAT, plus shipping cost
Delivery time: 2-5 workdays inside EU
LS-30C700G (700mA 30W)
7,77€
In stock
In stock
Description
LED Trafo 30W 700mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator

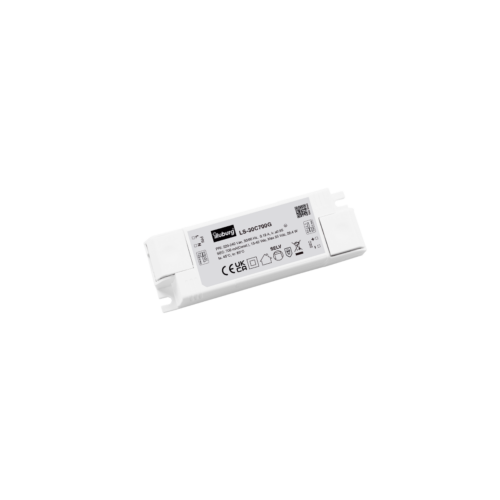

LS-30C700G
LED power supply for 700 mA constant current
15…42 Vdc, 10.5…29.4 W max., IP20, independent installation, non-dimmable
Flicker-free according to IEEE 1789
Electrical data
| Rated input voltage | 220…240 Vac |
| Range of input voltage (AC) | 198…264 Vac |
| Range of input voltage (DC) | 220…280 Vdc |
| Mains Frequency | 50/60 Hz |
| Power factor (λ) | ≥ 0.95 Ful lload, 230 Vac |
| Input current | 0.19 A max. |
| Inrush current | 25 A max. |
| Output voltage | 15…42 Vdc |
| Output current | 700 mA |
| Output power (nominal) | 10.5…29.4 W |
| Efficiency | ≥ 88 % |
| Life time | > 50,000 h |
| Dimmable | No |
LED Trafo 30W 700mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Operating condition
| Operating temperature range (ta) | -20…+45 °C |
| Max. Surface temperature (tc) | 90 °C |
| Permitted rel. humidity | 10…90 % |
| Protection class | II |
| Type of protection | IP20 |
Protection
| Short circuit protection | Yes * |
| Overload protection | Yes * |
| No-load protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
LED Trafo 30W 700mA constant current for LED Lamp Flicker free LED Driver Treiber Transformator
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 62384, EN 62493 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 |
| Approval marks | CE, UKCA |
| RoHS compliant | Yes |
Installation
| Type of installation | Independent installation |
| Type of connection | Spring-loaded terminal |
| Cable cross-section, input side | 0.75…1.5 mm² |
| Cable cross-section, output side | 0.75…1.5 mm² |
| Cable preparation length, input side | 6…8 mm |
| Cable preparation length, output side | 6…8 mm |
Dimension
Connection
