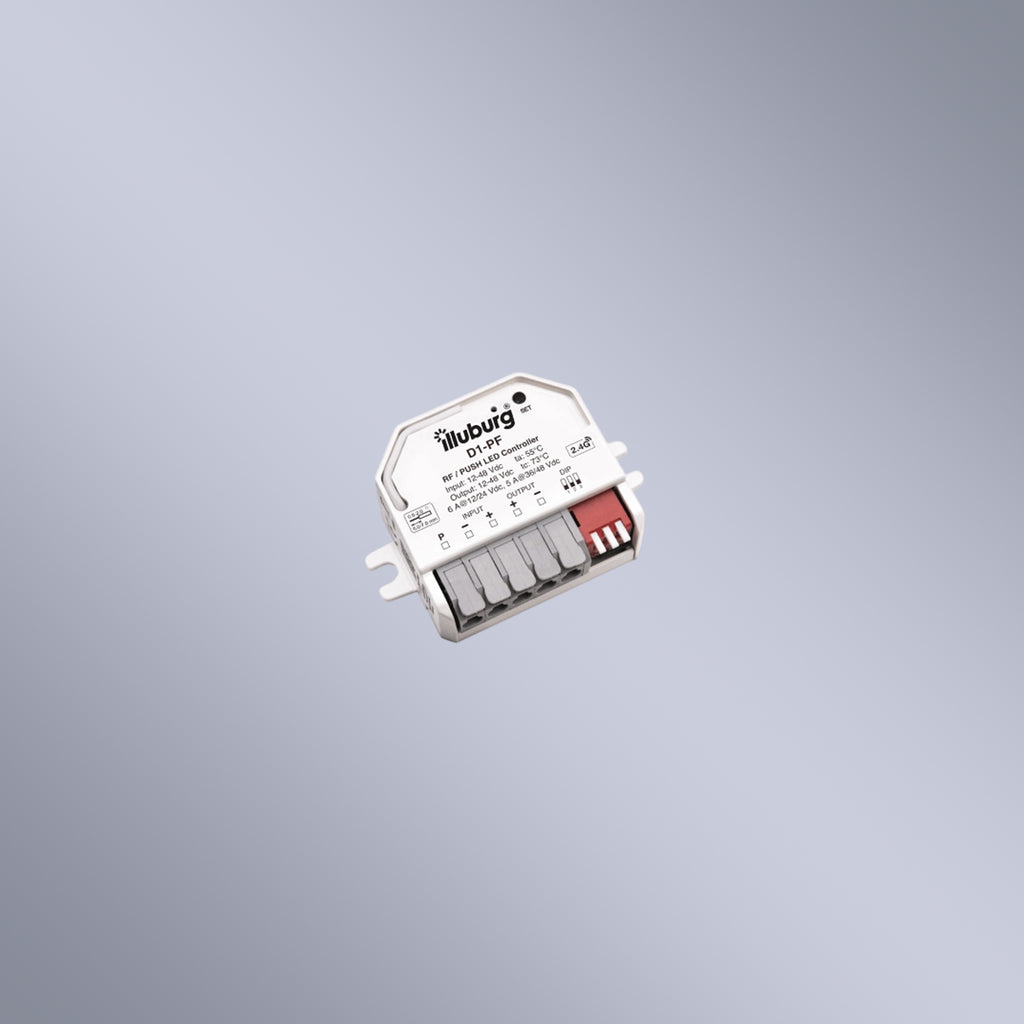

D1-PF

D1-PF

LED-Controller, 240 W, PUSH/RF 2,4 GHz,
for single-color LED strip,
flush-mounted installation, IP20, 56x39x18mm

€11,99 / pc excl. VAT
€14,27 / pc incl. 19% VAT
From Net/pc Gross/pc
1 €11,99 €14,27
5 €11,69 €13,91
10 €11,49 €13,67
20 €11,19 €13,32
◉ 4 remaining
Specifications
Operating Voltage
12...48 Vdc
Output Current
6 A max. 12...24 Vdc
5 A max. 36...48 Vdc
Output Power
72 W max. 12 Vdc
144 W max. 24 Vdc
180 W max. 36 Vdc
240 W max. 48 Vdc

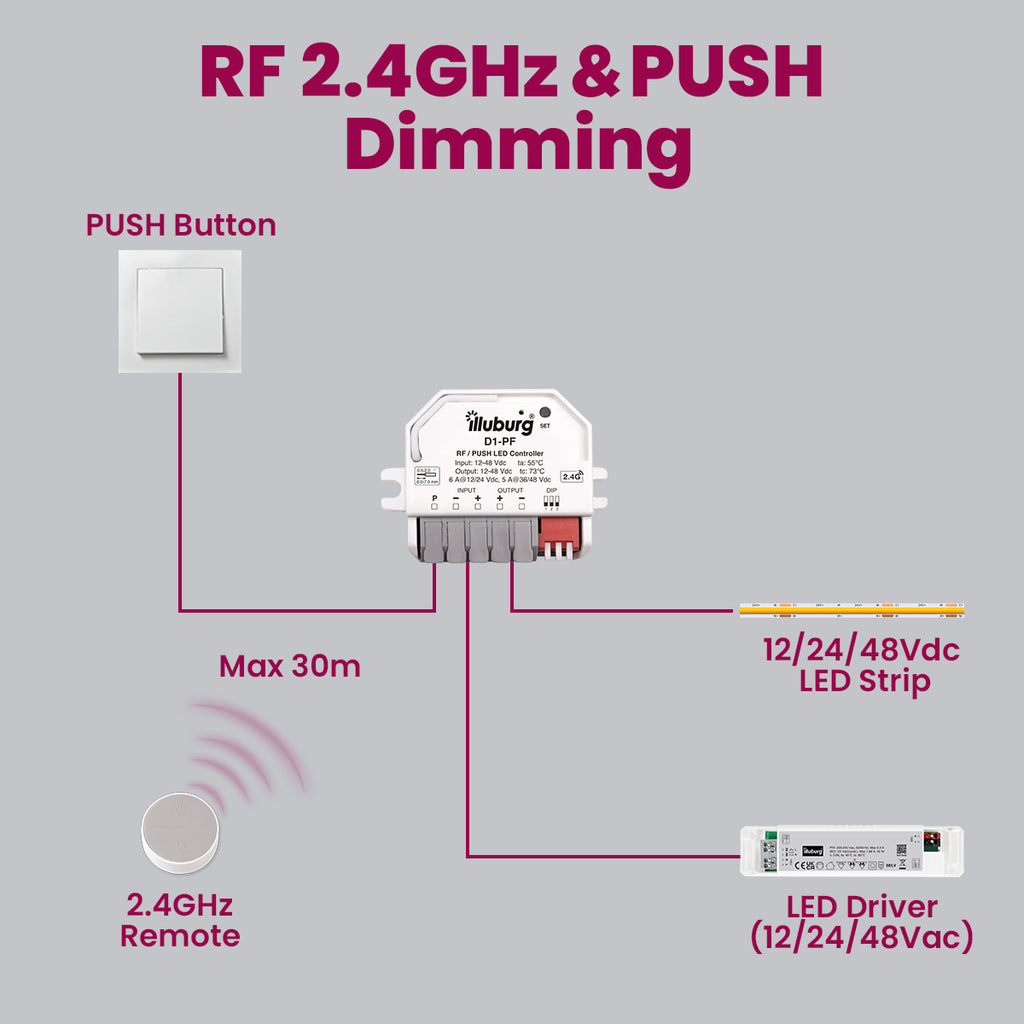

Input Signal
PUSH, RF 2,4 GHz
Output Signal
PWM
IP Rating
IP20
Dimensions
Dimension Graph for D1-PF
