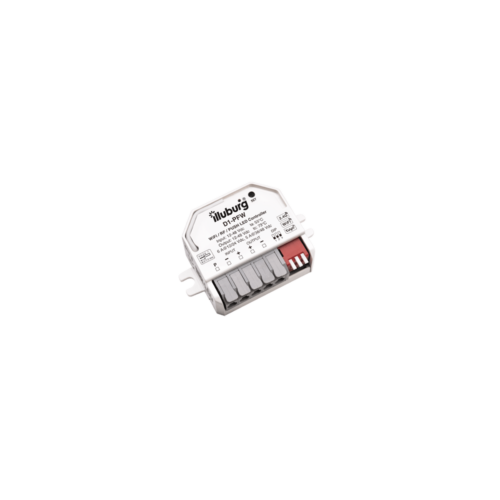

WiFi/RF Controller for LED Strips, unicolored
Preis zzgl. MwSt., zzgl. Versandkosten
| Menge | Preis |
| 1 - 4 | 15,99€ |
| 5 - 9 | 15,69€ |
| 10 - 19 | 15,39€ |
| 20 + | 15,09€ |
D1-PFW
15,99€
In stock
In stock
Description
WiFi RF Controller for Single Color LED Strips, 1 Channel
D1-PFW
WiFi RF Controller for Single Color LED Strips, 1 Channel
IP20, Flush-mount Installation
Electrical Data
| Input Voltage | 12…48 Vdc |
| Output Voltage | 12…48 Vdc |
| Output Current | 6 A max. 12…24 Vdc 5 A max. 36…48 Vdc |
| Output Power | 72 W max. 12 Vdc 144 W max. 24 Vdc 180 W max. 36 Vdc 240 W max. 48 Vdc |
| Input Signal | WiFi, RF 2.4 GHz, PUSH |
| PWM Frequency | 500 Hz, 2 KHz, 8 KHz, 16 KHz |
| Control Distance | 30 m (barrier-free) |
| Dimming Range | 0…100% |
| Dimming Levels | 4096 |
| Dimming Curve | Linear / Logarithmic |
| Lifespan | 5 Years |
Operating Conditions
WiFi RF Controller for Single Color LED Strips, 1 Channel
| Operating Temperature (ta) | -20…+55 °C |
| Max. Case Temperature (tc) | 73 °C |
| Protection Rating | IP20 |
Protection Features
WiFi RF Controller for Single Color LED Strips, 1 Channel
| Short Circuit Protection | Yes |
| Over-temperature Protection | Yes |
| Reverse Polarity Protection | Yes |
Standards & Certificates
| Standards | EN 55015, EN 61547 EN 301489-1, EN 301489-17 EN 61347-1, EN 61347-2 |
| Radio Equipment | EN 300 328, EN 300 440 |
| Certifications | CE, RoHS |
Wiring connection
| Type of connection | Spring lever terminal |
| Cable cross-section | 0.5…2.0 mm² |
| Cable preparation length | 4…5 mm |
Dimensions
Connection
