ST-30M-DALI2 (300…900mA 30W)

In stock

MengePreis
1 - 420,19
5 - 919,59
10 - 1918,89
20 +18,19

Price on request for order quantity from 20 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LS-30M-DALI2

LED power supply with adjustable output current
30 W max., IP20, independent installation
Dimmable with DALI2, 1-10V, PUSH (pri.)
Flickerfree according to IEEE 1789

Electrical Data

Input Voltage (range)198…264 Vac
Input Voltage (AC)220…240 Vac
Input Voltage (DC)200…240 Vac
Mains Frequency50/60 Hz
Power Factor (λ)0.95  Full Load, 230 Vac
Input Current0.16 A max.  Full Load, 230Vac
Inrush Current8 A max.
Output Voltage9-58 Vdc
Output Current300 mA constant, 9-58 Vdc, 2.7-17 W
350 mA constant, 9-58 Vdc, 3-20 W
400 mA constant, 9-58 Vdc, 3.6-23 W
450 mA constant, 9-58 Vdc, 4-26 W
500 mA constant, 9-58 Vdc, 4.5-29 W
550 mA constant, 9-55 Vdc, 5-30 W
600 mA constant, 9-50 Vdc, 5.4-30 W
650 mA constant, 9-46 Vdc, 5.8-30 W
700 mA constant, 9-42 Vdc, 6.3-30 W
750 mA constant, 9-40 Vdc, 6.7-30 W
800 mA constant, 9-38 Vdc, 7.2-30 W
850 mA constant, 9-35 Vdc, 7.6-30 W
900 mA constant, 9-34 Vdc, 8.1-30 W
Output Power (nominal)30 W max.
Efficiency≥ 85 %  Full Load, 230 Vac
Life Time> 50,000 h
Dimming modeDALI2, 1-10V, PUSH (pri.)
Dimming range2…100 %



Operating Condition

Operating temperature range (ta)-25…+50 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. Humidity85 %
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *
Overheating ProtectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
EN 62493, EN60598-1
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 55015, EN 61547
Standards (DALI)IEC62386-101(2.0)
IEC 62386-102 (2.0)
IEC 62386-207 (2.0)
Approval MarksCE
RoHS CompliantYes



Installation

Type of InstallationIndependent installation
Type of ConnectionSpring-loaded terminal
Cable Cross-Section, input side0.75…1.5 mm²
Cable Cross-Section, output side0.75…1.5 mm²
Cable Preparation Length, input side8 mm
Cable Preparation Length, output side8 mm

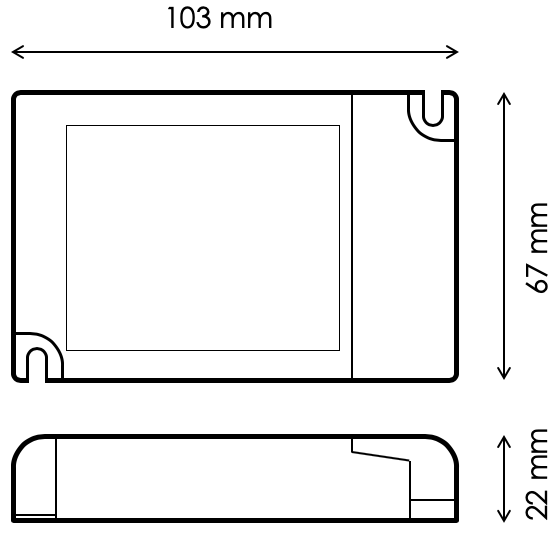

Dimension

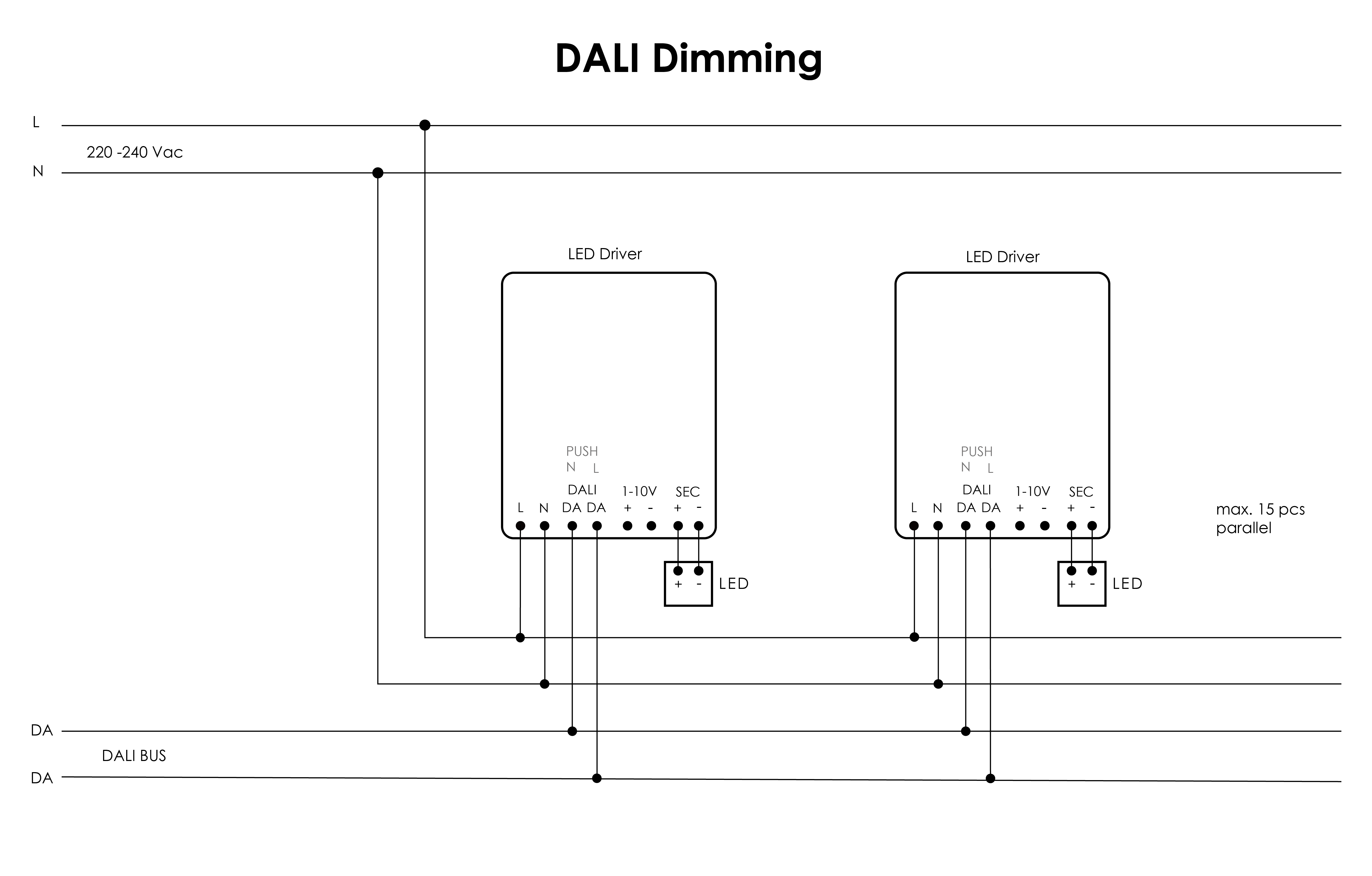

Connection
