Name: ST-30M-DALI2 (300...900mA 30W)
SKU: 21901
Price: 18.69 EUR
Availability: InStock
Rating: 5.00 (0 reviews)

Description

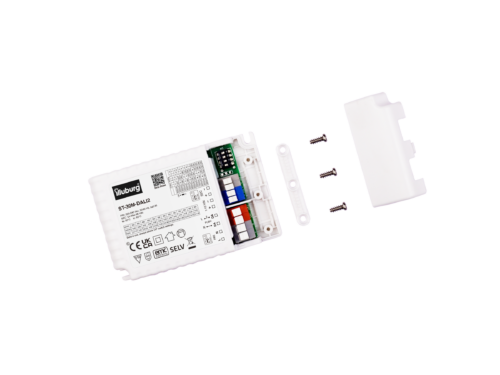

ST-30M-DALI2

LED power supply with adjustable output current
30 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.), 0-10V (sec.), PWM
Flickerfree according to IEEE 1789

Electrical Data

Input Voltage (nominal)	220…240 Vac
Input Voltage Range	198…264 Vac
Input Voltage Range (DC)	200…240 Vdc
Mains Frequency	50/60 Hz
Power Factor (λ)	≥ 0.95 Full Load, 230 Vac
Input Current	0.16 A max.
Inrush Current	8 A max.
No-load Loss	≤ 1 W
Output Current	300 mA, 9-58 Vdc, 2.7-17 W 350 mA, 9-58 Vdc, 3-20 W 400 mA, 9-58 Vdc, 3.6-23 W 450 mA, 9-58 Vdc, 4-26 W 500 mA, 9-58 Vdc, 4.5-29 W 550 mA, 9-55 Vdc, 5-30 W 600 mA, 9-50 Vdc, 5.4-30 W 650 mA, 9-46 Vdc, 5.8-30 W 700 mA, 9-42 Vdc, 6.3-30 W 750 mA, 9-40 Vdc, 6.7-30 W 800 mA, 9-38 Vdc, 7.2-30 W 850 mA, 9-35 Vdc, 7.6-30 W 900 mA, 9-34 Vdc, 8.1-30 W
Efficiency	85 %
Life Time	5 Years Full Load, 230 Vac
Dimming mode	DALI-2 (0-100 %), Primary PUSH (2-100 %), 0-10V (2-100 %), PWM (2-100 %)

Operating Condition

Operating temperature range (ta)	-25…+50 °C
Max. Surface Temperature (tc)	85 °C
Permitted rel. Humidity	10…95 %
Protection Class	II
Type of Protection	IP20

Protection

Short Circuit Protection	Yes *
Overload Protection	Yes *
Overheating Protection	Yes *

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.

Standards & Certificates

Normen	EN 61347-1, EN 61347-2-13 EN 62493, EN 60598-1 EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3
Dali Standard (DT-6)	IEC 62386-102, IEC 62386-207
Prüfzeichen	CE, UKCA
RoHS Compliant	Yes

Installation

Type of Installation	Independent installation
Type of Connection	Spring-loaded terminal
Cable Cross-Section, input side	0.75…1.0 mm²
Cable Cross-Section, output side	0.75…1.0 mm²
Cable Preparation Length, input side	6…8 mm
Cable Preparation Length, output side	6…8 mm
