ST-46M-DALI2 (700…1050mA 46W)
19,99€
In stock
In stock
Description

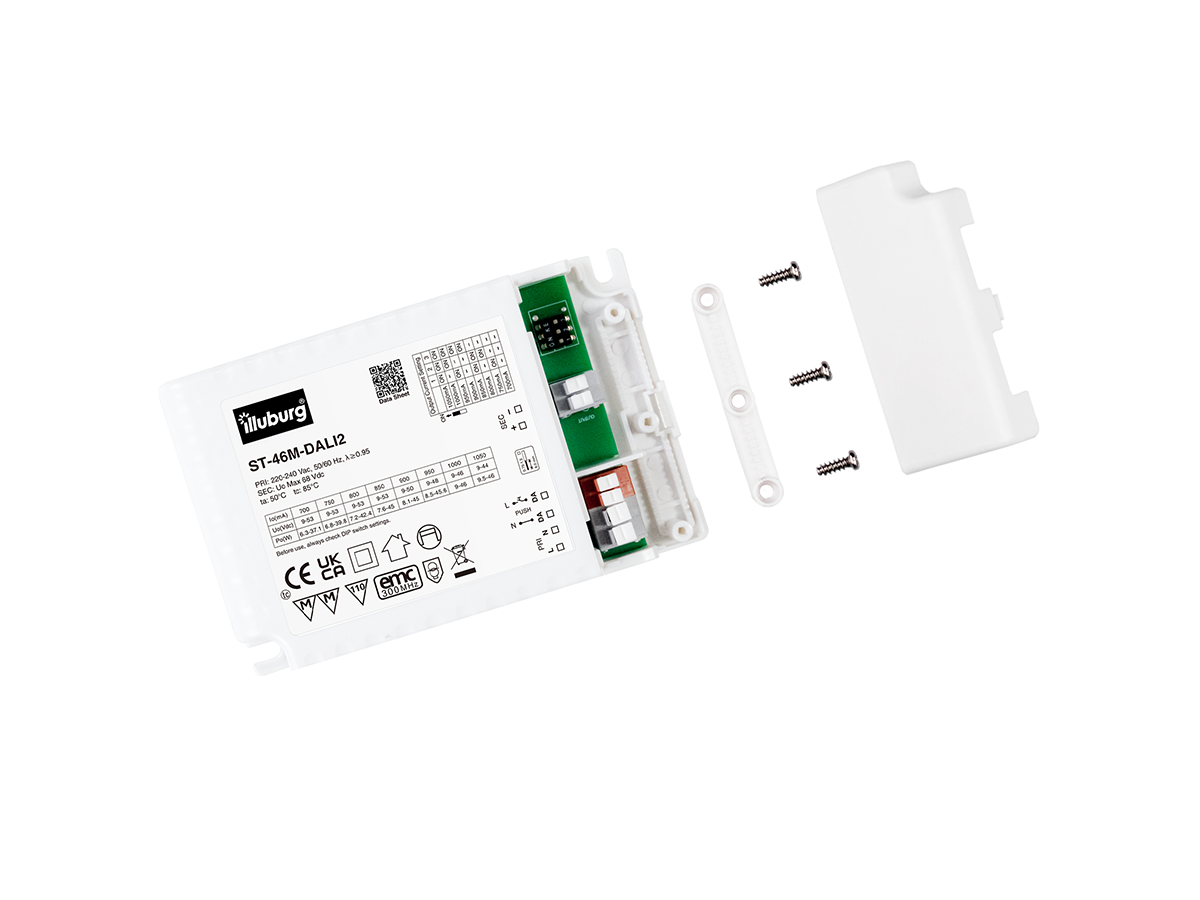

ST-46M-DALI2
LED power supply with adjustable output current
46 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
| Input Voltage (range) | 198…264 Vac |
| Input Voltage (AC) | 220…240 Vac |
| Input Voltage (DC) | 200…240 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0.95 Full Load, 230 Vac |
| Input Current | 0.23 A max. |
| Inrush Current | < 20 A 100𝜇s, 230 Vac |
| Output Voltage | 9…53 Vdc |
| Output Current | 700 mA, 9-53 Vdc, 6,3-37,1 W 750 mA, 9-53 Vdc, 6,8-39,8 W 800 mA, 9-53 Vdc, 7,2-42,4 W 850 mA, 9-53 Vdc, 7,6-45 W 900 mA, 9-50 Vdc, 8,1-45 W 950 mA, 9-48 Vdc, 8,5-45,6 W 1000 mA, 9-46 Vdc, 9-46 W 1050 mA, 9-44 Vdc, 9,5-46 W |
| Output Power (nominal) | 46 W max. |
| Efficiency | 87% max. Full Load, 230 Vac |
| Life Time | 50,000 h @Ta full load |
| Dimming mode | DALI2, PUSH (pri.) |
| Dimming range | 0…100 % |
Operating Condition
| Operating temperature range (ta) | -25…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Permitted rel. Humidity | 10…95 % |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3 |
| DALI protocol standard | IEC62386-102, IEC62386-207 DT6 |
| Prüfzeichen | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.75…1.5 mm² |
| Cable Cross-Section, output side | 0.75…1.5 mm² |
| Cable Preparation Length, input side | 8 mm |
| Cable Preparation Length, output side | 8 mm |
Dimension
Connection
