ST-60M-DALI2
LED power supply with adjustable output current
60 W max., IP20, independent installation
Dimmable with DALI2, PUSH (pri.)
Flickerfree according to IEEE 1789
Electrical Data
Input Voltage (range) | 198…264 Vac |
Input Voltage (AC) | 220…240 Vac |
Input Voltage (DC) | 200…240 Vac |
Mains Frequency | 50/60 Hz |
Power Factor (λ) | 0.95 Full Load, 230 Vac |
Input Current | 0.32 A max. |
Inrush Current | 16 A 100𝜇s, 230 Vac |
Output Voltage | 9…71 Vdc |
Output Current | 350 mA, 9-71 Vdc, 3-25 W 500 mA, 9-71 Vdc, 4.5-36 W 550 mA, 9-71 Vdc, 5-40 W 650 mA, 9-71 Vdc, 5.8-46 W 700 mA, 9-71 Vdc, 6.3-50 W 750 mA, 9-71 Vdc, 6.7-54 W 850 mA, 9-70 Vdc, 7.6-60 W 900 mA, 9-66 Vdc, 8.1-60 W 1000 mA, 9-60 Vdc, 9-60 W 1050 mA, 9-57 Vdc, 9.4-60 W |
Output Power (nominal) | 60 W max. |
Efficiency | 86% max. Full Load, 230 Vac |
Life Time | 5 Years Full Load, 230 Vac |
Dimming mode | DALI2, PUSH (pri.) |
Dimming range | 1…100 % |
Operating Condition
Operating temperature range (ta) | -25…+50 °C |
Max. Surface Temperature (tc) | 85 °C |
Permitted rel. Humidity | 10…95 % |
Protection Class | II |
Type of Protection | IP20 |
Protection
Short Circuit Protection | Yes * |
Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
Normen | EN 61347-1, EN 61347-2-13 EN 62493, EN 60598-1 EN 61000-3-2, EN 61000-3-3 EN 55015, EN 61547 |
DALI protocol standard | IEC62386-102, IEC62386-207 DT6 |
Prüfzeichen | CE, UKCA |
RoHS Compliant | Yes |
Installation
Type of Installation | Independent installation |
Type of Connection | Spring-loaded terminal |
Cable Cross-Section, input side | 0.75…1.5 mm² |
Cable Cross-Section, output side | 0.75…1.5 mm² |
Cable Preparation Length, input side | 6…8 mm |
Cable Preparation Length, output side | 6…8 mm |

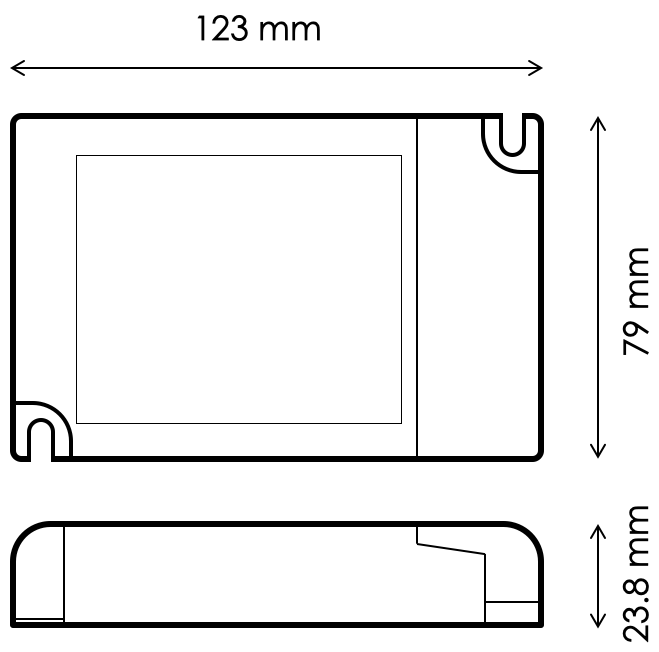

Dimension

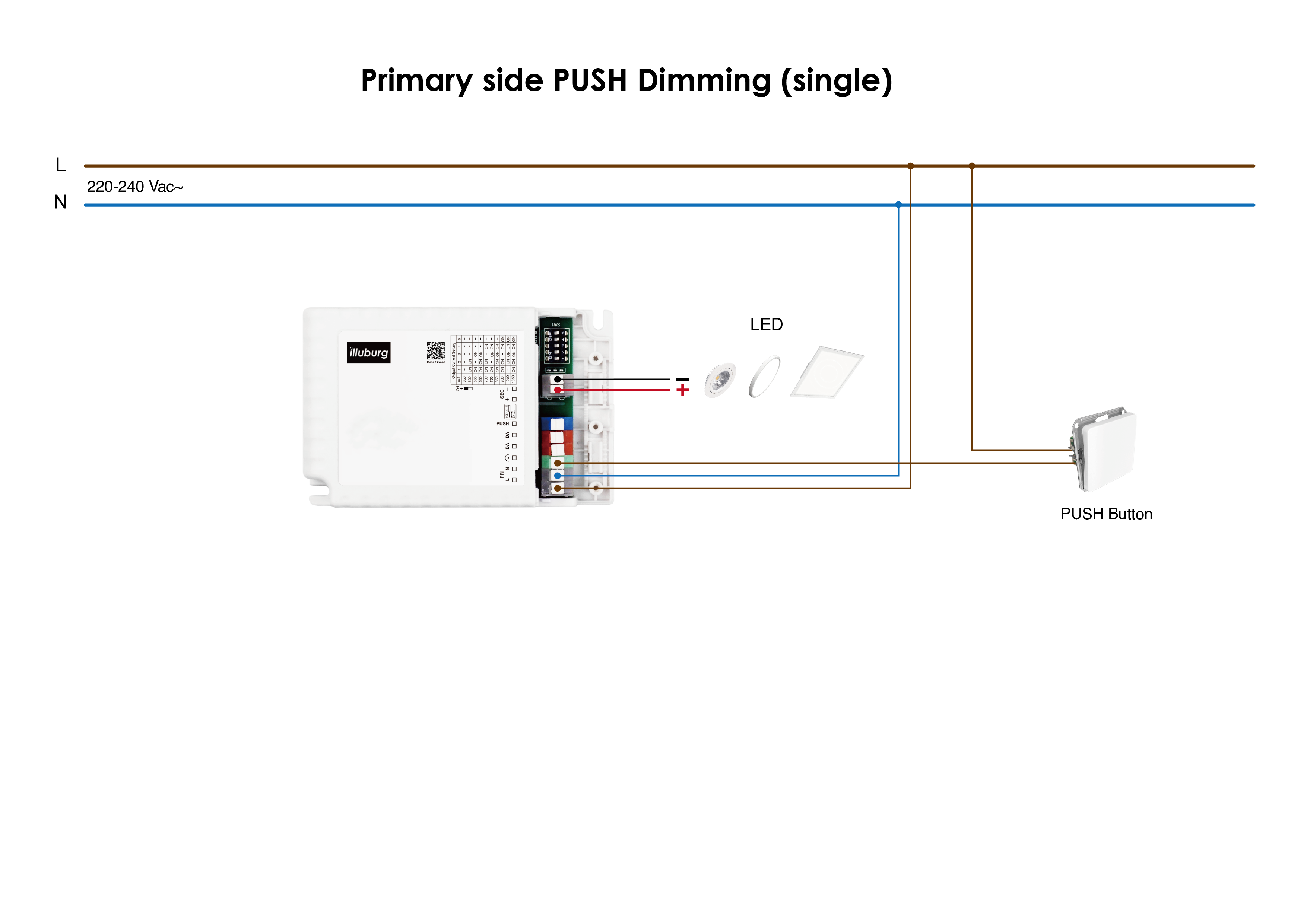

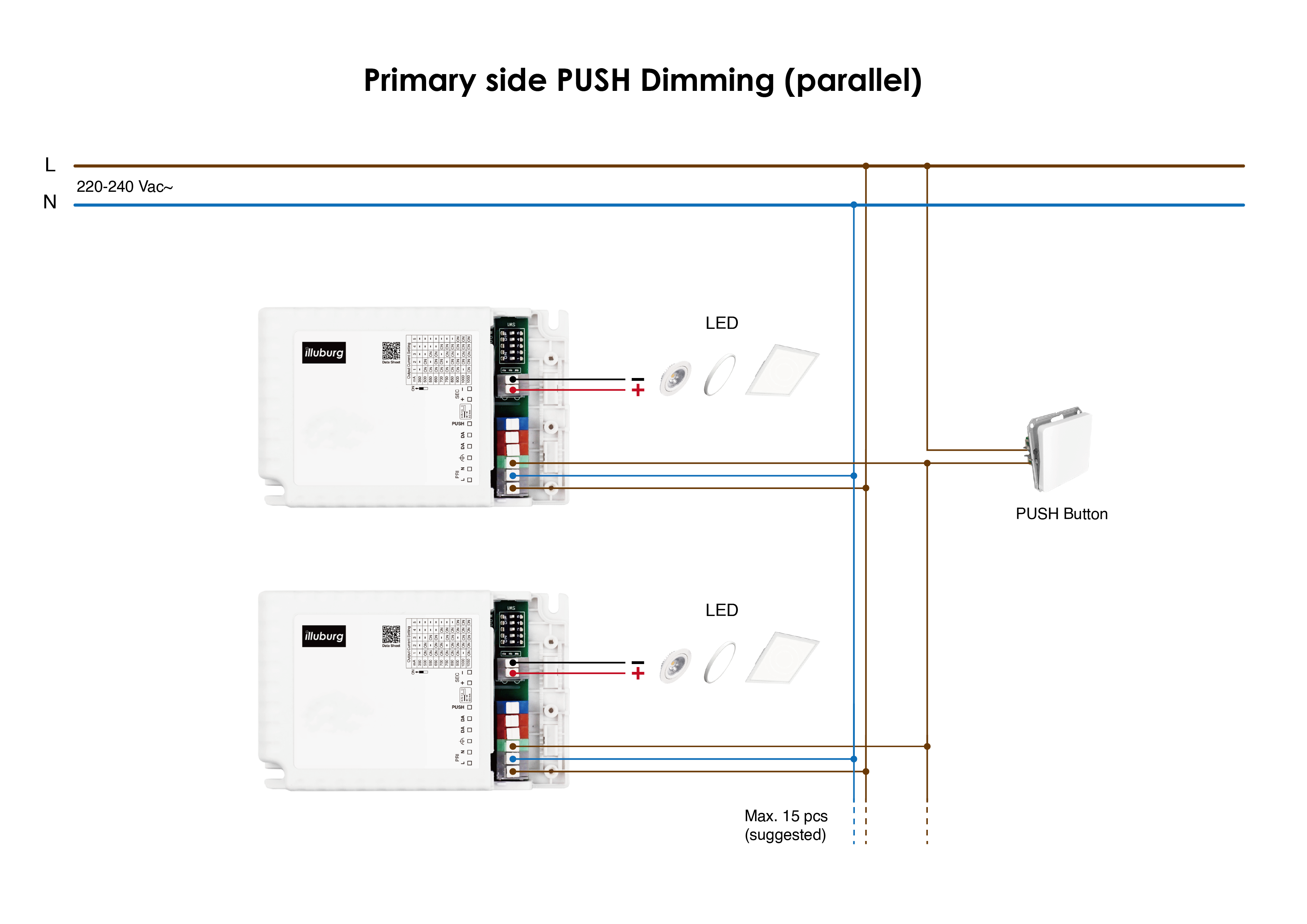

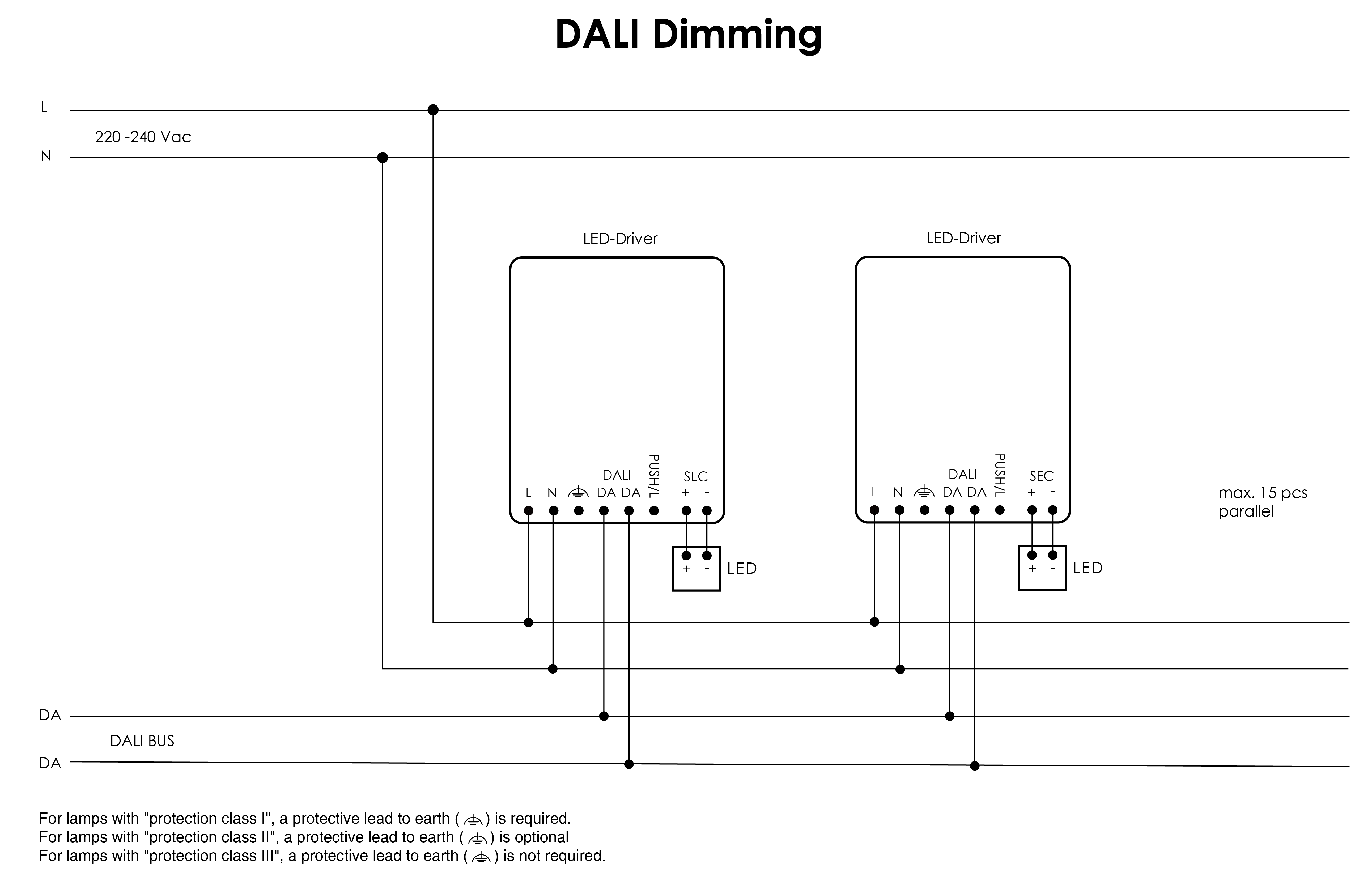

Connection
