DA-T
19,69€
In stock
In stock
Description

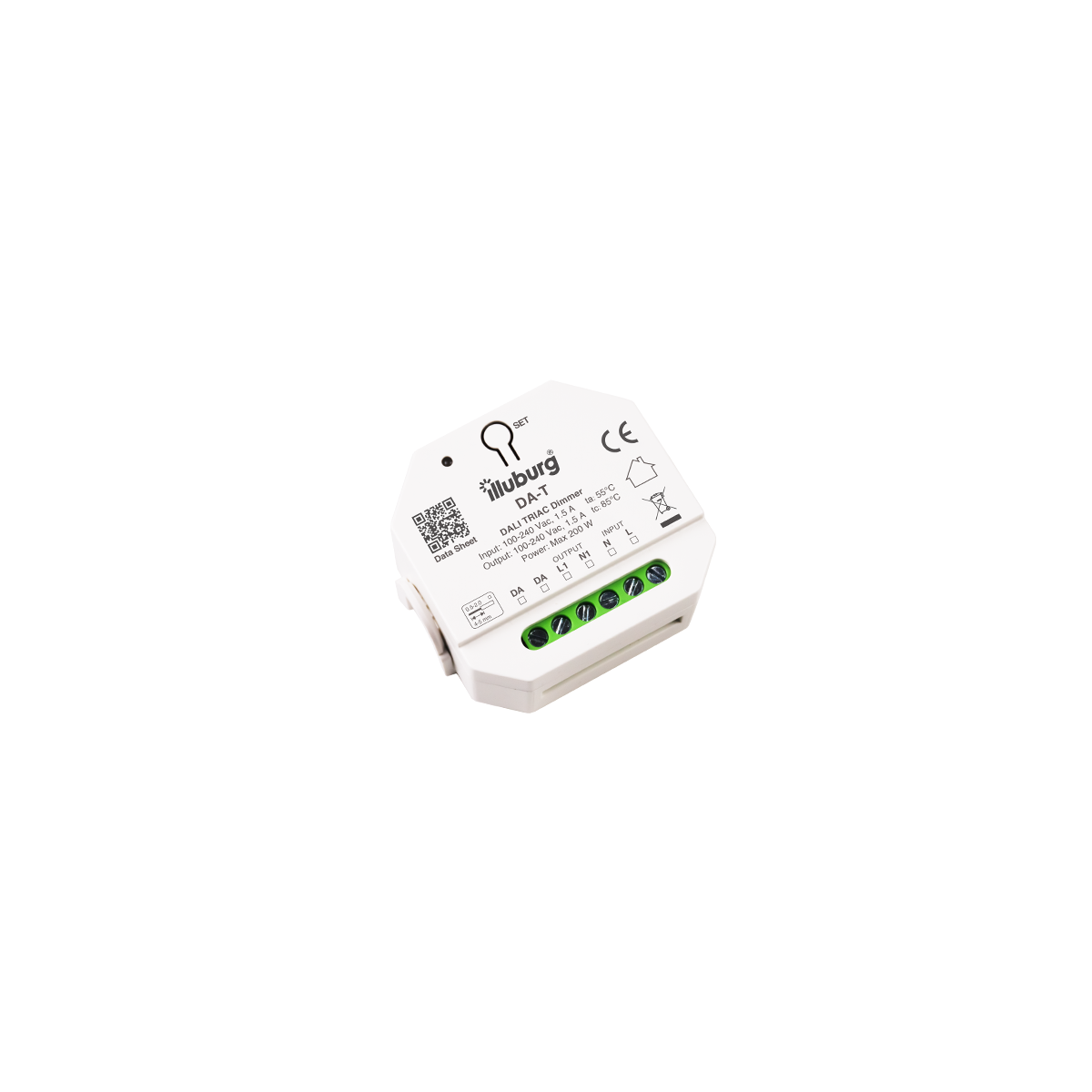

DALI PUSH Dimmer for LEDs und TRIAC dimmable tranformers with 1 DALI-address
DA-T
Phase-cut DALI PUSH dimmer, 1 DALI address, 1 output
200 W, IP20, DIN-rail & flush-mounted installation
Electrical data
| Input voltage | 100…240 Vac |
| Input current | 1.5 A |
| Inrush current * | 130 A max. * The sum of the inrush current of all connected devices (lights, power supplies) should not exceed this value! |
| Output voltage | 100…240 Vac |
| Output current | 1.5 A |
| Output power | 200 W max. LED 400 W max. halogen |
| Input signal | DALI-2, PUSH (pri.) |
| Output signal | TRIAC (leading & trailing edge) |
| Dimming range | 0…100 % |
| Dimming level | 256 |
| Life time | 5 years |
Operating condition
DALI PUSH Dimmer for LEDs und TRIAC dimmable tranformers with 1 DALI-address
| Operating temperature range (ta) | -20…+55 °C |
| Max. surface temperature (tc) | 85 °C |
| Type of protection | IP20 |
Protection
| Overload protection | Yes |
| Overheating protection | Yes |
| Open circuit protection | Yes |
Standards
| Standards | EN 55015, EN 61547 EN 301489-1, EN 301489-3 EN 61347-1, EN 61347-2 |
| Dali standards | IEC 62386 |
| Marking | CE |
Wiring connection
DALI PUSH Dimmer for LEDs und TRIAC dimmable tranformers with 1 DALI-address
| Type of connection | Screw terminal |
| Cable cross-section | 0.5…2.0 mm² |
| Cable preparation length | 4…5 mm |
Dimension
Connection
illuburg DALI PUSH dimmer for LEDs and TRIAC dimmable transformers up to 200W with 1 DALI address Controller
DIMMER DA-T: regulates dimmable LEDs and TRIAC (leading edge and trailing edge) dimmable transformers with DALI and PUSH signal, dimming range 0 to 100%.
APPLICATION: Input 100 – 240 V (AC), output dimmable 230 V LEDs (E14, E27, G9, GU10 etc.) or TRIAC dimmable transformers with a total power of up to 200 W, parallel connection possible.
DALI DIMMING: a DALI address is automatically assigned by the DALI master to regulate the connected LEDs and transformers together.
PUSH DIMMING: multiple DA-T dimmers can be regulated and synchronised using a single button (primary), switching on and off with memory function.
MINIMUM BRIGHTNESS: the minimum brightness can be set and saved, and the connected LEDs can then only be dimmed up to this brightness.
MOUNTING: Rail and flush mounting, protection class IP20, dimensions 56 x 50 x 28 mm (L x W x H), ambient temperature (ta) -20 – +55 °C, max. surface temperature (tc) 85 °C.
SAFETY: Overload protection and overtemperature protection devices available. Test marks CE, RoHs.
DALI PUSH Dimmer for LEDs und TRIAC dimmable tranformers with 1 DALI-address
