MS30
5,39€
In stock
In stock
Description
5.8 GHz Microwave Motion Sensor MS30 Radar HF High Frequency Detector
MS30
5.8 GHz microwave motion sensor with ON/OFF function
Detection range, duty cycle, ambient brightness adjustable
IP20, built-in installation
Electrical Data
| Input voltage (nominal) | 220…240 Vac |
| Input voltage (range) | 198…264 Vac |
| Mains Frequency | 50/60 Hz |
| Working mode | ON/OFF function |
| Operating frequency | 5.8 GHz |
| Rated load | 400 W LED / Inductive load 800 W Resistive load |
| Duty cycle | 5 s / 30 s / 90 s / 3 min / 20 min / 30 min Set via DIP switch |
| Detection range | 100 / 75 / 50 / 25 / 10 % Set via DIP switch |
| Ambient brightness | 2 / 10 / 25 / 50 lux / deactivated Set via DIP switch |
| Detection radius | 4…6 m |
| Detection angle | 150 ° |
| Mounting height | 6 m max. |
| Life time | > 50,000 h |
| Dimmable | No |
Operating condition
5.8 GHz Microwave Motion Sensor MS30 Radar HF High Frequency Detector
| Operating temperature range (ta) | -25…+60 °C |
| Protection class/strong> | II |
| Type of protection | IP20 |
Standards & Certificates
| Standards | EN 55015, EN 61547 EN 61000-3-2, EN 61000-3-3 EN 61058-1, EN 61058-1-2 EN 301489-1, EN 301489-3 |
| Standards (RED) | EN 300440 V2.1.1, EN 300440 V2.2.1 |
| Approval marks | CE, UKCA, RED |
| RoHS compliant | Yes |
Installation
5.8 GHz Microwave Motion Sensor MS30 Radar HF High Frequency Detector
| Type of installation | Built-in installation |
| Type of connection | Spring-loaded terminal |
| Cable cross-section, input side | 0.75…1.5 mm² |
| Cable cross-section, output side | 0.75…1.5 mm² |
| Cable preparation length, input side | 6…8 mm |
| Cable preparation length, output side | 6…8 mm |
Dimension

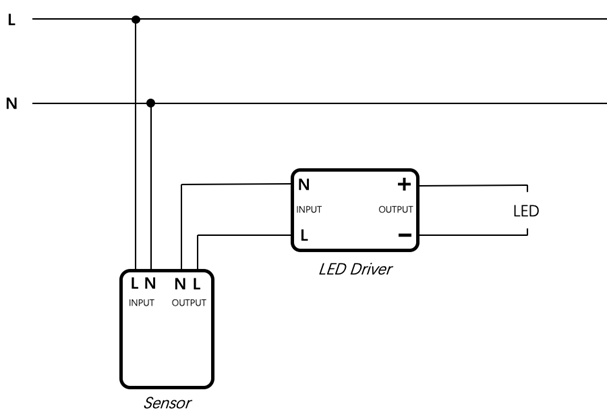

Connection
5.8 GHz Microwave Motion Sensor MS30 Radar HF High Frequency Detector
