250…800mA, Push dimmable, 35W, IP20, 103x67x22mm
Price plus VAT, plus shipping cost
| Menge | Preis |
| 1 - 4 | 19,69€ |
| 5 - 9 | 19,39€ |
| 10 - 19 | 19,09€ |
| 20 + | 18,79€ |
ST-35M-PV2
19,69€
Only 1 left in stock
Only 1 left in stock
Description

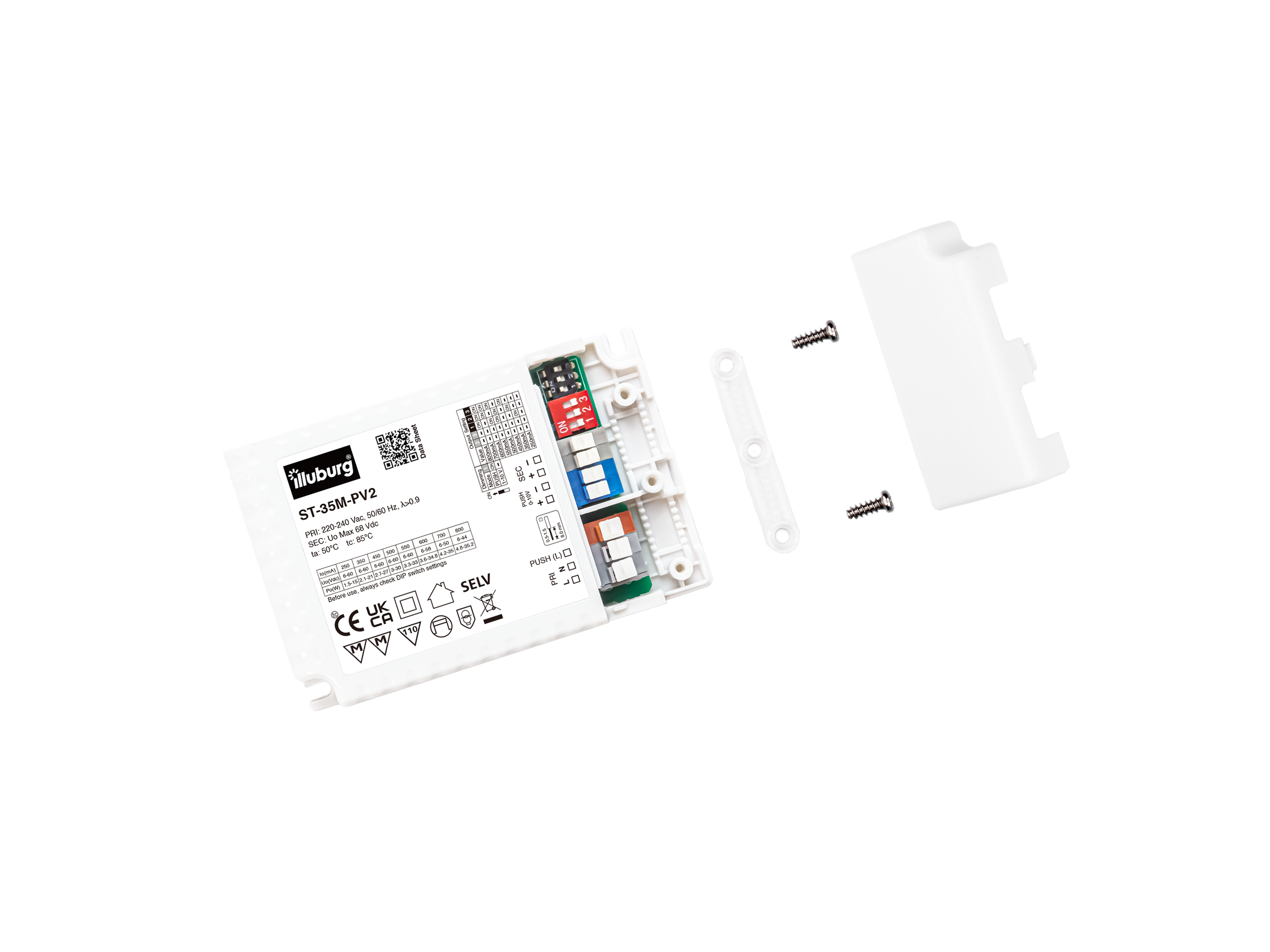

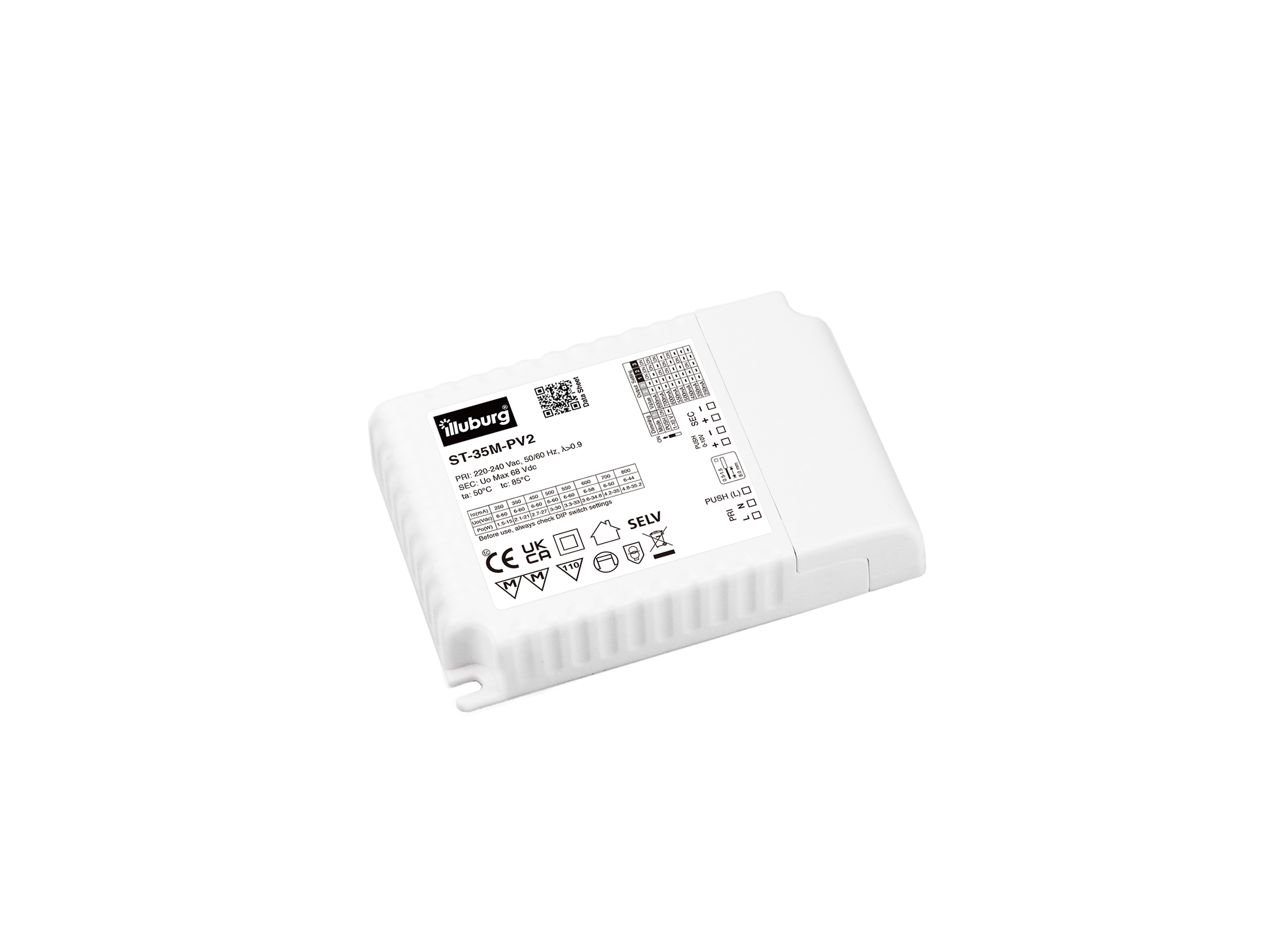

ST-35M-PV2
LED power supply with adjustable output current
35 W max., IP20, independent installation
dimmable with PUSH (pri. & sec.), 0-10V (sec.), PWM
flicker-free according to IEEE 1789
Electrical Data
Dimming modePUSH (pri. & sec.), 0-10V (sec.), PWM
| Input Voltage | 220…240 Vac |
| Mains Frequency | 50/60 Hz |
| Power Factor (λ) | ≥ 0,9 Full Load, 230 Vac |
| Input Current | 0,2 A max. |
| Inrush current | 15 A max. |
| Output Current | 250 mA constant, 6-60 Vdc, 1.5-15 W 350 mA constant, 6-60 Vdc, 2.1-21 W 450 mA constant, 6-60 Vdc, 2.7-27 W 500 mA constant, 6-60 Vdc, 3-30 W 550 mA constant, 6-60 Vdc, 3.3-33 W 600 mA constant, 6-58 Vdc, 3.6-34.8 W 700 mA constant, 6-50 Vdc, 4.2-35 W 800 mA constant, 6-44 Vdc, 4.8-35.2 W |
| Effizienz | 88 % Full Load, 230 Vac |
| Lebensdauer | > 50.000 h |
| Dimming range | 1…100 % |
Operating Condition
| Operating temperature range (ta) | -25…+50 °C |
| Max. Surface Temperature (tc) | 85 °C |
| Protection Class | II |
| Type of Protection | IP20 |
Protection
| Short Circuit Protection | Yes * |
| Overvoltage Protection | Yes * |
| Overheating Protection | Yes * |
(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.
Standards & Certificates
| Normen | EN 61347-1, EN 61347-2-13 EN55015, EN61547 EN61000-3-2, EN61000-3-3 |
| Prüfzeichen | CE, UKCA |
| RoHS Compliant | Yes |
Installation
| Type of Installation | Independent installation |
| Type of Connection | Spring-loaded terminal |
| Cable Cross-Section, input side | 0.5…1.5 mm² |
| Cable Cross-Section, output side | 0.5…1.5 mm² |
| Cable Preparation Length, input side | 8 mm |
| Cable Preparation Length, output side | 8 mm |
Dimension
Connection
