Name: ST-50M2-PV (500...1400mA 50W)
Availability: InStock

Description

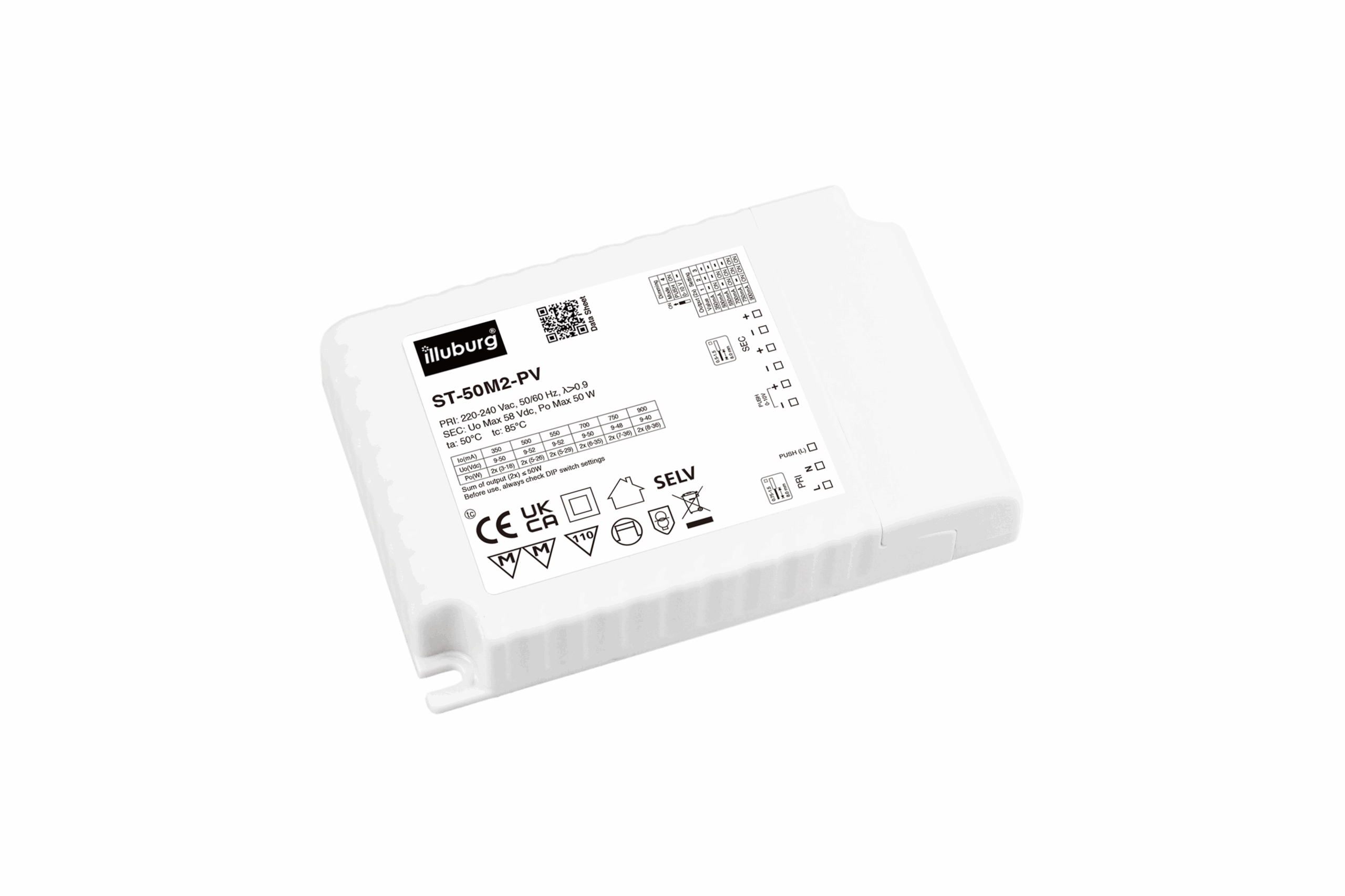

ST-50M2-PV

Double-output LED power supply with adjustable output current
50 W max., IP20, independent installation
Dimmable with PUSH (pri. & sec.), 0-10V (sec.), PWM
Flickerfree according to IEEE 1789

Electrical Data

Input Voltage	220…240 Vac
Mains Frequency	50/60 Hz
Power Factor (λ)	≥ 0.9 Full Load, 230 Vac
Input Current	0.28 A max.
Inrush current	15 A max.
Output Current	SEC1 350 mA constant, 9-50 Vdc, 3-18 W 500 mA constant, 9-50 Vdc, 5-25 W 550 mA constant, 9-45 Vdc, 5-25 W 700 mA constant, 9-36 Vdc, 6-25 W 750 mA constant, 9-33 Vdc, 7-25 W 900 mA constant, 9-28 Vdc, 8-25 W SEC2 350 mA constant, 9-50 Vdc, 3-18 W 500 mA constant, 9-52 Vdc, 5-26 W 550 mA constant, 9-52 Vdc, 5-29 W 700 mA constant, 9-50 Vdc, 6-35 W 750 mA constant, 9-48 Vdc, 7-36 W 900 mA constant, 9-40 Vdc, 8-36 W
Output Power (nominal)	50 W max. * *If SEC1 and SEC2 are in operation at the same time, the total power must not exceed 50 W.
Dimming mode	PUSH (pri. & sec.), 0-10V (sec.), PWM
Dimming range	3…100 %

Operating Condition

Operating temperature range (ta)	-25…+50 °C
Max. Surface Temperature (tc)	85 °C
Protection Class	II
Type of Protection	IP20

Protection

Short Circuit Protection	Yes *
Overvoltage Protection	Yes *
Overheating Protection	Yes *

(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.

Standards & Certificates

Standards	EN 61347-1, EN 61347-2-13 EN 55015, EN 61547 EN61000-3-2, EN61000-3-3
Approval Marks	CE, UKCA
RoHS Compliant	Yes

Installation

Type of Installation	Independent installation
Type of Connection	Spring-loaded terminal
Cable Cross-Section, input side	0.5…1.5 mm²
Cable Cross-Section, output side	0.5…1.5 mm²
Cable Preparation Length, input side	8 mm
Cable Preparation Length, output side	8 mm
