US-100V12 (12V 100W)

In stock

MengePreis
1 - 416,79
5 - 916,29
10 - 1915,79
20 +15,29

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LED Trafo 12V 100W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator

US-100V12

LED power supply for 12 Vdc constant voltage
8.33 A (100 W) max., IP20, independent installation, non-dimmable
Flickerfree according to IEEE 1789

Electrical Data

Input voltage (nominal)200…240 Vac
Input voltage (range)198…264 Vac
Mains Frequency50/60 Hz
Power Factor (λ)>0.95   230 Vac
Input Current0.78 A max.   Full Load, 198 Vac
No-load loss≤0.5 W
Inrush Current60 A max.   Full Load, 230 Vac
Leakage Current< 0.7 mA   240 Vac
Output Voltage12 Vdc
Output Current0…8.33 A
Output Power (nominal)100 W max.
Efficiency≥ 88 %
Life Time> 50,000 h
DimmableNo



Operating Condition

LED Trafo 12V 100W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator

Operating Ambient Temperature (ta)-20…+45 °C
Max. Surface Temperature (tc)90 °C
Permitted rel. humidity during operation20…90 %
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *   105…150 %
Overheating protectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
EN 62493, EN 62384
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval MarksCE
RoHS CompliantYes



Installation

LED Trafo 12V 100W constant voltage for LED Strip Lamp super slim Furniture installation LED Driver Treiber Transformator

Type of InstallationIndependent installation
Type of ConnectionScrew terminal
Cable Cross-section, input side0.75…1.5 mm²
Cable Cross-section, output side0.75…1.5 mm²
Cable Preparation length, input side6…8 mm
Cable Preparation length, output side6…8 mm



Dimension



Connection

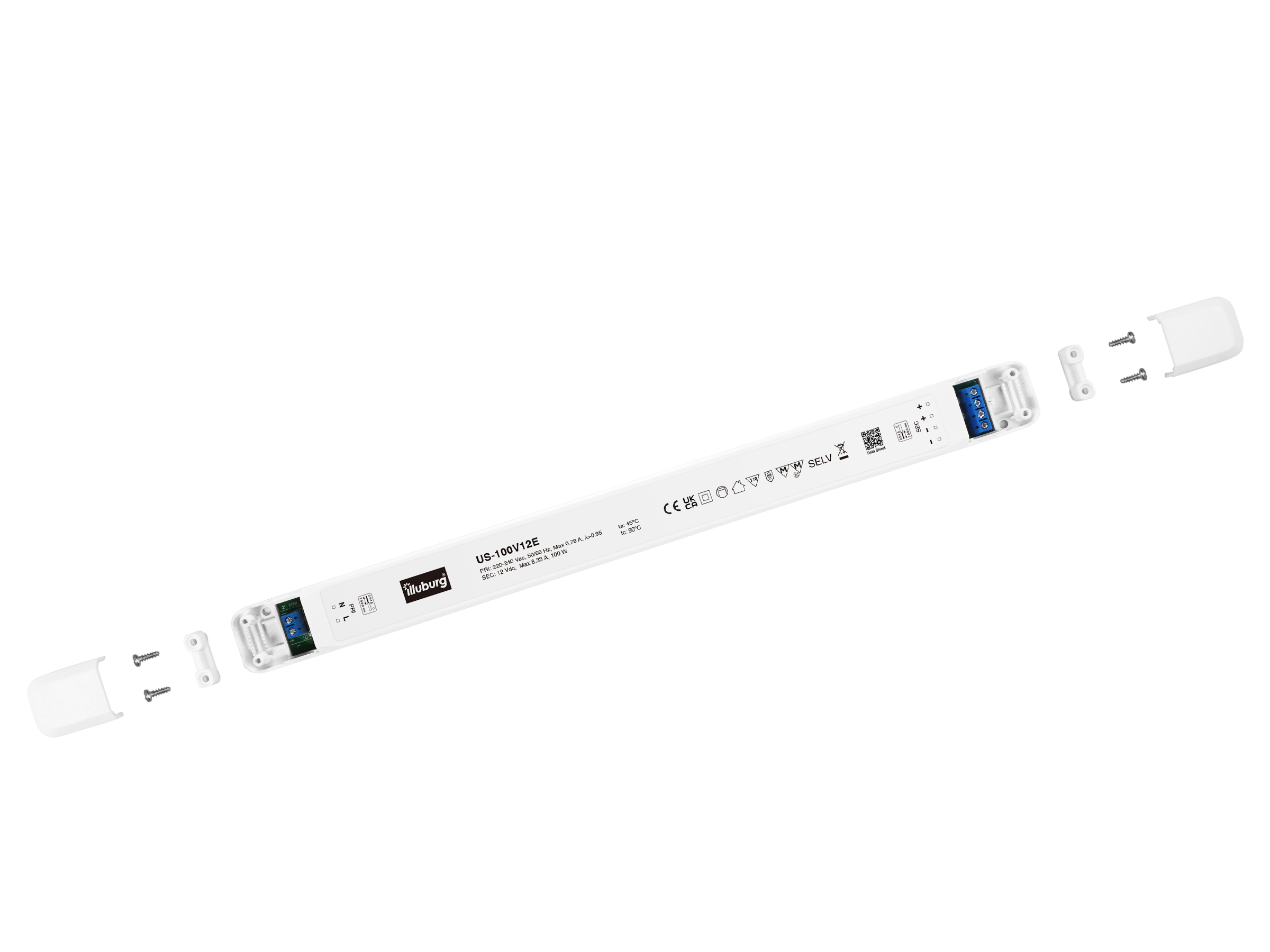

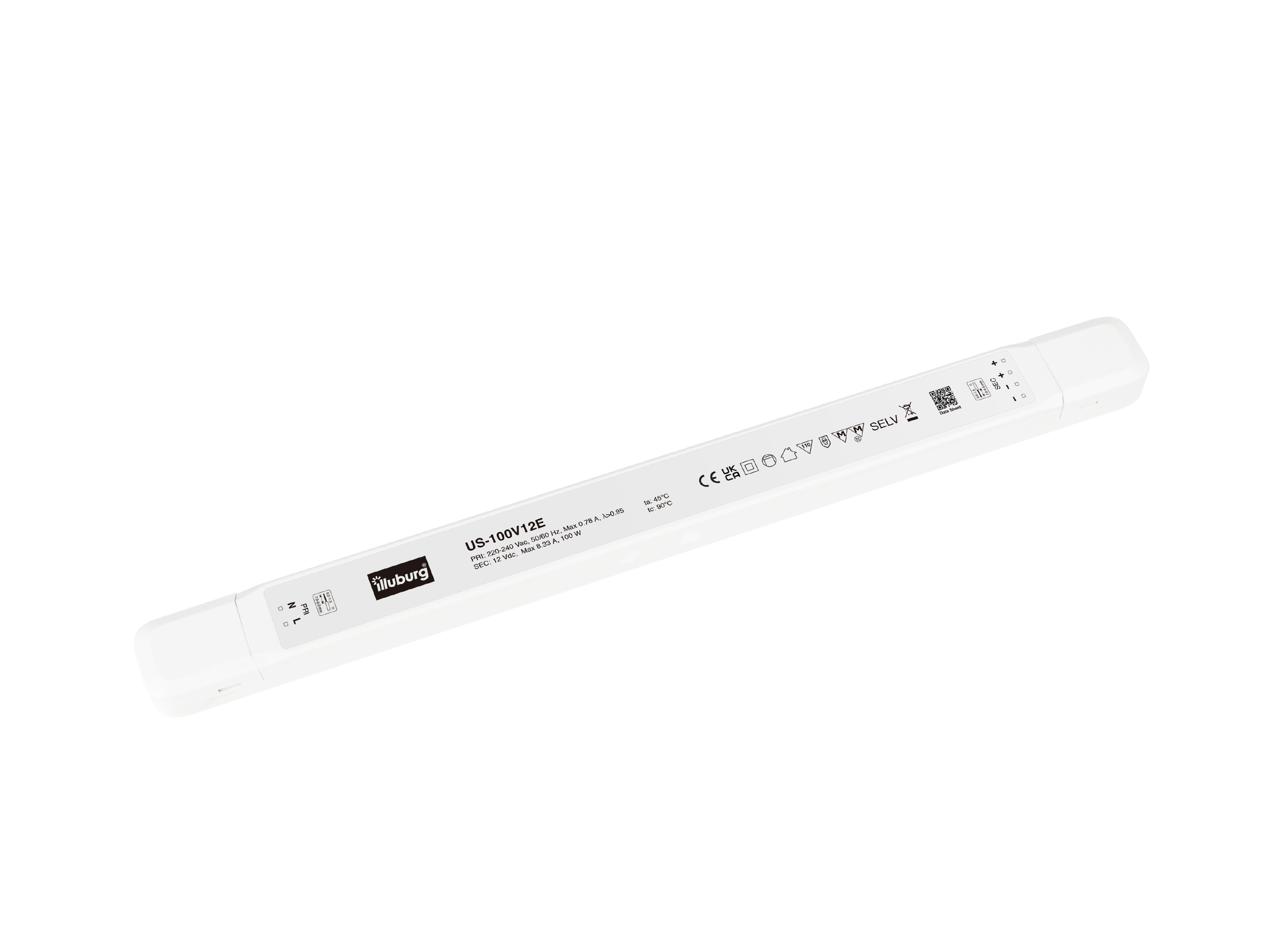

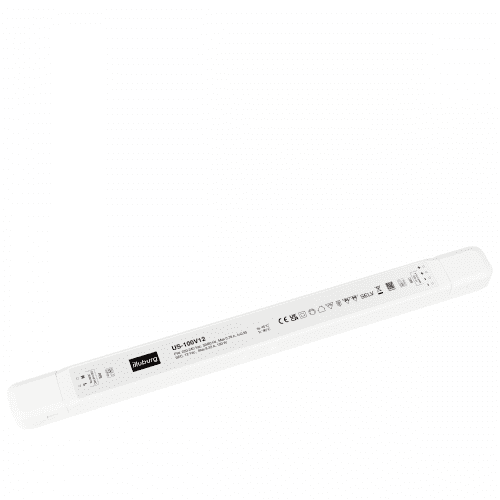

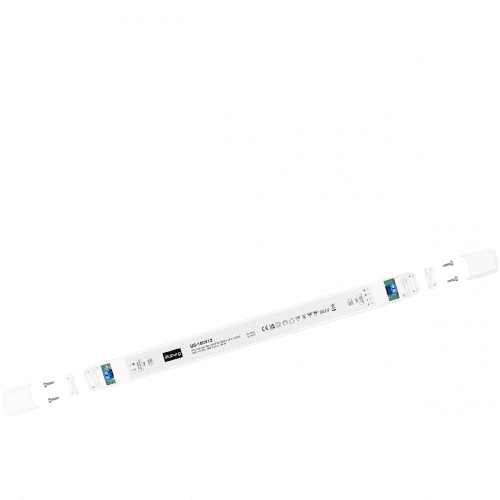

LED power supply US-100V12: LED transformer constant voltage, input 220 – 240 V (AC), output 12 V (DC), non-dimmable, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 100 W, parallel connection possible. Our products can be used with full load.
Assembly: dimensions 365 x 30 x 18 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by screw clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device equipped with overload protection, short circuit protection and overheating protection.
Quality: CE, TÜV, MM approval; Service life > 50.000 hours; Surface temperature (tc) 90°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage super slim 100w 100 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 100W constant voltage slim.

For business customer, who wants to order our porducts in large quantities or learn more about our new products, please contact us and download our product catalog.
