LS-75V12 (12V 75W)

In stock

MengePreis
1 - 412,99
5 - 912,59
10 - 1912,19
20 +11,79

Price on request for order quantity from 50 pieces

Price plus VAT, plus shipping cost

Delivery time: 2-5 workdays inside EU

In stock

Description

LED Trafo 12V 75W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

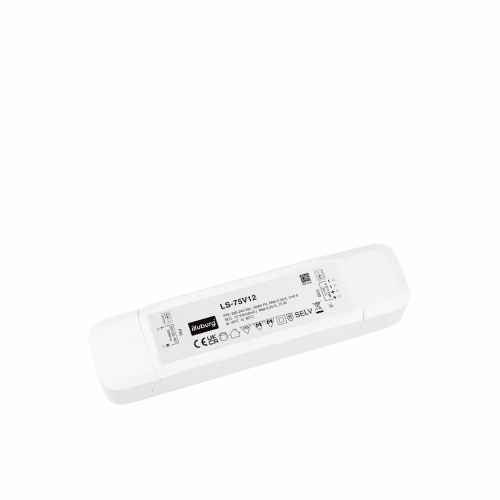

LS-75V12

LED power supply for 12 Vdc constant voltage
6.25 A (75 W) max., IP20, independent installation, non-dimmable
Flicker free according to IEEE 1789

Electrical Data

Input voltage (nominal)220…240 Vac
Input voltage (range)176…264 Vac
Mains Frequency50/60 Hz
Power Factor (λ)>0.9   220…240 Vac
Input Current0.58 A max.   Full Load, 176 Vac
No-load loss≤0.5 W
Inrush Current50 A max.
Leakage Current< 0.7 mA   240 Vac
Output Voltage12 Vdc
Output Current0…6.25 A
Output Power (nominal)75 W max.
Efficiency≥ 87 %
Life Time> 30,000 h    45 °C
DimmableNo



Operating Condition

LED Trafo 12V 75W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

Operating Ambient Temperature (ta)-20…+45 °C
Max. Surface Temperature (tc)85 °C
Permitted rel. Humidity20…90 %
Protection ClassII
Type of ProtectionIP20



Protection

Short Circuit ProtectionYes *
Overload ProtectionYes *   105…150 %
Overvoltage protectionYes *   >12.6 Vdc
Overheating protectionYes *


(*) The output shuts off and will be resumed, after problem is removed and led driver is restarted.



Standards & Certificates

Standards (LVD)EN 61347-1, EN 61347-2-13
EN 62493
Standards (EMC)EN 61000-3-2, EN 61000-3-3
EN 61000-4-2, EN 61000-4-5
EN 55015, EN 61547
Approval MarksCE
RoHS CompliantYes



Installation

LED Trafo 12V 75W constant voltage for LED Strip Lamp Flicker free Furniture installation LED Driver Treiber Transformator

Type of InstallationIndependent installation
Type of ConnectionSpring-loaded terminal   two parallel outputs
Cable Cross-section, input side0.5…1.5 mm²
Cable Cross-section, output side0.5…1.5 mm²
Cable Preparation length, input side7.0…9.0 mm
Cable Preparation length, output side7.0…9.0 mm



Dimension

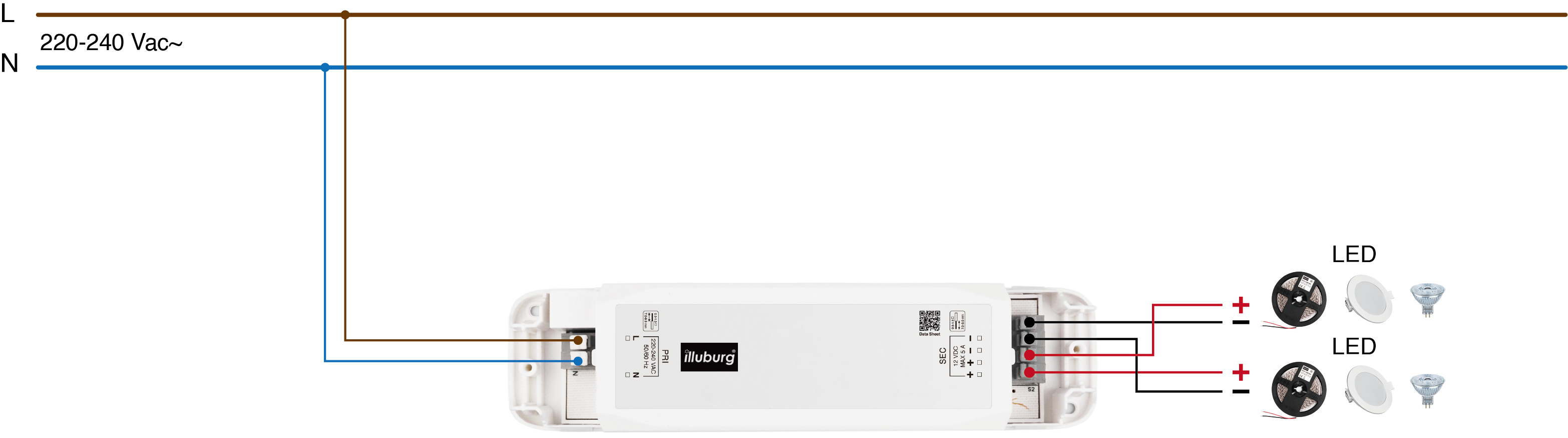

Connection



LED power supply LS-75V12S: LED transformer constant voltage, input 220 – 240 V (AC), output 12 V (DC), not dimmable, flicker-free, independent installation.
Power: Ideal for LEDs (strips, lamps, GU5,3 / MR16, G4 / MR11) up to 75 W, parallel connection possible. Our products can be used with full load.
Flicker-free: flicker-free light source provides better eye protection and guarantees high-quality video recording.

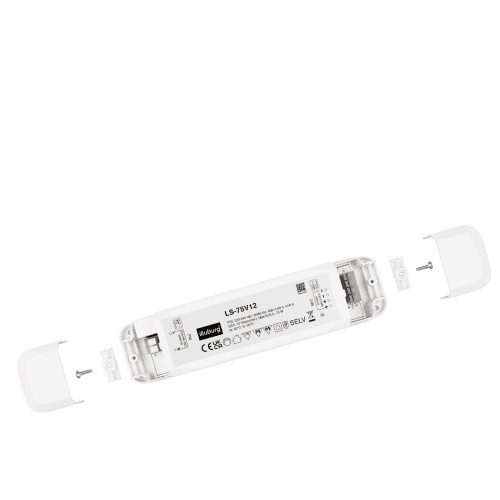

Assembly: dimensions 187 x 45 x 31 mm (L x W x H), ambient temperature (ta) -20 – +45 °C. Connection by spring loaded clamps, suitable for furniture installation.
Safety: Protection class IP20, protection device overload protection, surge protection, short circuit protection and overtemperature protection.
Quality: CE, furniture approval; Service life > 30.000 hours; Surface temperature (tc) 85°C.
huatec led transformer power supply driver transformator 12v 12 volt dc constant voltage same voltage flicker-free 75w 75 watt led strip lamp gu5.3 mr16 g4 mr11
LED transformer 12V 75W constant voltage.
